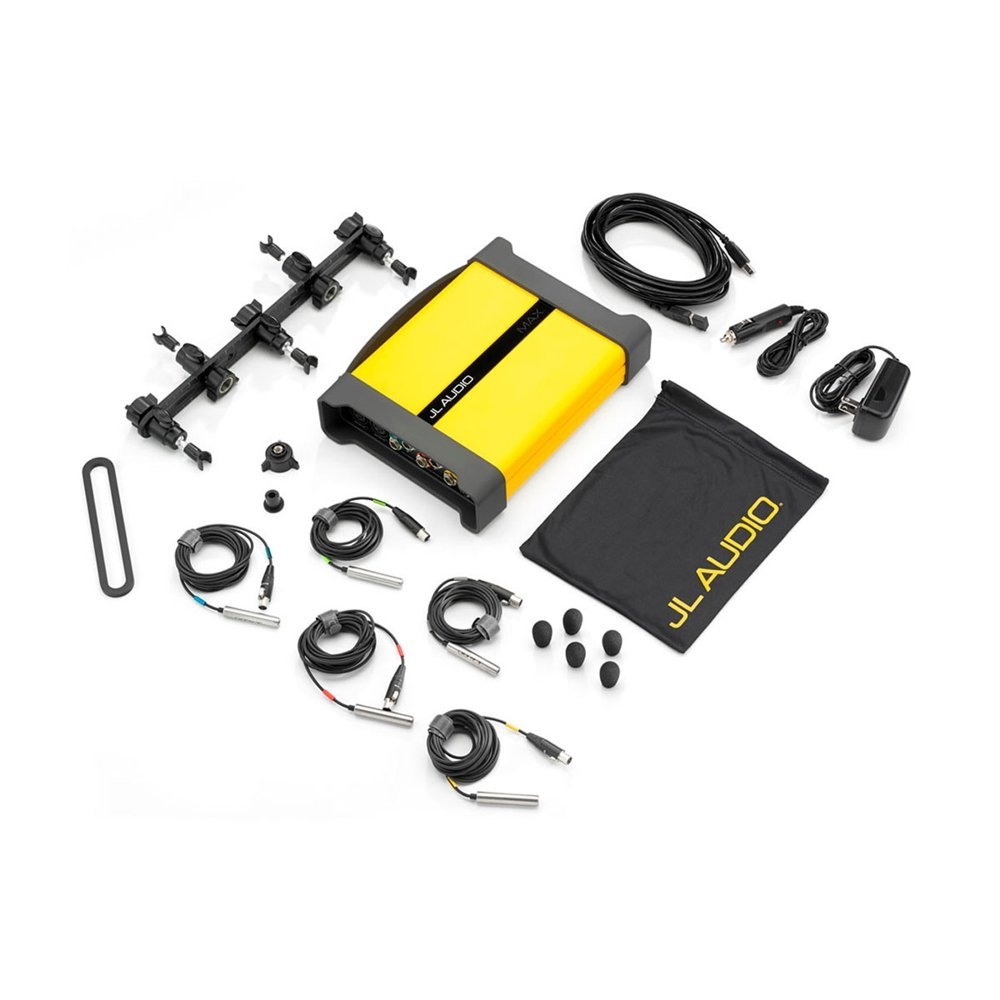

JL Audio MAX Audio Measurement System
Buy now, pay later & Finance Options
Find Local Store
Achieve perfect boat audio, even in real-world marine conditions.
Dial in your marine audio system to perfection with the JL Audio MAX Audio Measurement System. This professional-grade tool is your secret weapon for optimising sound on the water, precisely accounting for the unique acoustics and challenges of a moving boat in New Zealand conditions. Featuring an advanced 5-microphone averaging system, the MAX delivers accurate, real-world measurements that cut through ambient noise and environmental variables. You'll get results on par with far more expensive professional test systems, ensuring your boat's sound is nothing short of exceptional.
Forget guesswork; the MAX precisely analyses the three pillars of superior audio: Level, Frequency, and Time. This comprehensive analysis allows you to streamline the tuning of your audio DSP products with full detail, all in real-time, especially when paired with JL Audio's powerful Tun 4 software. Built for convenience, its integrated USB hub simplifies connections to your computer and DSP amplifiers – meaning less fumbling with cables on deck. Plus, with a 12 VDC nominal power supply, it integrates seamlessly into your boat's electrical system. Elevate your marine audio experience to a new level of clarity and power with the JL Audio MAX – a must-have for any serious boating audiophile.
JL Audio MAX Audio Measurement System Features:
- Optimised boat audio tuning for real-world conditions

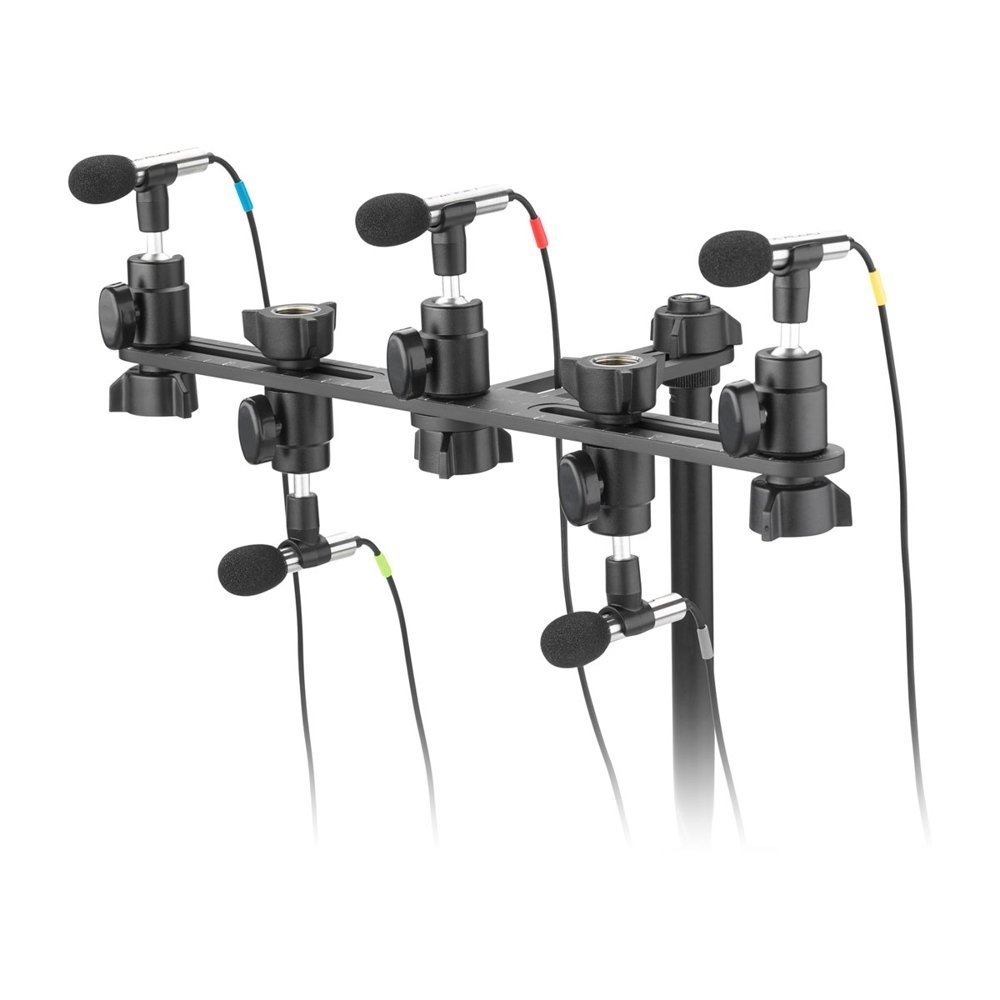

- 5-microphone averaging for precise marine sound analysis
- Professional-grade accuracy, exceptional value
- Detailed audio analysis: Level, Frequency, Time
- Real-time tuning with Tun 4 software

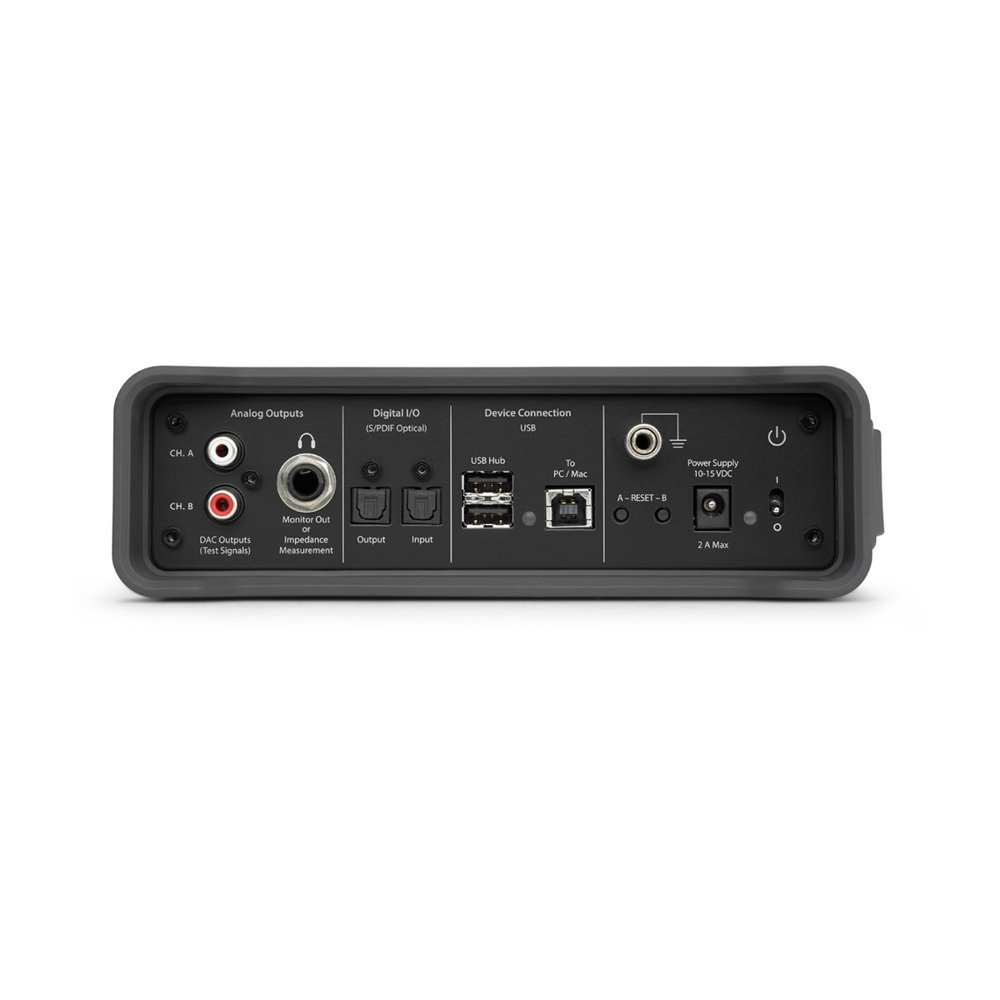

- Integrated USB hub for simplified connections
JL Audio MAX Audio Measurement System Specifications:
- Power Supply: 12 VDC nominal (10-15 VDC range)

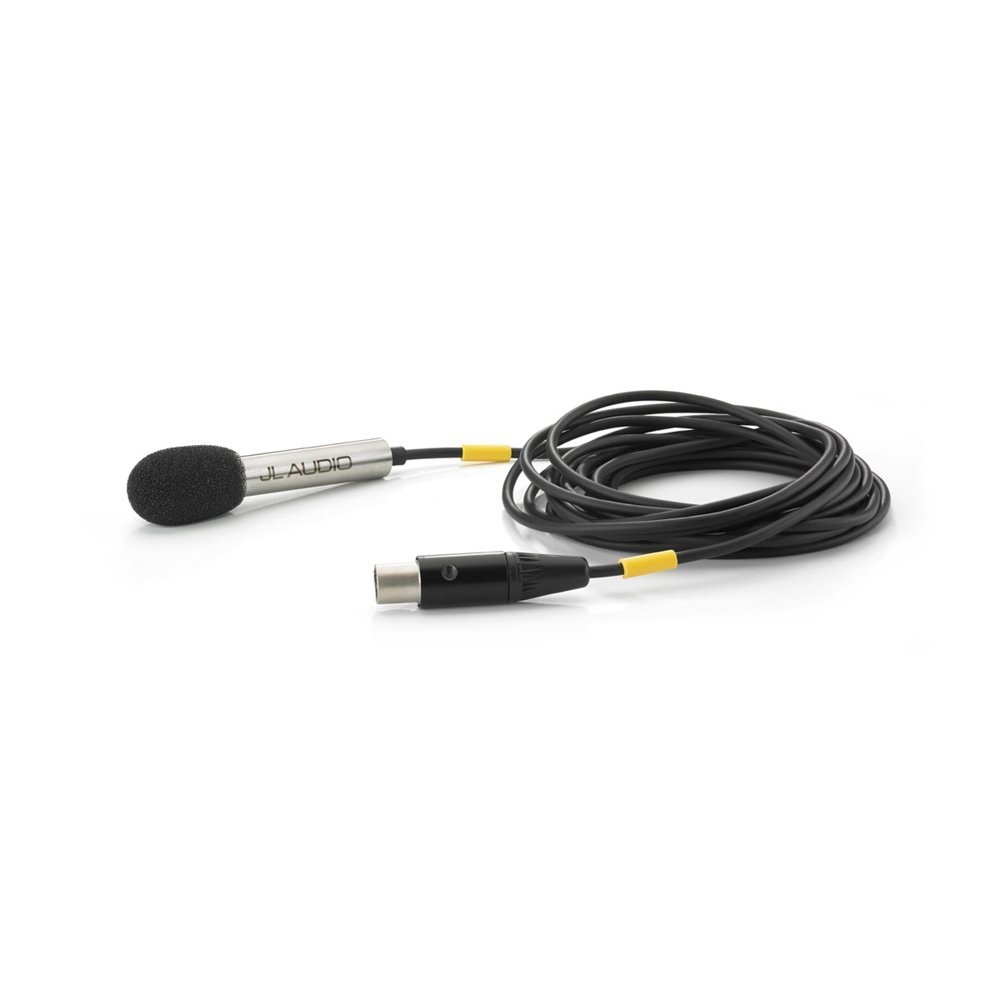

- Microphones: 5x 1/4" omnidirectional electret
- Max Input SPL (Microphones): 130 dB SPL @ 1 kHz

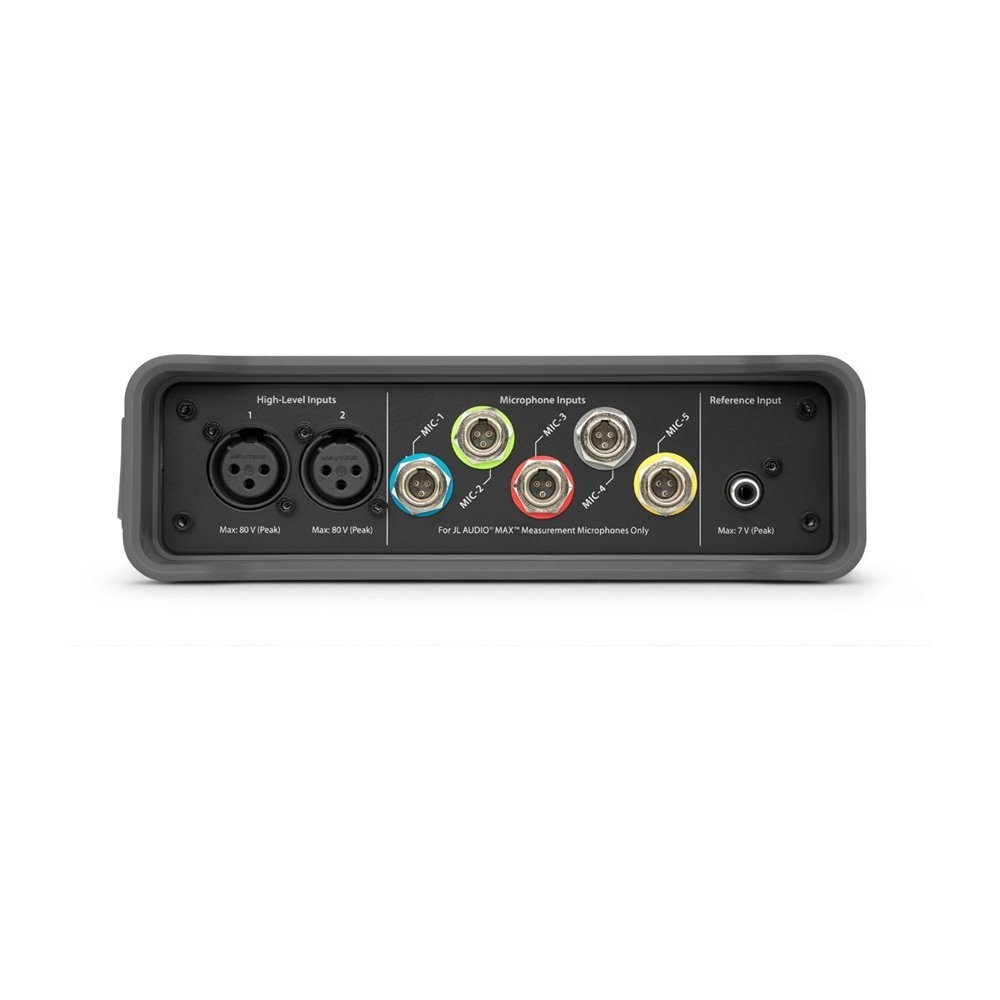

- High-level Inputs: 2x XLR (73 kΩ impedance)
- Unbalanced Mic Inputs: 5x Mini-XLR (2.2 kΩ impedance)
- Reference Input: RCA Balanced (approx. 100 kΩ impedance)
- Digital Input: S/PDIF Optical (TOSLINK)
- DAC Output: Unbalanced RCA (4 V RMS)
- Digital Output: S/PDIF Optical (TOSLINK)
