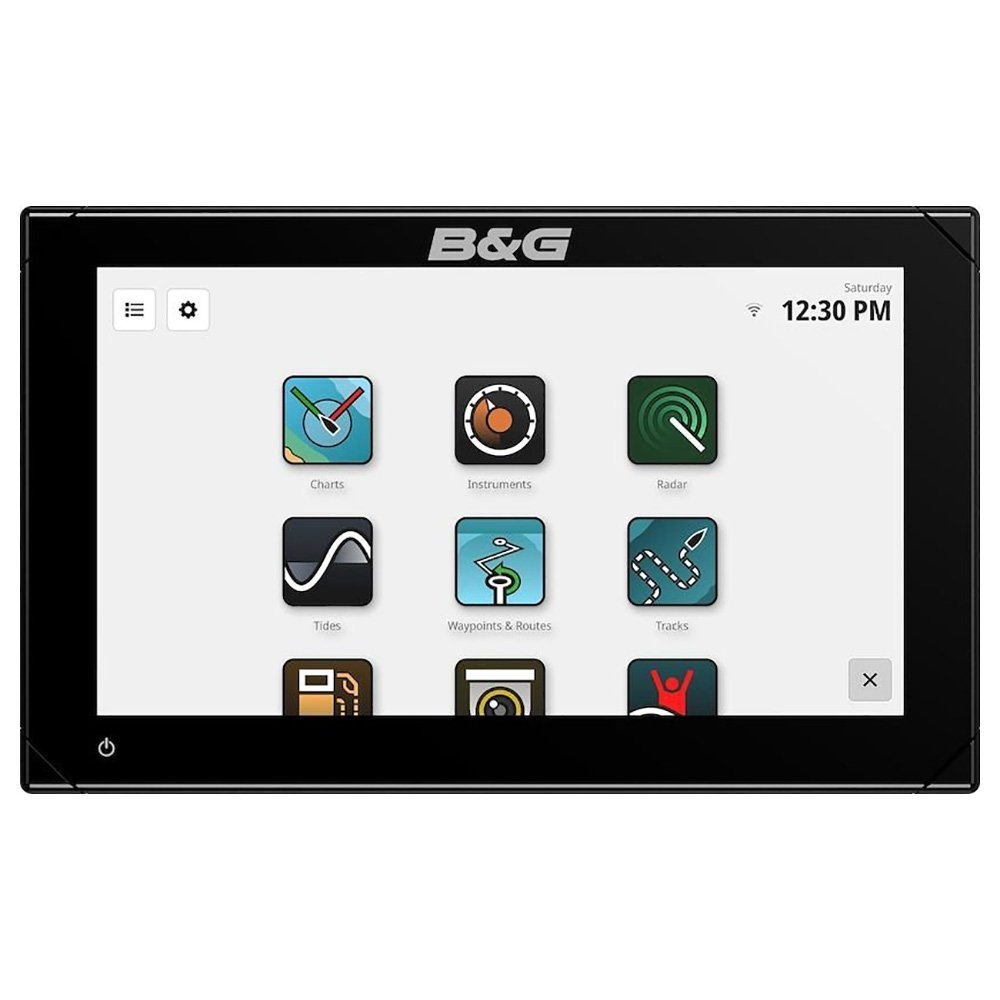

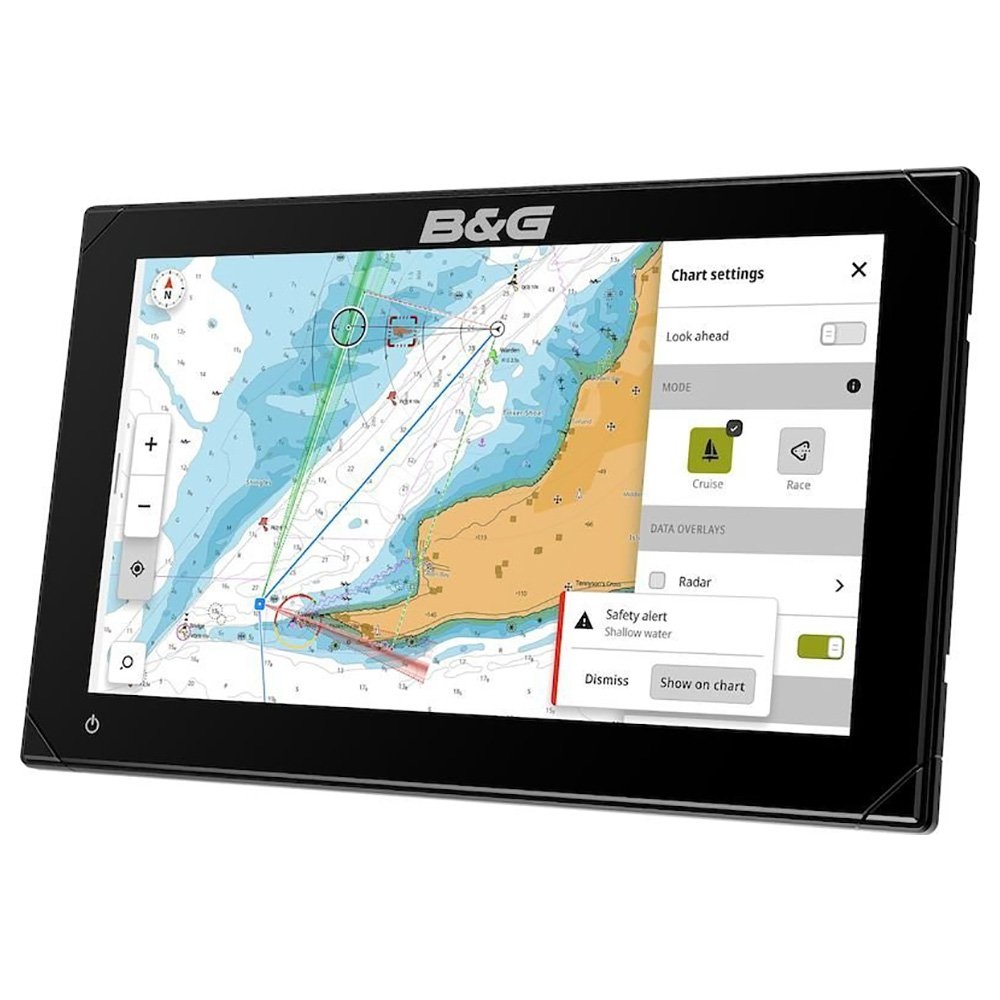

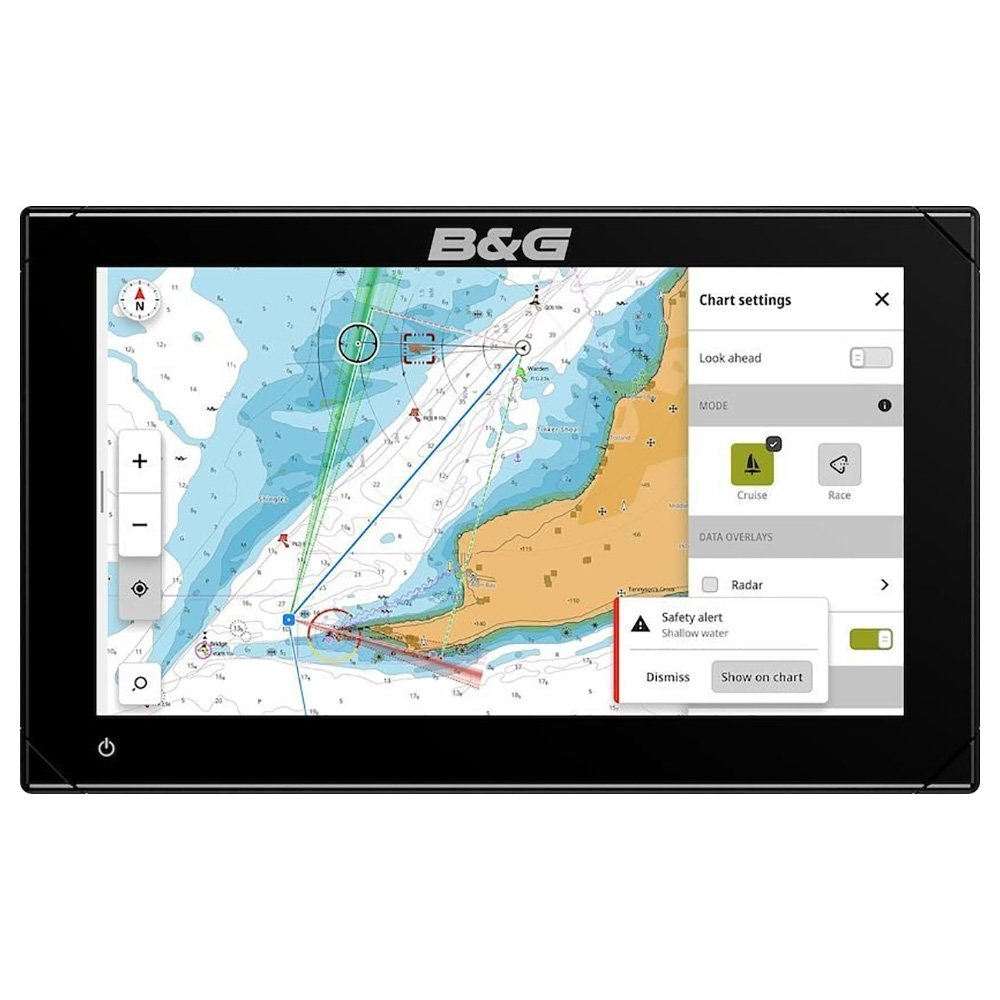

B&G Zeus S 9 Chartplotter
Deliver to:
New South Wales 2000,
AU
Estimated:
$0.00
Buy Now, Pay Later with
Find Local Store
Report incorrect product information
Intuitive and easy-to-use chartplotter
The B&G Zeus S 9 Chartplotter is B&G's most intuitive chartplotter for sailing yet. It comes with new and unique Sailing Modes with preset dashboards and data for your situation, along with many enhanced sailing features for a simpler sailing experience. All of which is backed up by clear and accurate C-MAP charting options for the safest and easiest navigation.
Sailing Modes
Improve your sailing with easy to interpret pointers from B&G's award-winning sailing features for cruising and racing, with updates to SailSteer, Laylines, StartLine, Routes, Racing and many more. C-MAP powered Safety Alerts guard against grounding and dangerous objects.
Mapping
C-MAP DISCOVER X and REVEAL X charts feature highly accurate data with simple viewing options for clear and easy navigation. Tides and currents projections improve trip planning and route plotting, further supported by our fastest-ever autorouting. Plus, get quick, one-touch access to POIs, tides, channels and more.
Integration
Zeus S is designed to be the heart of your sailing system. With built-in Wi-Fi, Ethernet, and NMEA 2000, it's easy to connect to Autopilots, Radar, Instruments and Sensors including wind, depth, speed, GPS and compass. Connecting with the B&G App offers further control and navigation options, both on and off the boat.
Intuitive
Zeus S makes data easy to read, and even easier to digest. The interface is designed to feel familiar – with a new Setup Wizard to get you started, and helpful feature tips to guide you along the way. Get hassle-free software updates, on- and off-the-water trip planning, and the same clear, accurate chart displays across your Zeus S, App and Web.
B&G Zeus S 9 Chartplotter Features:
- Sailing Modes for Cruising and Racing, providing exactly the data you need for your situation
- C-MAP-powered Safety Alerts feature, to avoid shallow water and dangerous objects on a collision course
- Includes B&G's award-winning sailing features, as well as unique new updates to Laylines, Routes, SailSteer and StartLine
- Compatible with C-MAP DISCOVER X and REVEAL X charts, featuring highly accurate data with simple viewing options to make light work of navigation
- High definition SolarMAX IPS touch screen, viewable from all angles and in all conditions, even with polarised sunglasses
- Full integration with HALO Radars, Triton2 Pilots, Triton2 and Nemesis instruments, sensors and more
- Set-up Wizard to get you up and running quickly
- B&G App integration - access data and charting both on and off the water*
- Wireless connectivity, plus full Ethernet and NMEA 2000® networking capability
- IP Video camera support
B&G Zeus S 9 Chartplotter Specifications:
Display
- Backlight colour: White
- Display resolution: 1280 x 800
- Display size: 9 inches
- Screen brightness: 1200 nits
- Viewing angles: 85° (top, bottom, left, and right)
Connectivity
- Bluetooth: Bluetooth 4.0 with support for Bluetooth Classic
- Ethernet ports: 1 port (5-pin yellow connector)
- Connectivity WiFi: IEEE 802.11b/g/n
- NMEA 2000 connectivity: 1 x NMEA 2000 Micro-C port, 1 LEN
- PC connectivity: No
- SD card storage: 1 MicroSD slot, 1 x USB (A)
- Video: IP Camera support
Cartography
- Charts supported: C-MAP Tile (CMT) Discover X, Reveal X
Autopilot
- Steering modes: Heading Hold, No Drift, Follow-up, Non-Follow-up, Nav
Electrical
- Power consumption max: 29.7 W
- Recommended fuse rating: 3A
- Supply voltage: 12V DC (10-17V DC)
Environment
- Humidity: IEC 60945 Damp heat 66°C at 95% relative (18 hr)
- Operating temperature range: -15°C to 55°C
- Shock vibration: 100,000 cycles of 20 G
- Storage temperature range: -20°C to 60°C
- Waterproofrating: IPx6 and IPx7
GPS
- Correction: 10 Hz high speed update (internal)WASS, MSAS, EGNOS, GLONASS
- GPS receiver channels: 32 Channels
- Position accuracy: Horizontal Accuracy 3m (9.8ft)
- Update rate: 10Hz
MFD
- AIS: Receive AIS data over NMEA 2000
- Autopilot: NAC-1, NAC-2, NAC3, NAC-D, H5000 compatible
- Digital switching: Czone
- GPS: Internal, 10Hz, WASS, MSAS, EGNOS
- Sonar compatibility: One 9 pin Xsonic Sonar port. Single channel CHIRP, 50/200 khz, HDI, Active Imaging
- Waypoints, Routes, Tracks: 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with upto 12,000 track points
Physical
- Compass safe: 50cm (1.7ft)
- Dimensions (W x H x D): 239 x 149 x 73 mm
- Mounting type: Bracket (supplied), panel mount or flush mount
- Weight: 2.2kg
Other
- Interface: Multi-touch screen
- Languages: English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Italian, Dutch, Norwegian, Portuguese (Brazil), Portuguese (Portugal) Swedish
- Warranty period: 2 Years
Note: *Mirroring and Control is currently not available on B&G Zeus S.
