Lewmar Atlantic Opening Portlight with Thin Valance
Deliver to:
New South Wales 2000,
AU
Estimated:
$0.00
Buy now, pay later & Finance Options
Find Local Store
Report incorrect product information
Durability with style

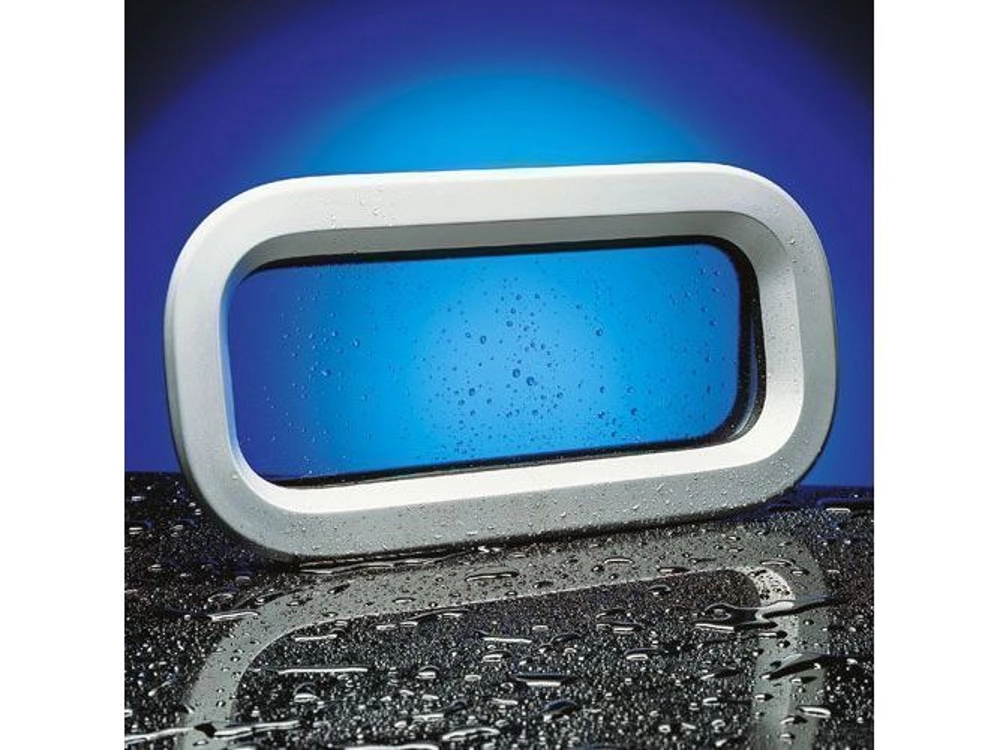

The Lewmar Atlantic Opening Portlight features clean lines and a clear, acrylic window housed in an attractive aluminium frame. This extensive range comes complete with flyscreens and friction hinges, constructed with the exceptional style and durability Lewmar is known for.
Lewmar Atlantic Opening Portlight Features:
- Clear acrylic window
- Attractive aluminium frame
- Clean lines
- Friction hinges
- Supplied with flyscreens as standard
Lewmar Atlantic Opening Portlight Specifications:
| Size | X (Width) | Y (Length) | Z (Height) | R (Radii) | X1 (Cut-out width) | Y1 (Cut-out length) | R1 (Cut-out radii) |
|---|---|---|---|---|---|---|---|
| 10 | 174mm | 304mm | 6mm | 71mm | 154mm | 284mm | 61mm |
| 30 | 200mm | 400mm | 6mm | 71mm | 180mm | 380mm | 61mm |
| 32 | 200mm | 400mm | 6mm | 100mm | 180mm | 380mm | 90mm |
| 40 | 200mm | 480mm | 6mm | 71mm | 180mm | 460mm | 61mm |
| 60 | 200mm | 600mm | 6mm | 71mm | 180mm | 580mm | 61mm |
Lewmar Atlantic Opening Portlight Fitting Guide
