Trojan Trailer Taper Leaf Spring Kit

Ensure proper suspension

Leaf springs are an integral part of your trailer's suspension system. These tough pieces allows your suspension to move with the bumps in the roadway so that the energy is not transferred from the wheels to the chassis, ensuring a smooth ride.

Whether you're building your own boat trailer, replacing worn out or broken leaf springs or looking to upgrade, the Trojan Trailer Taper Leaf Spring Kit comes with everything you need to get you sorted for your next travel. These Trojan springs are made with one leaf tapered from the centre to each end. Since leaf springs work in pairs, they typically wear out in pairs, so replacing both springs at the same time helps ensure proper suspension performance. This kit comes with 1 pair leaf springs, hangers, shackle bolts, slippers and galvanised U-bolt plates, plus 4x galvanised U-bolts.

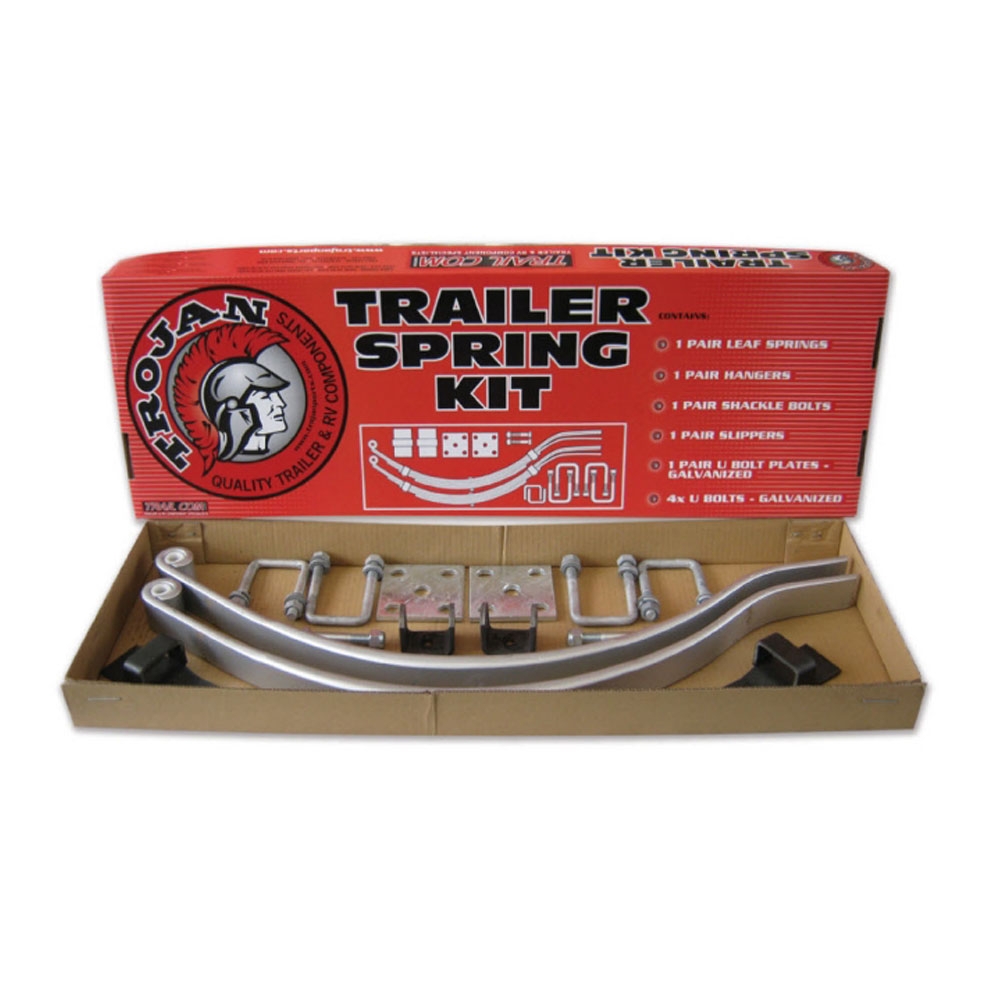

Trojan Trailer Taper Leaf Spring Kit Features:

• 1 Pair leaf springs
• 1 Pair hangers
• 1 Pair shackle bolts
• 1 Pair slippers
• 1 Pair U bolt plates - galvanised
• 4x U bolts - galvanised

Trojan Trailer Taper Leaf Spring Kit Specifications:

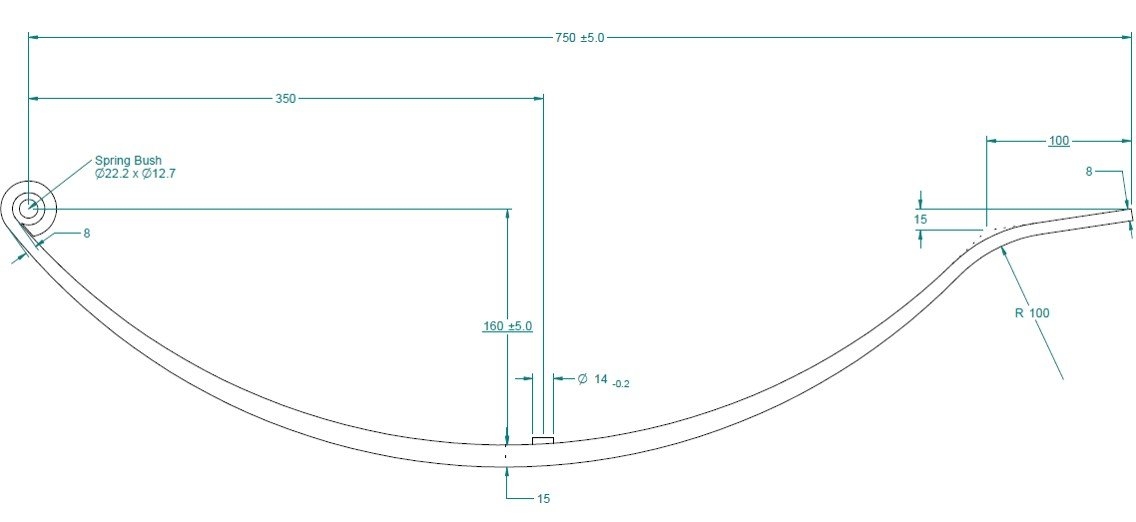

Part No:	Capacity per Pair:	No of leaves & sizes:	O/A length / Eye to center bolt:	Eye Dia:
T267060	600kg	1 - 45mm Taper	65 - 350mm	1/2 inch
T267100	1000kg	1 - 45mm Taper	765 - 350mm	1/2 inch
T267140	1400kg	1 - 45mm Taper	765 - 350mm	1/2 inch
