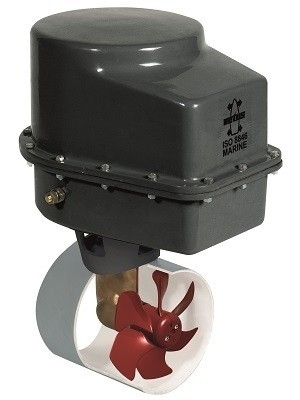

VETUS Ignition Protected Bow Thruster 160kgf 24v
Deliver to:
New South Wales 2000,
AU
Estimated:
$159.99
Buy now, pay later & Finance Options
Find Local Store
Report incorrect product information
Specifications:
| Voltage (V) | 24 V |
|---|---|
| Ignition protection | Yes |
| Thrust (N / kgf) | 700 / 70 |
| Power (kW) | 4 |
| Motor, reversible D.C. | No |
| Internal tunnel diameter (mm) | 185 |
| Weight (kg) | 22 |
| Current consumption (A) | 140 |
| Continuous operating time (min) | 5 |
| Max. operating time (minutes) | No |
| Main fuse 'slow blow' (A) | 100 |
| Batteries 12 V, min./max. Ah | 2x55 / 2x70 |
| Battery cables, length pos./neg. cables (m/mm) | 0-20 / 25 |
| Battery main switch: model BATSW / type BPMAIN | 250 / 24 |

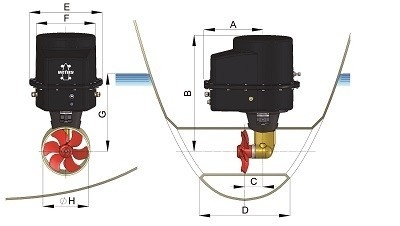

| Size A in mm, see drawing | 254 |
| Size B in mm, see drawing | 586 |
| Size C in mm, see drawing | 108 |
| Size D min./max. in mm, see drawing | 500/1000 |
| Size E in mm, see drawing | 318 |
| Size F, diameter in mm, see drawing | 280 |
| Size G min. in mm, see drawing | 250 |
| Size H, diameter in mm, see drawing | 250 |
Product Data Sheet
Note: This listing is for the VETUS Bow Thruster ONLY. This is not a complete kit. Tunnel, data cable, control panel, fuse and fuse holder is still needed. Please note thruster packages are spec’d up individually to suit each customer’s needs. Please contact a Marine Deals sales specialist to ensure you get the complete and ideal components for your build. Contact our sales team via: 0800 633 257 / 09 281 3150 (NZ) or 1800 154 713 (AU)
