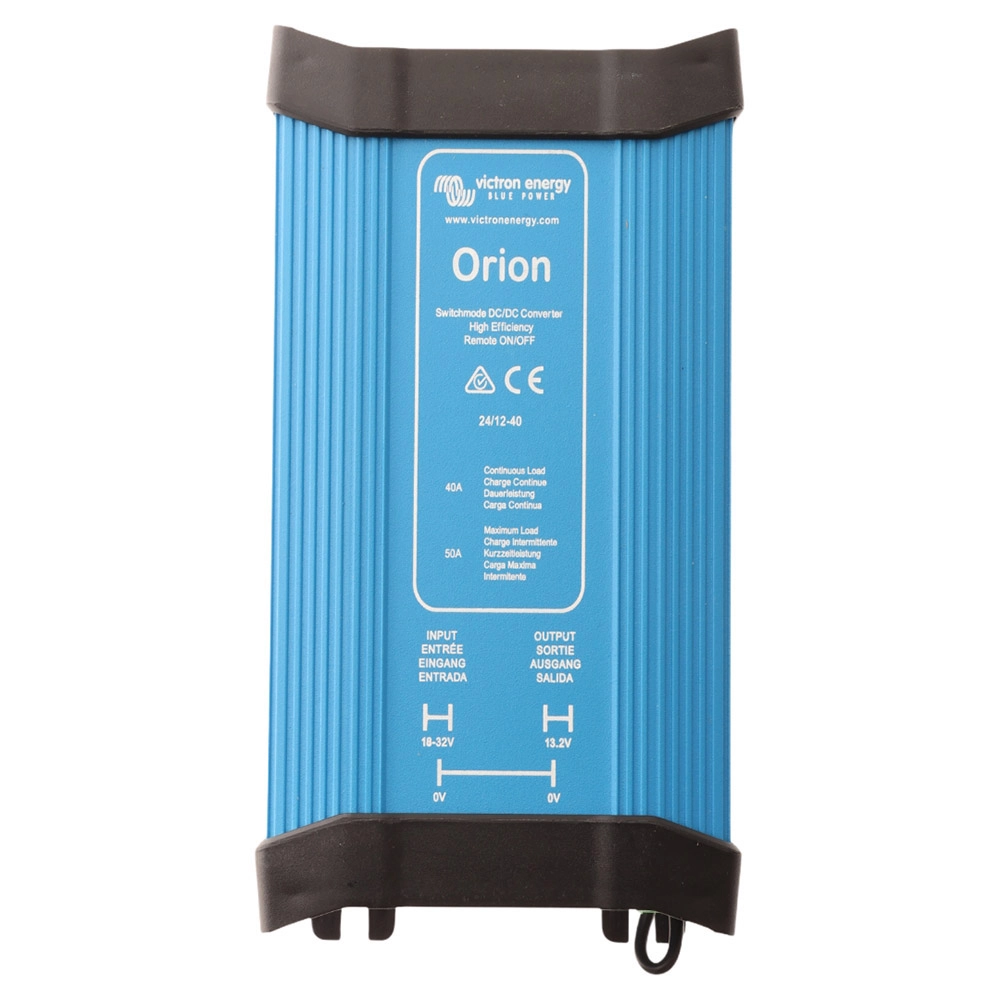

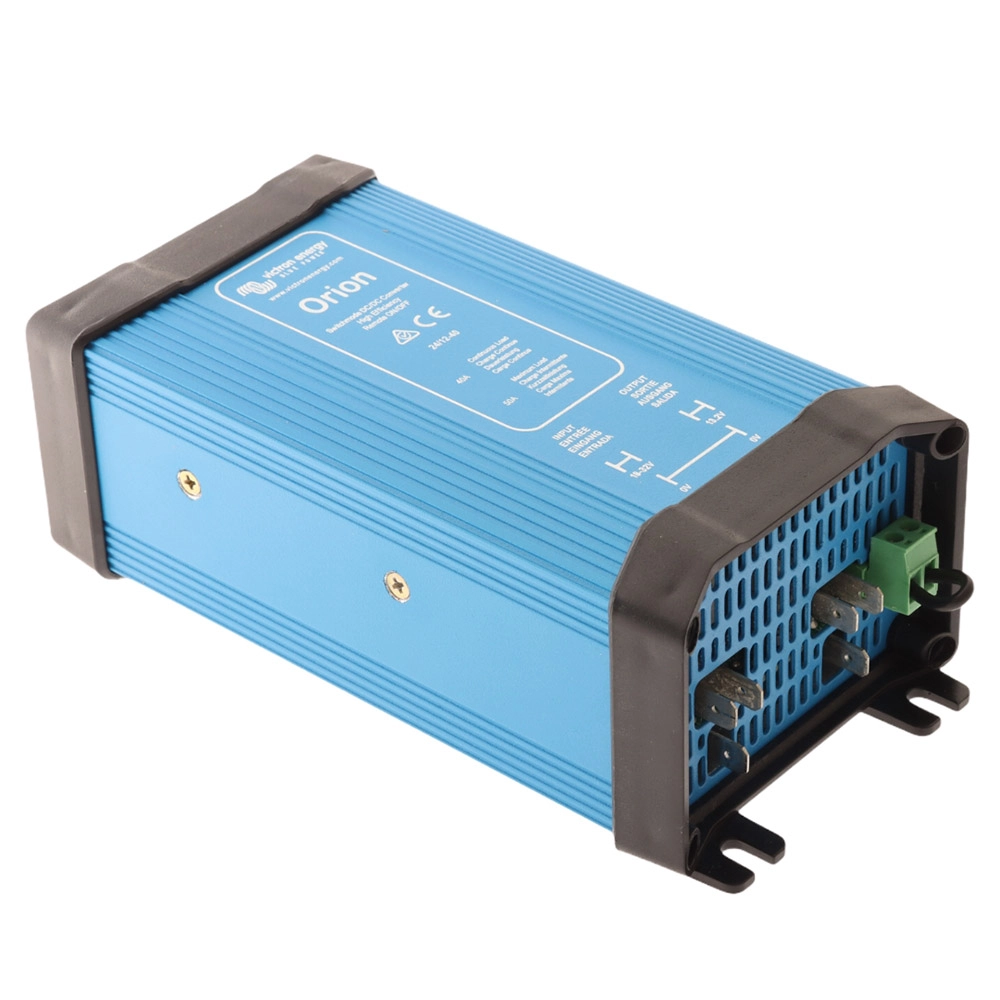

Victron Orion DC/DC Converter Non Isolated High Output 24V - 12V 40A Fixed Output
Special Order
Victron Orion DC/DC Converter Non Isolated High Output 24V - 12V 40A Fixed Output
Deliver to:
New South Wales 2000,
AU
Estimated:
$13.99
Buy now, pay later & Finance Options
Find Local Store
Report incorrect product information
Powerful and reliable
The Victron Orion DC/DC Converter delivers the power, range and performance Victron converters are known for. This converter features a remote on-off connector which eliminates the need for a high current switch in the input wiring. The remote can be operated with a low power switch or by the engine run/stop switch. Make sure you install a reliable converter, grab the Victron Orion DC/DC Converter today!
Victron Orion DC/DC Converter Features:

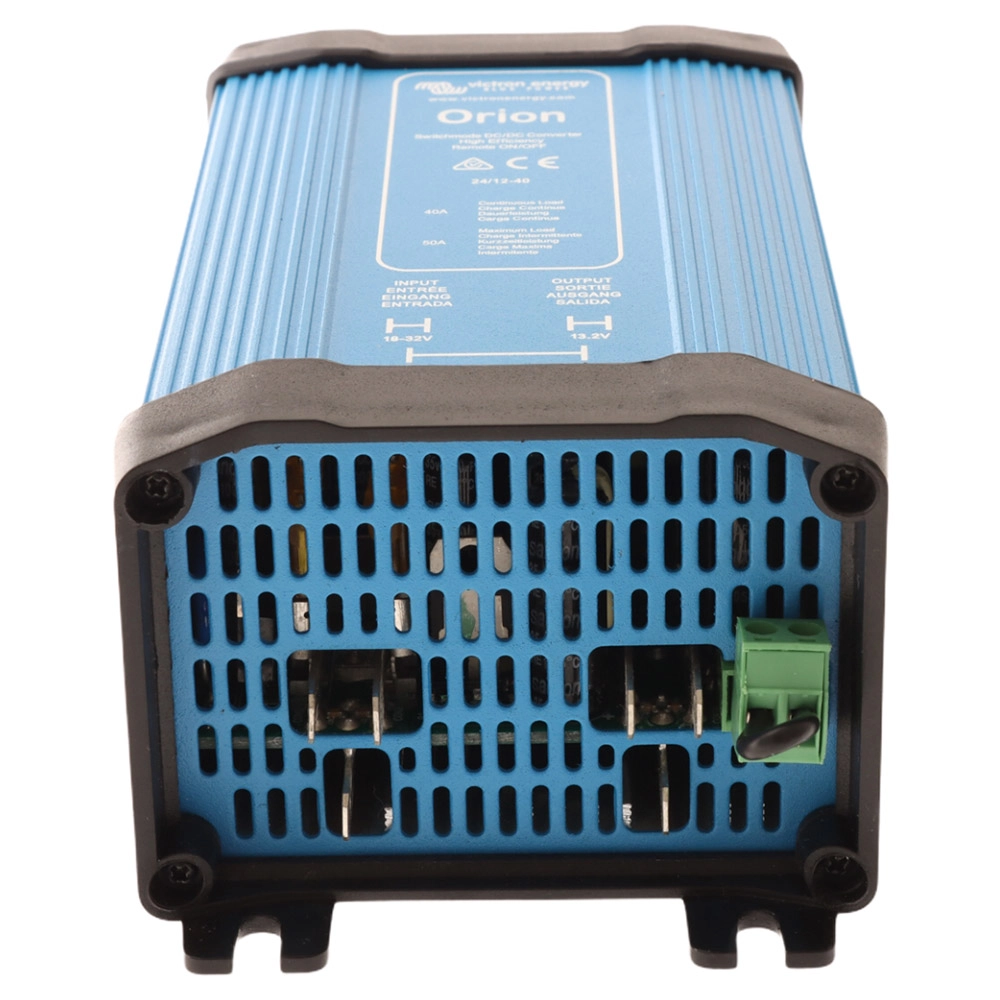

- Remote on-off connector
- Non isolated high fxed output voltage
Victron Orion-TR Isolated DC/DC Converter Specifications:
- Input voltage range: 18-35V
- Under voltage shut down: 14V
- Under voltage restart: 18V
- Nominal output voltage: 12.2V
- Output voltage: 13.2V
- Efficiency: 95 percent
- Continuous output current: 40A
- Max. Output current: 55A
- Fan assisted cooling (temp. controlled): Yes
- Off load current: < 20mA
- Operating temperature range (derate 3 percent per deg C above 40deg C): 20 to +55deg C

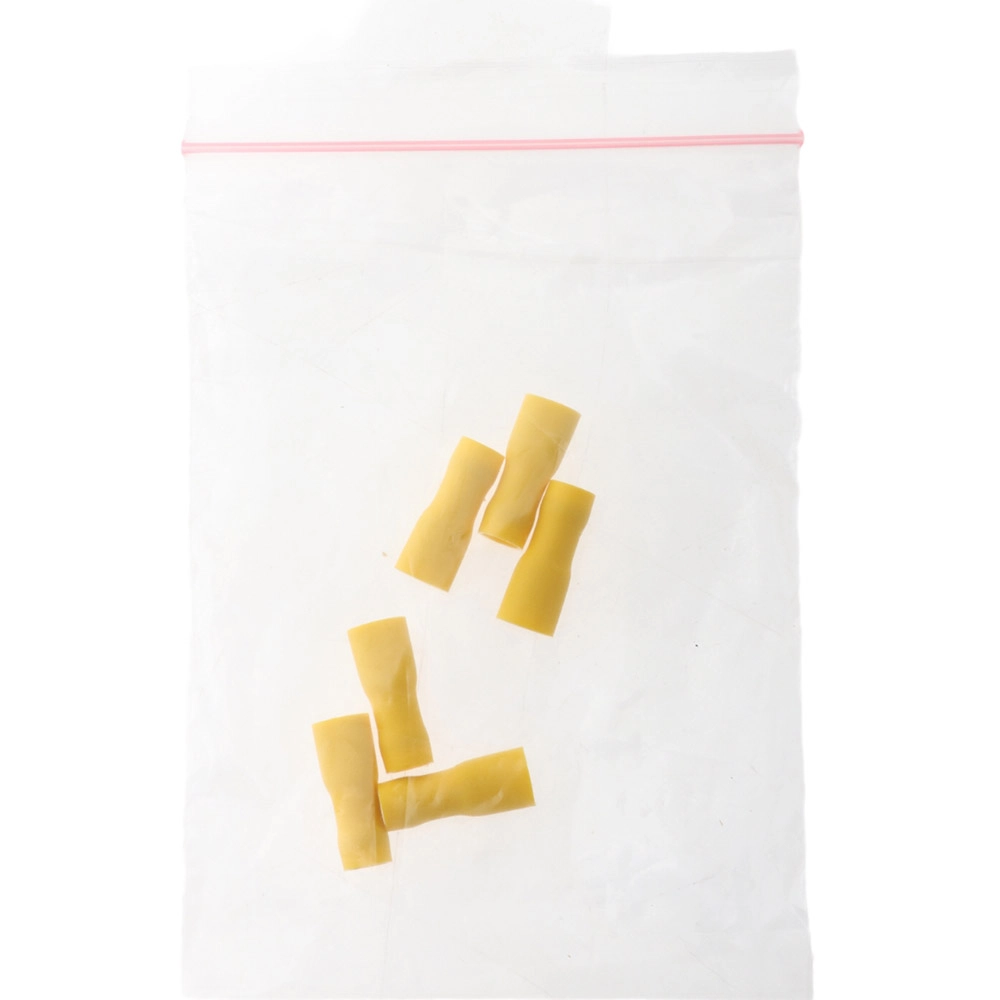

- DC connection: Double Faston tabs 6.3 mm
- Weight kg (lbs): 0.85 (1.9)
- Dimensions (H x W x D): 65 x 88 x 185mm
- Safety: EN 60950
- Emission: EN 61000-6-3, EN 55014-1
- Immunity: EN 61000-6-2, EN 61000-6-1, EN 55014-2
- Automotive Directive: ECE R10-4
