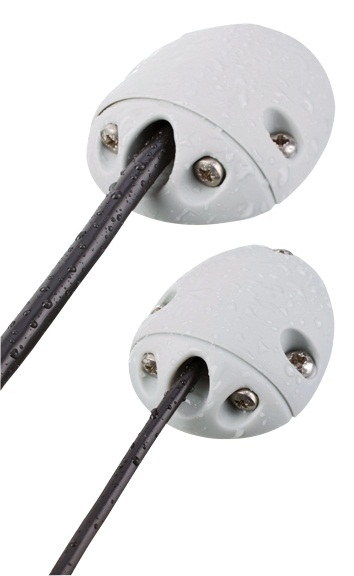

Newmar RA Series Right Angle Waterproof Feed-Thru Fittings
Newmar RA Series Right Angle Waterproof Feed-Thru Fittings
Deliver to:
New South Wales 2000,
AU
Estimated:
$13.99
Buy now, pay later & Finance Options
Find Local Store
Report incorrect product information
Durable and convenient
The Newmar RA Series Right Angle Waterproof Feed-Thru Fittings allow you to route cables at 90° through vertical and horizontal surfaces with wall hugging low profile design that keeps cable secured close to the surface reducing intrusion with personnel or other equipment/cables.
Moulded of nylon, the sculpted shape has no sharp edges and provides smooth 90° radius feed-thru bend in cables without kinks. And what's more it so easy to install - simply slide silicone compression rings on cable, mount base piece with waterproof gasket then attach sealing end cap to create an IP65 waterproof seal. Choose from three models to accommodate wide range of cable diameters.
Note: The cable must be routed without end connector attached.
Newmar RA Series Right Angle Waterproof Feed-Thru Fittings Features:
- Route cables at 90° through vertical and horizontal
surfaces
- Wall hugging low profile design
- Keeps cable secured close to the surface
- Nylon moulded
- Provides smooth 90° radius feed-thru bend in cables without
kinks
- Easy installation
- IP65 waterproof seal
Newmar RA Series Right Angle Waterproof Feed-Thru Fittings Specifications:
| Model | Cable Diameter Range (Inches) | Dimensions (Inches) |
|---|---|---|
| RA-1 | 0.1 - 0.25 | 2.17 x 1.65 x 0.63 |
| RA-2 | 0.27 - 0.35 | 3.23 x 2.44 x 0.95 |
| RA-3 | 0.39 - 0.47 | 3.23 x 2.44 x 0.95 |
