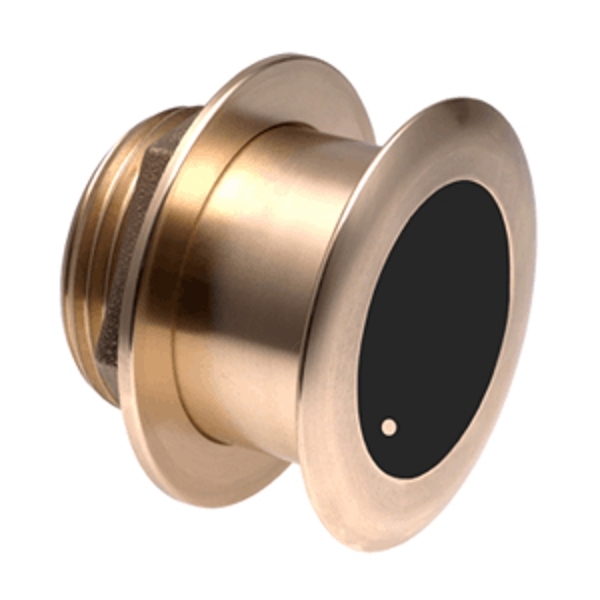

Airmar B175C-0-HW-MM Wide Beam CHIRP Thru-Hull Transducer 0-deg Tilt Mix and Match

Get better signal

This range of Airmar B175 CHIRP Thru-Hull Transducer High-Frequency Depth/Temp represents the next generation of technology that will allow fishermen to unlock new secrets in fishfinding. Echosounder operation away from the traditional 50 kHz and 200 kHz has proven that different fish species return better signals at various frequencies. Airmar's Broadband Transducers are capable of operating over a wide (or Broad) frequency band ranging from 25 kHz to 60 kHz and from 130 kHz to 210 kHz.

Mix and Match
Be able to use different fishfinder units conveniently without the need to replace your transducer. The Airmar Mix and Match sytem is a simple plug and play solution that lets you use a generic Airmar transducer with different fishfinder manufacturers' connectors. No need to buy and install a new transducer unit just to match your fishfinder! This system can also be used to replace lost or damaged cables. So if you're using fishfinders of different brands, the Airmar Mix and Match Transducer Cable System is the way to go.

Airmar B175 CHIRP Thru-Hull Transducer Depth/Temp Features:

• 12 m (40') cable

• Depth and fast-response water-temperature sensor

• Same elements and performance as the B765LH/LM offered in a low-profile housing

• Bronze transducer housing

• Boat Size: Up to 11 m (36')

• Hull Type: Fibreglass or wood

• Useable shaft length ~ 71mm (2.80”)

• High-Frequency (H)
  High—CHIRPs from 130 kHz to 210 kHz, 10° to 6° beamwidth
  80 kHz of total bandwidth from one transducer
  Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth

• Mix and Match Connector


Airmar B175CW Wide Beam CHIRP Thru-Hull Transducer Depth/Temp Specifications:

• Ideal for marking baitfish and gamefish in shallow to mid-water depths of 300ft - 600ft

• Depth and fast-response water-temperature sensor

• High—CHIRPs from 150 kHz to 250 kHz 25° constant beamwidth

• 80 kHz of total bandwidth from one transducer

• Boat Size: Up to 35’

• Hull Type: Fiberglass or wood


Airmar B175 CHIRP Thru-Hull Transducer High-Frequency Depth/Temp Brochure
