AC Master panels
30 Amp master breaker. Panel size: 5 1/4 x 3 3/4 (13.3 X 9.5 cm.), Weight: 1 lb (.5 Kg.)
Essential control/protection whenever AC from shorepower or generators is on board. A double pole master breaker with power on indicator light protects both hot and neutral legs of the AC circuit. A reverse polarity light provides clear warning when wiring is reversed and poses a shock hazard. Single pole branch circuit breakers (Model AC-IX) and individual ?ON? indicator lights provide control and protection of various AC loads. For 115/230 VAC applications ? see ratings note. A label set of common on-board circuits is provided.

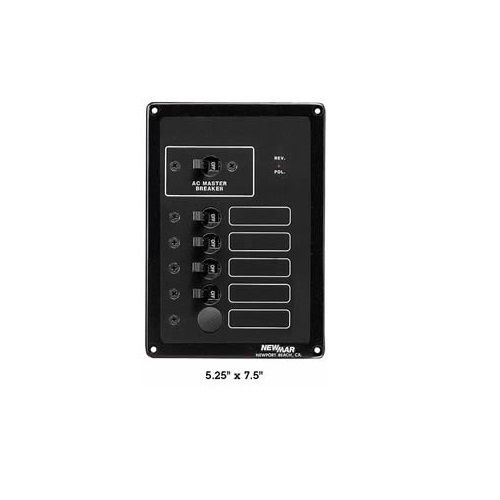

AC-IX:
30 amp master breaker , 5 branch circuit capacity 4 installed
standard 1-10A, 2-15A, 1-20A, or specify. LS-I Label set included.
Panel size: 5 1/4 x 7 1/2, (13.3 X 9.5 cm.,) Weight: 2 lbs., (.9
Kg.)
30 Amp master breaker. Panel size: 5 1/4 x 3 3/4 (13.3 X 9.5 cm.), Weight: 1 lb (.5 Kg.)
| Model | Inches | Centimeters |
|---|---|---|
| AC-IX | 4 X 6 | 10.2 X 15.2 |
| AC-II | 4 X 2.5 | 10.2 X 6.4 |
