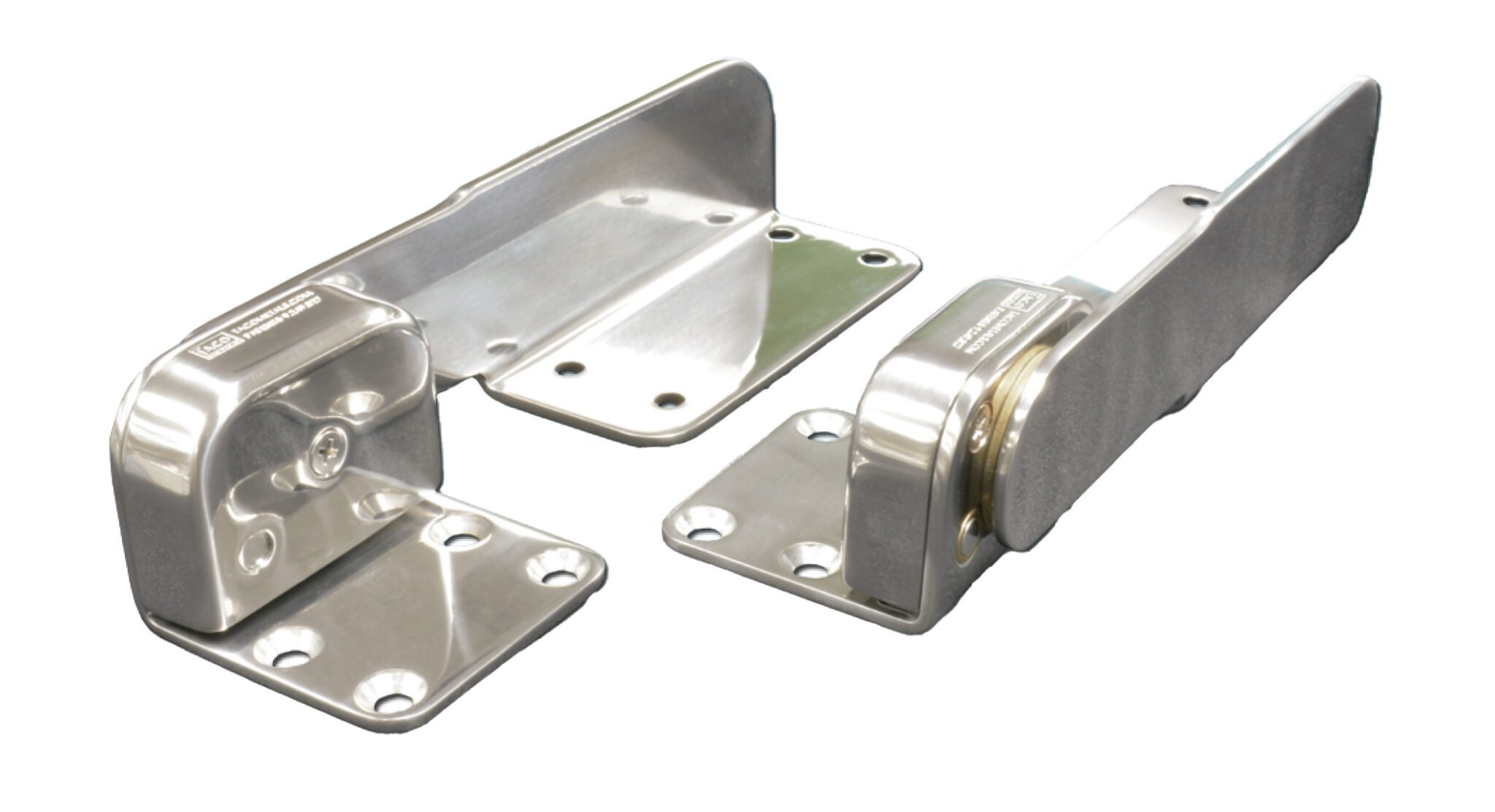

Taco Marine Command Ratchet Hinge 9 3/8in
Taco Marine Command Ratchet Hinge 9 3/8in
Buy now, pay later & Finance Options
Find Local Store
Constructed from high-grade stainless steel and brass, the Command Ratchet Hinge is ideal for sun pads, bolsters and lounge backrests.
This heavy-duty specialty hinge has a 15 degrees locking inclination and ratchets up to four positions.
Highly polished marine-grade stainless-steel Type-304.
All brass bearings for durability.
Meets ABYC H-31 standards class B application, 250lb ft of torque load for pair.
15 degrees locking inclination increments, starting at 30 degrees .
Easily adaptable to many applications.
Designed for up to 4" thick cushions.
Returns to horizontal position at 100 degrees .
Countersunk for #10 fastener or 1/4-20 bolt.
Sold in pairs.
5-year limited warranty.
