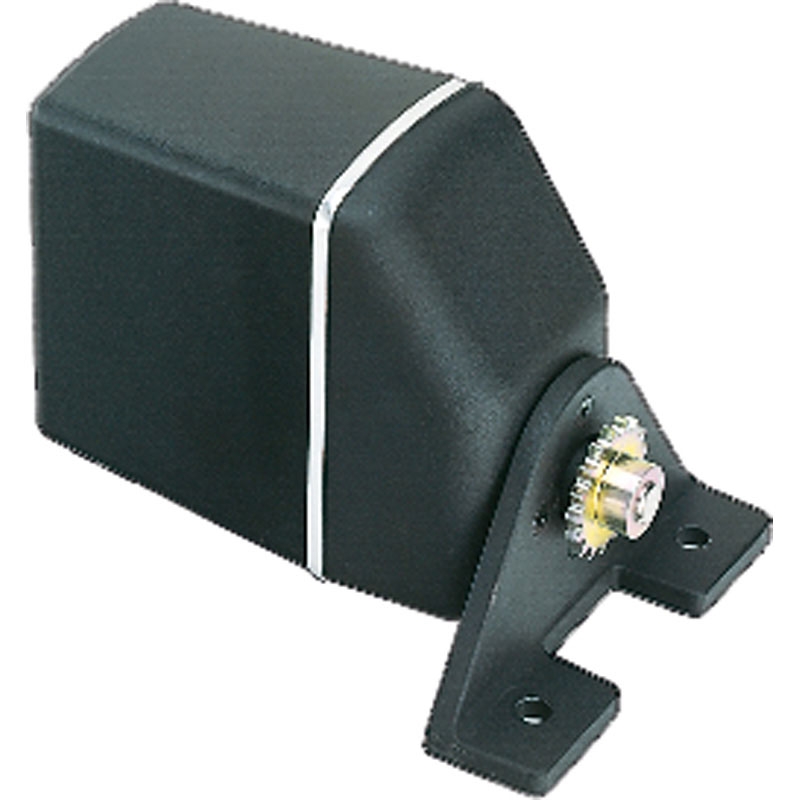

Raymarine Type 2 Rotary Drive 24V

Click on the image above to view full picture

Details

Details

The Raymarine Type 2 Rotary Drive 24V is designed for power and sailboat systems that can be driven from the helm position through a chain and sprocket (e.g. cable and rod steering system). The outstanding design of the Raymarine rotary drive unit provides smooth, powerful autopilot controlled steering with quiet operation.

Raymarine Type 2 Rotary Drive 24V Specifications:
  • Maximum boat displacement: 20,000 kg
  • Peak output torque: 34 nm
  • Maximum shaft speed: 33 rpm
  • Recommended hard-over times (no load): 10 seconds
  • Power consumption: 60-84 W
  • Corepack used: SPX-30

Note: Optional drive sprockets and modification to the steering chain may be required.
