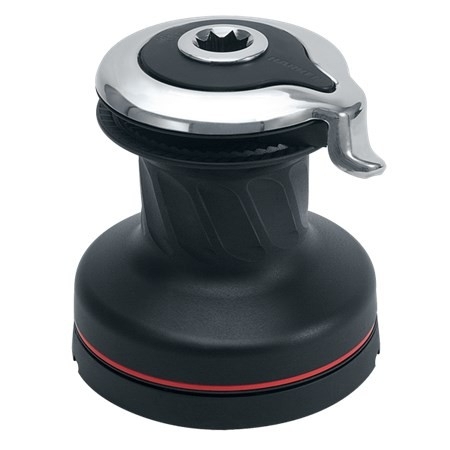

Harken 20 Aluminium Self-Tailing Radial Winch

Light and strong winch for easy trimming

The Harken 20 Aluminium Self-Tailing Radial Winch is made for sailors who want a lightweight, extremely strong, and easy-to-operate winch with a lot of power. It features diagonal ribs on its drum to maximize gripping power and to greatly reduce line wear. When easing, the angle of the ribs stops your line from rising which prevents overrides. It also provides a smooth controlled release as the line exits the winch. Its self-tailing mechanism allows you to quickly and easily trim or raise sails. Plus, if you want to go electric, you can upgrade it to an electric winch. Install the Harken 20 Aluminium Self-Tailing Radial Winch on your boat to ease the task of trimming or raising your sails.

Harken 20 Aluminium Self-Tailing Radial Winch Features

• Winch top is completely stationary for safety
• Up to 50 percent lighter than comparable winches
• Radial Ribs on the drum for better grip and less wear on your line
• Self-tailing mechanism for quick and easy trimming or raising sails
• Can be upgraded to an electric winch

Harken 20 Aluminium Self-Tailing Radial Winch Specifications

• Material: Aluminium
• Configuration: Self-tailing
• Speed: 1
• Drum Diameter: 73mm
• Base Diameter: 137mm
• Height: 148mm
• Weight: 2.4kg
• Line Entry Height: 61mm
• Mimimun Line Diameter: 6mm
• Maximum Line Diameter: 12mm
• Fastener Circle: 110mm
• Fasteners: 6 SH mm
• Number of fasteners: 5
• Gear Ratio – 1: 2.76
• Power Ratio – 1: 19.20
• Available Power: Manual

Harken 20 Aluminium Self-Tailing Radial Winch Manual
