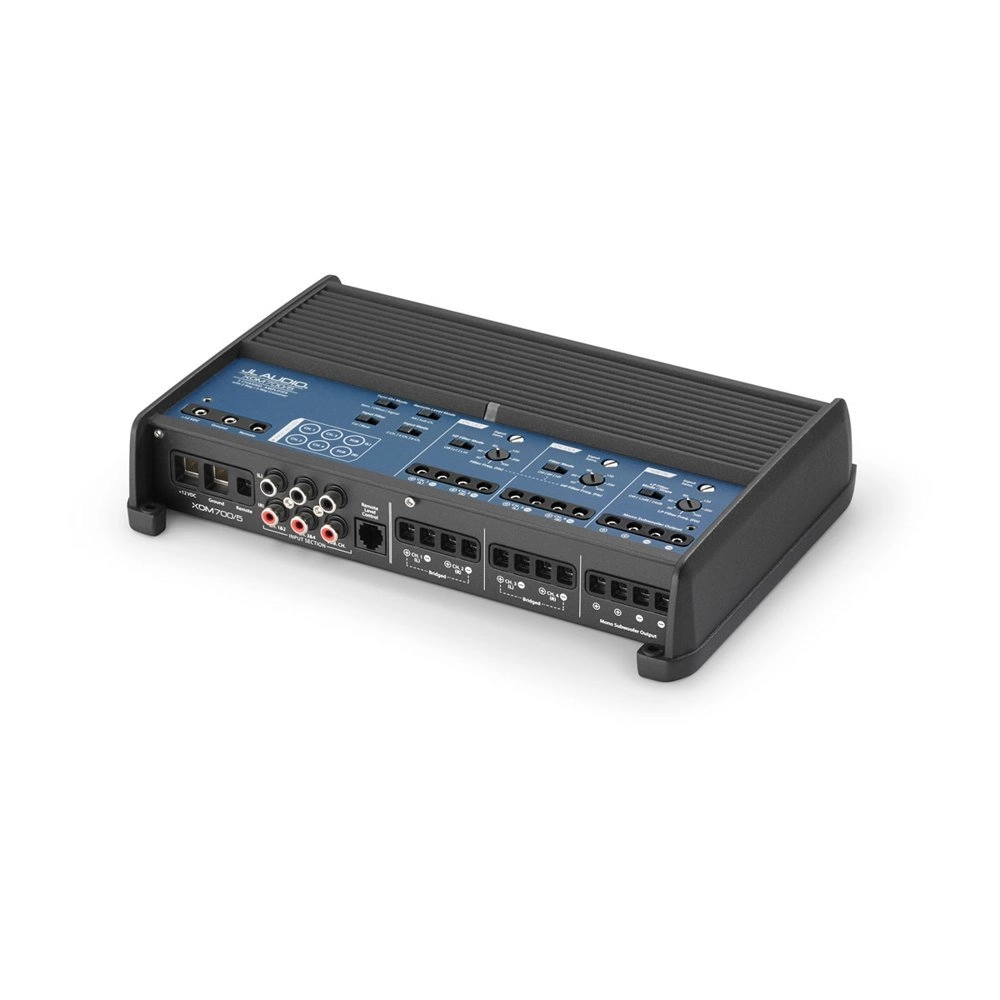

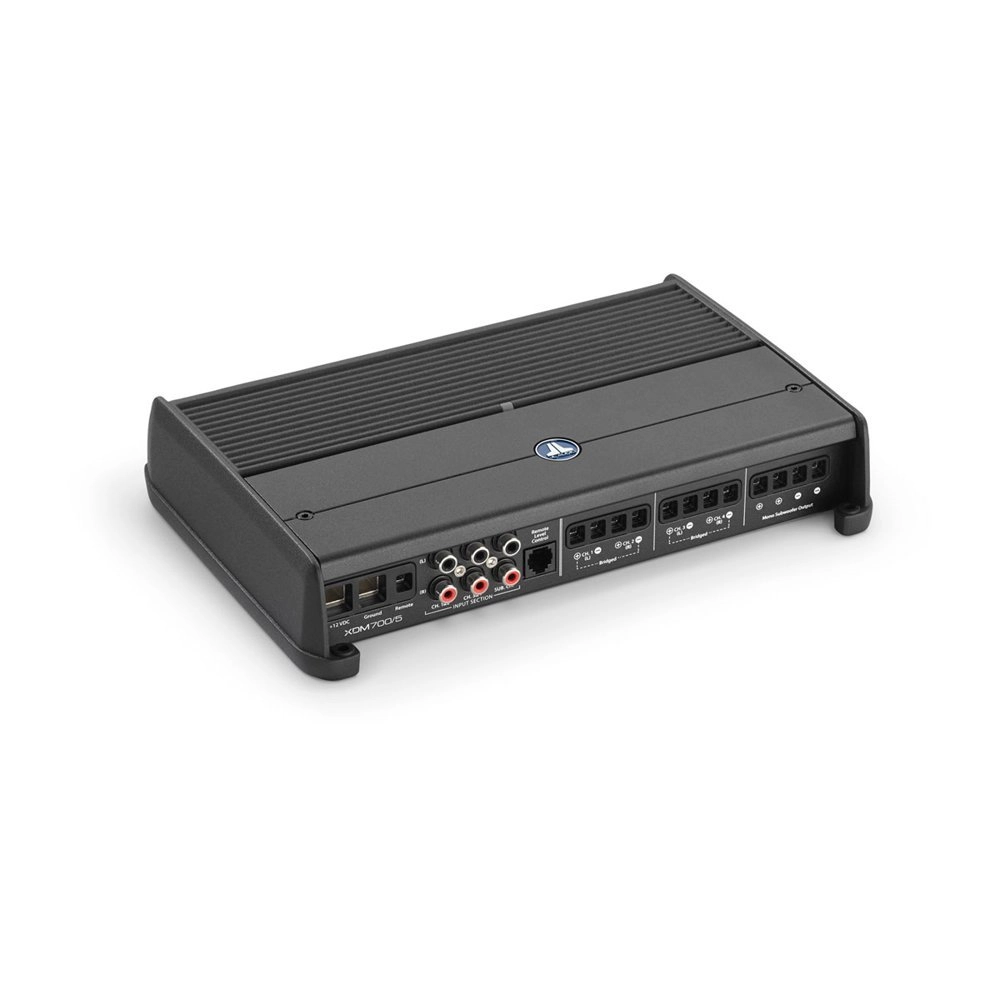

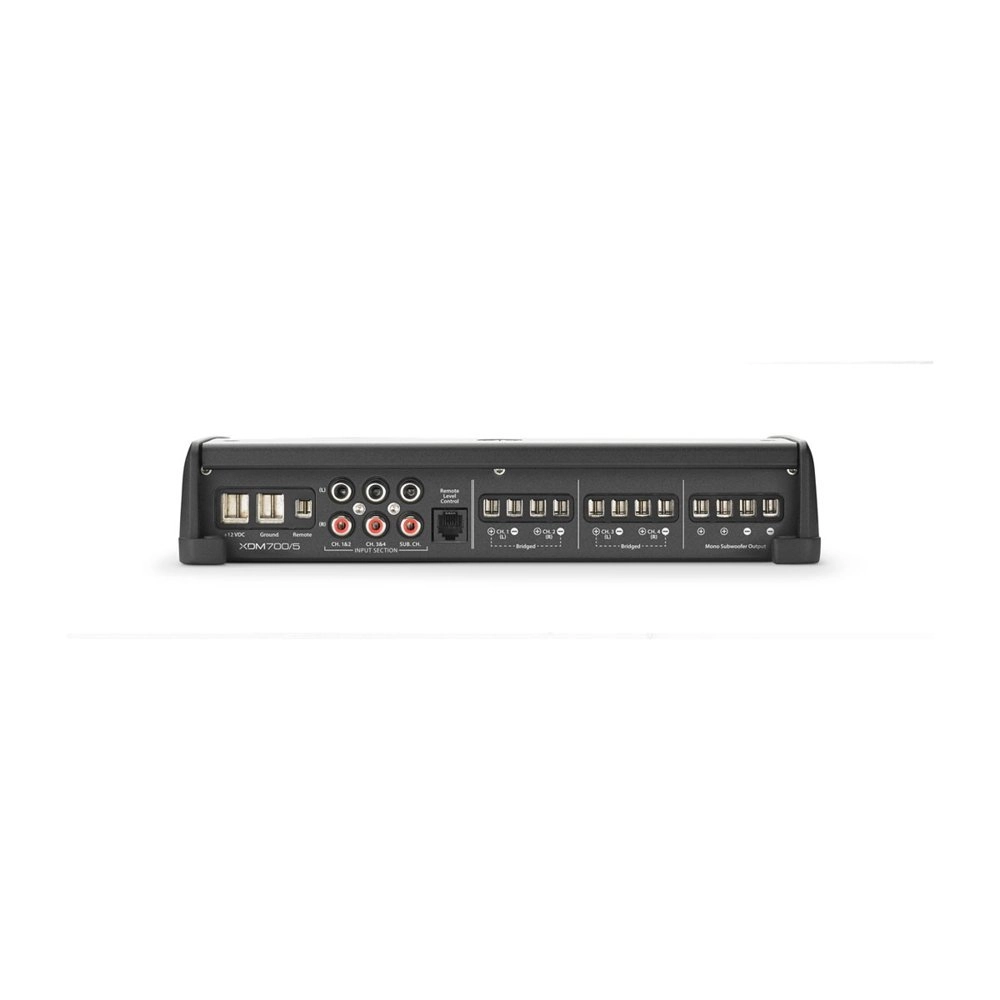

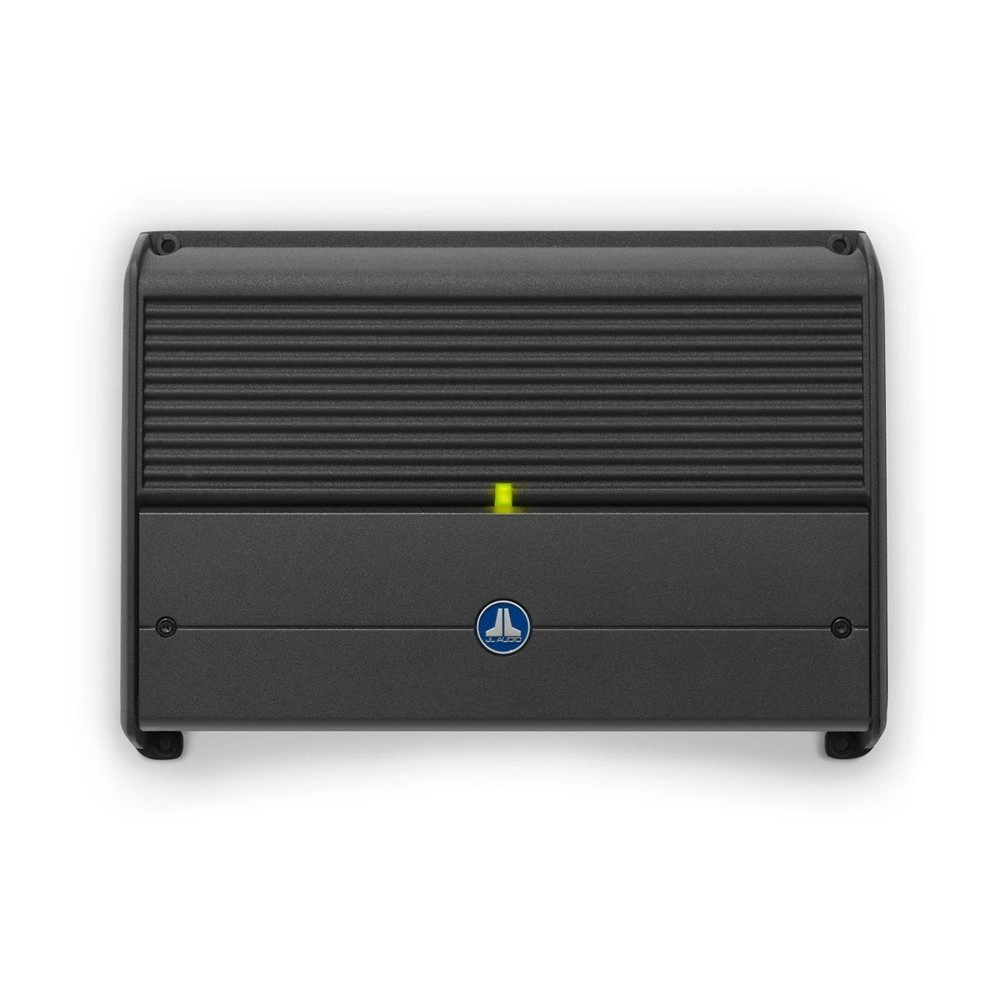

JL Audio XDM 5-Channel Car/Marine System Amplifier 700W
Buy now, pay later & Finance Options
Find Local Store
Amplify Your Adventure: Premium Marine Sound, Unrivalled Clarity!
Transform your on-water audio experience with the JL Audio XDM 5-Channel Car/Marine System Amplifier 700W. Engineered for the demanding marine environment, this amplifier doesn't just deliver power – it delivers pristine sound with incredible efficiency. Thanks to its advanced NexD™ Technology, you get robust output without draining your boat's electrical system, making it incredibly kind to your battery even during those long days out on the Hauraki Gulf or exploring Fiordland.
This powerhouse of sound is designed with practicality in mind for your vessel. Its compact dimensions (260 mm x 52 mm x 180 mm) mean it can fit into tight spaces, giving you flexibility for installation. With 700W total RMS power, including 4 x 100W for main channels and a thumping 1 x 300W for your subwoofer at 2 Ohms, you'll enjoy a full, dynamic soundstage. The exclusive marine-grade input filter ensures crystal-clear audio, actively rejecting electrical noise common on boats, while advanced thermal management keeps the performance consistent, preventing overheating in the harsh Kiwi sun. Plus, with a 2-Year Warranty, you've got peace of mind for countless nautical miles ahead. Grab yours and get ready to crank up the tunes!
JL Audio XDM 5-Channel Car/Marine System Amplifier 700W Features:
- Efficient NexD™ Technology: Minimal battery drain, high power output.
- Compact Design: Versatile installation in tight boat spaces.
- Marine-Grade Input Filter: Crystal clear audio, rejects electrical noise.
- 700W Total RMS Power: Robust, dynamic sound for your vessel.
- Advanced Thermal Management: Sustained performance, prevents overheating in marine conditions.
- Studio-Grade Signal Processing: Customise onboard sound for optimal clarity.
- 2-Year Warranty: Long-term reliability and peace of mind on the water.
- 12V System Ready: Seamless integration with standard marine electrical systems.
- Optional Water-Resistant Remote: Convenient audio control from the helm or deck.
JL Audio XDM 5-Channel Car/Marine System Amplifier 700W Specifications:
- Channels: 5-Channel (4 Main + 1 Subwoofer)
- Amplifier Class: Class D (NexD™ Technology)
- RMS Power Output (14.4V):
- Main Channels: 4 x 75W @ 4Ω / 4 x 100W @ 2Ω
- Subwoofer Channel: 1 x 180W @ 4Ω / 1 x 300W @ 2Ω
- RMS Power Output (12.5V):
- Main Channels: 4 x 60W @ 4Ω / 4 x 90W @ 2Ω
- Subwoofer Channel: 1 x 180W @ 4Ω / 1 x 300W @ 2Ω
- Frequency Response (+0, -1dB):
- Main Channels: 12 Hz - 22 kHz
- Subwoofer Channel: 10 Hz - 1 kHz
- Signal-to-Noise Ratio (A-weighted):
- Main Channels: > 104 dB
- Subwoofer Channel: > 103 dB
- THD+N @ Rated Power: <1% @ 2Ω
- Operating Voltage: 11-14.5 VDC (12 V Models)
- Dimensions (WxHxD): 260 mm x 52 mm x 180 mm (10.23" x 2.05" x 7.09")
- Weight: 2.79 kg (6.15 lbs)
- Fuse Rating: 60 A
- Recommended Fuse Type: AFS, AGU or MaxiFuse
- Min. Power/Ground Wire Gauge: 4 AWG wire
- Warranty: 2 Years
