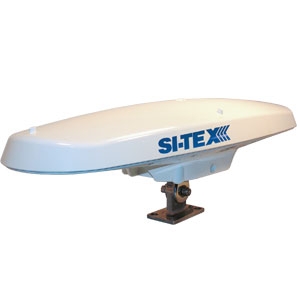

Si-tex Vector Pro G2 Compass IMO Certified GPS Compass

Click on the image above to view full picture

The item you're looking at is currently unavailable or has limited stock, how about this one instead?
Southern Ocean Marine Compass 12v Light 70mm Card

Southern Ocean Marine Compass 12v Light 70mm Card
Details

Details

Si-tex Vector Pro G2 GPS Compass

Model: VECTOR PRO G2

Features:
  • The rugged enclosure combines GPS' Crescent Vector board and two multipath-resistant antennas for simple installation
  • The half-meter length smart antenna mounts easily to a flat surface or pole
  • The stability and maintenance-free design of the Vector Pro replaces traditional gyrocompasses at a fraction of the cost
  • IMO Wheelmarked for Commercial applications

Experience superior navigation from the accurate heading and positioning performance available with the Vector Pro G2 Series GPS Compass.

Specifications
GPS SENSOR SPECIFICATION
Receiver Type Twin Receivers w/ L1, C/A code, with carrier phase smoothing
ChannelsTwo 1?channel, parallel tracking, (Two 10- ?channel when tracking WAAS)
Update Rate Standard 20 Hz Adjustable (position and heading)
Horizontal Accuracy< 0.6 m 95% confidence (
< 2.5m 95% confidence (aiutonomous, no SA)
Heading accuracy<0.3 degrees rms
Pitch/roll accuracy< 1 degrees rms
Rate of turn90 degrees /s max
Start up time< 60s typical
Heading fix< 20s
Satellite reacquisition< 1s
Beacon Sensor Specifications (G2B version)
Channels2-channel parallel tracking
Frequency range283.5 to 325 kHz
Operating modesAutomatic (signal strength or range) and manual
ComplianceIEC 611 08-4 beacon standard
Communications
Srial ports2 full duplex RS-232 and 2 half duplex RS-422
Data I/O protocolNMEA 0183
Enviromental
Operating temperature rage-30 degrees C to +70 degrees C
Humidity100% non condensing
Input voltage9-36vDC
Power consumption<5w
IsolationPower supply isolated fromserial ports
Mechanical
Dimensions23.6'' x 6.3'' x 7.1''
