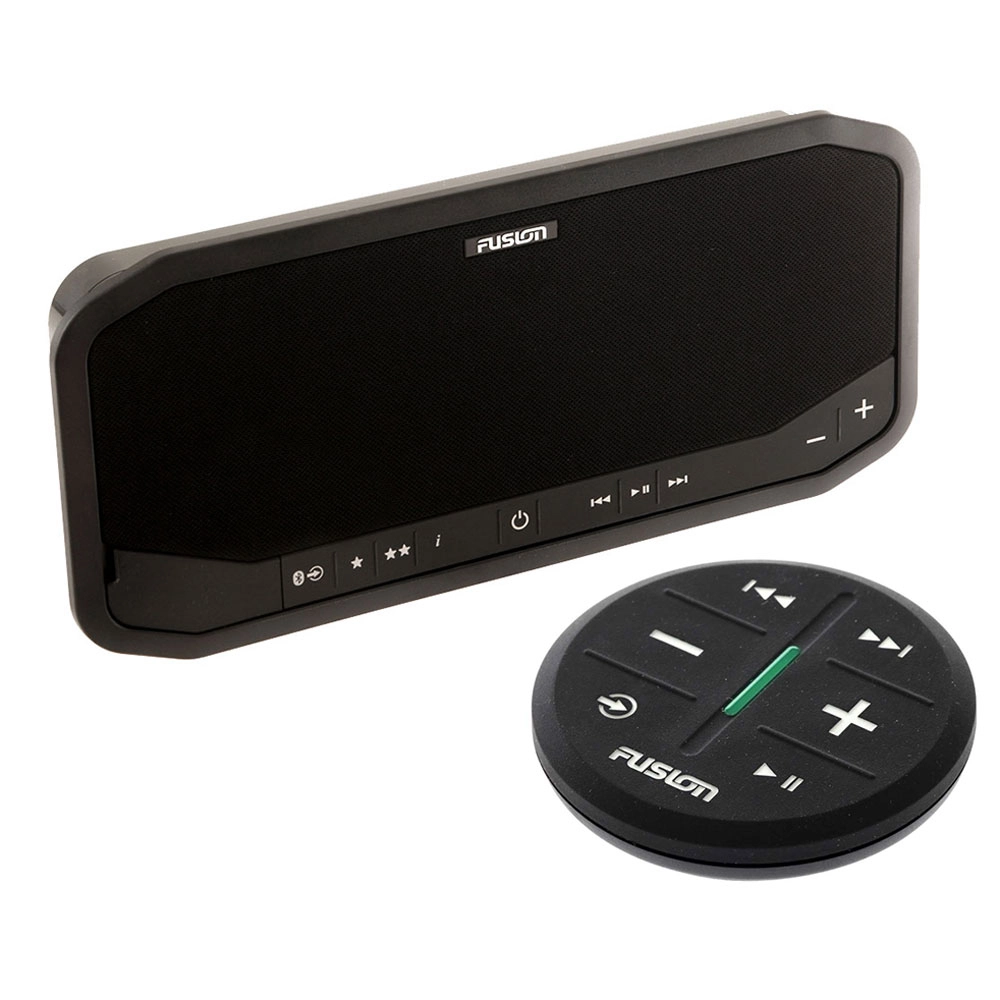

Fusion PS-A302B Panel-Stereo Bluetooth Entertainment System with Remote
Deliver to:
New South Wales 2000,
AU
Estimated:
$0.00
Buy now, pay later & Finance Options
Find Local Store
Report incorrect product information
All-in-one audio entertainment solution
An ultimate all-in-one, plug-and-play audio solution, the Fusion PS-A302B Panel-Stereo Bluetooth Entertainment System with Remote combines all the elements required for excellent audio reproduction inside a single perfectly tuned enclosure. Enjoy flexibility in audio control options with Bluetooth audio streaming, AM/FM radio, USB and AUX audio connections available, providing incredible audio reproduction and a smooth frequency response with Fusion's Digital Signal Processing (DSP). Voice prompts guide the operation of the stereo, and the versatility of three simple mounting options available lets you install your stereo where it is best suited.
Hi-Fi Audio Reproduction Through DSP
Digital Signal Processing optimises the entire audio chain, ensuring the speaker components always receive premium quality audio for an efficient, incredibly smooth frequency response and Hi-Fi audio reproduction at every volume level.
Digital Signal Processing
Fusion's Digital Signal Processing (DSP) optimises every step of the audio chain through calculations to deliver a technically superior listening experience wherever your Panel-Stereo is installed. The optimisation of the entire audio chain results in a system that is perfectly tuned for premium audio reproduction at any volume level and programmed to protect the components season after season.
Plug and Play All-In-One Audio Entertainment Solution
With built-in Class-D amplification, stereo source selection of Bluetooth, AM/FM radio, USB and AUX, two 3" speakers and a large surface bass radiator all combined in a perfectly tuned enclosure. All the acoustic parameters have been calculated to ensure quality audio reproduction wherever the Panel-Stereo is installed.
Simple, Versatile and Cost-Effective Installation
Designed for easy installation, the Panel-Stereo only requires 12V dc power, ground and AM/FM antenna connections. With three mounting options available to create a professional finish with a maximum of only one cut-out required, the Panel-Stereo is a seriously versatile solution. The 43mm (1.69in.) surface mounting spacer allows installation directly onto any flat surface with no cut-out required, and its shallow depth allows for installation in a shallow wall cavity, either installed flush or flat for a premium finish.
Bluetooth Wireless Technology
Stream your family’s favourite soundtrack from any compatible Bluetooth-enabled device with Bluetooth audio streaming. Control is available from either the Panel-Stereo or the connected device.
Voice Prompts
Audible feedback is given as you cycle through music sources, change stations and save presets. These voice prompts are available in English, French, German, Dutch, Italian, Japanese, Mandarin and Spanish.
Fusion-Link Control
Enjoy the freedom of wireless control of your audio entertainment from your compatible Apple or Android device with the free Fusion-Link app via Bluetooth. Download the free Fusion-Link Lite app to enable wireless control via ANT Technology from your compatible Garmin watch.
The Fusion PS-A302B Panel-Stereo All-In-One Audio Entertainment System is a seriously versatile solution for quality in-cabin audio entertainment.
Fusion PS-A302B Panel-Stereo All-In-One Audio Entertainment System Features:
- Designed with two 3" speakers in the perfectly tuned
enclosure
- All acoustic parameters are calculated to ensure quality audio
reproducton
- High-efficiency built-in Class-D amplifier provides increased
output with less current
- Tuned, sealed enclosure design protects all components from
damage
- Large surface passive bass radiator tunes the volume and driver
for better low frequency performance
- Sealed USB connector on the front face for easy plug and play
access to yout music library
- Digital Signal Processing
- Bluetooth Audio Streaming
- Fusion-Link Control
- Versatile mounting options: Surface, flush anf flat
mounting
Fusion PS-A302B Panel-Stereo All-In-One Audio Entertainment System Specifications:
- Sources: AM/FM / Bluetooth / USB / AUX x 2
- Digital Signal Processing (DSP): Yes
- Speakers: 2 x 3 in. speakers with 1 x passive radiator
- Weight: 1.15kg (2.54 lbs.)
- Fusion-Link Control (Wireless): Yes
- Bluetooth Wireless Technology: Bluetooth audio streaming and
control within 10m (33ft.) range (via devices compatible with A2DP/AVRCP 1.3 / SSP Bluetooth profiles). Bluetooth version
4.1
- ANT Technology: Yes - up to 3m (10 ft.) range
- Wireless Frequency / Protocol: Bluetooth/ANT frequency: from
2,402 to 2,480 MHz Bluetooth/ANT max. power: 9 dBm EIRP
- Internal Amplifier: Class-D, 2 x 43 W rms @ 14.4 V dc input, ≤
1% THD+N
- Water Resistance (IPX Rating): IP65 (sealed chassis)
- Peak Power: 140 W max. (2 x 70 W)
- Multiple Languages Available: English, French, German, Dutch,
Italian, Japanese, Mandarin and Spanish voice prompts are
available
- Auxiliary Inputs: 2 x stereo RCA inputs (AUX IN 1, AUX In 2)
with 1 V rms typical AUX input level
- 1 x USB type A port for USB flash drive or media player
connection. Also provides 1A charging
- Line Out: 1 x stereo RCA output with 5.5V (peak to peak) max.
line output level
- Input Voltage: 10.8 - 16.0 V dc
- Current (max.): 10 A
- Fuse: 10 A

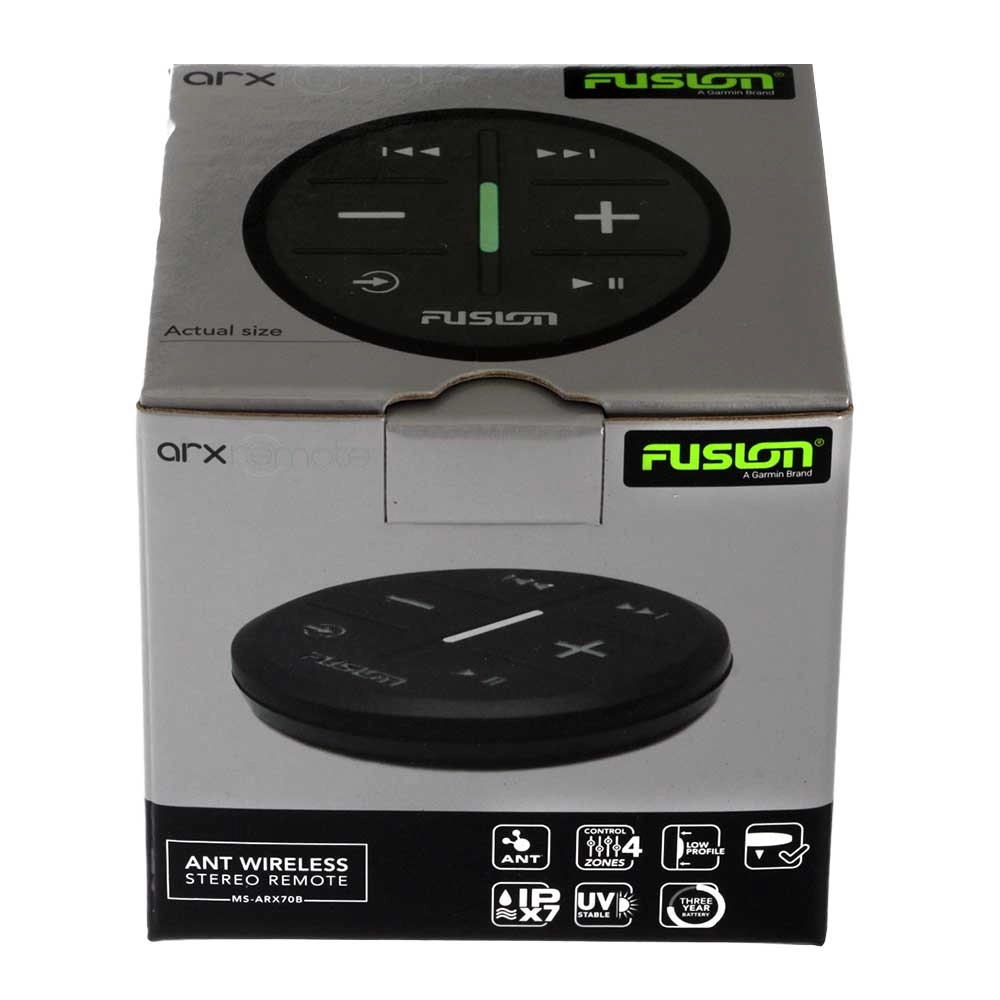

Fusion ARX ANT Wireless Stereo Remote Features:
- Easy to install without the need to cut holes, run wires or add screws
- Compact, low-profile design allows it to easily fit in a wide variety of areas on board
- Rubberised tactile buttons make it easy to use, even in wet conditions
- Interface with compatible Fusion stereos and control up to 4 audio zones on board
Fusion ARX ANT Wireless Stereo Remote Specifications:
- Physical dimensions (Diameter x Height): Remote: 2.56" x 0.43" (65 x 10.8mm)
- Weight: With mount: 1.6 oz (30g)
- Without mount: 0.88 oz (25g)
- Water rating: IPX6 and IPX7
- Operating temperature range: 32° to 122° F (0° to 50°C)
- ANT wireless range: Up to 33ft (10m)
- Radio frequency/protocol: 2.4GHz @ 6.42 dBm nominal
- Compass-safe distance: 2" (50mm)
- Includes: ARX wireless remote control, Mount with bonding tape, Documentation
- Compatible devices: Fusion Apollo MS-RA670 / RA770 / RA800, MS-WB670, Fusion MS-BB100, Fusion MS-RA210, Fusion MS-RA60, Fusion Panel Stereo, Fusion RA70 Series
Fusion PS-A302B Panel-Stereo Mounting Template
Fusion PS-A302B Owner's Manual
Note:Fusion PS-A302B Panel-Stereo Surface Mounting Spacer sold separately.
Some of our product deals are strictly limited - once they're gone, they're gone! Secure yourself this amazing deal while stocks last...by clicking the Add to Order button above.
