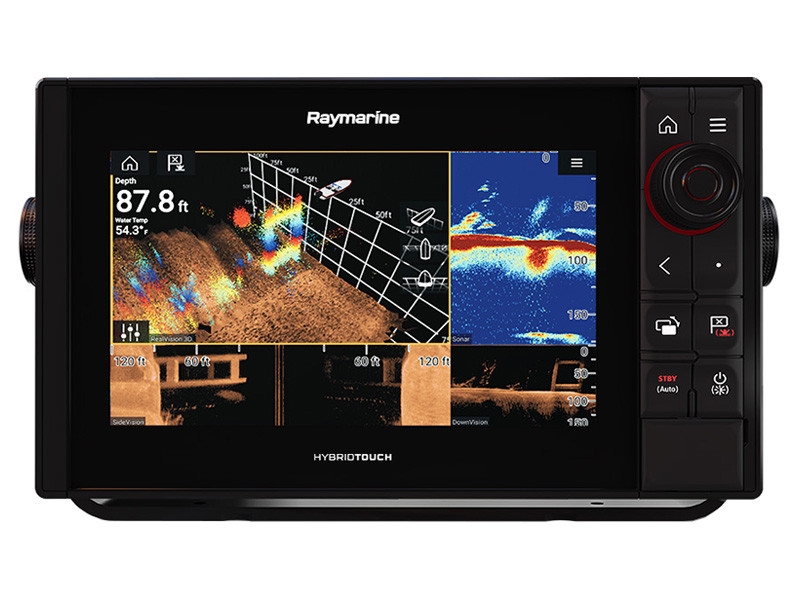

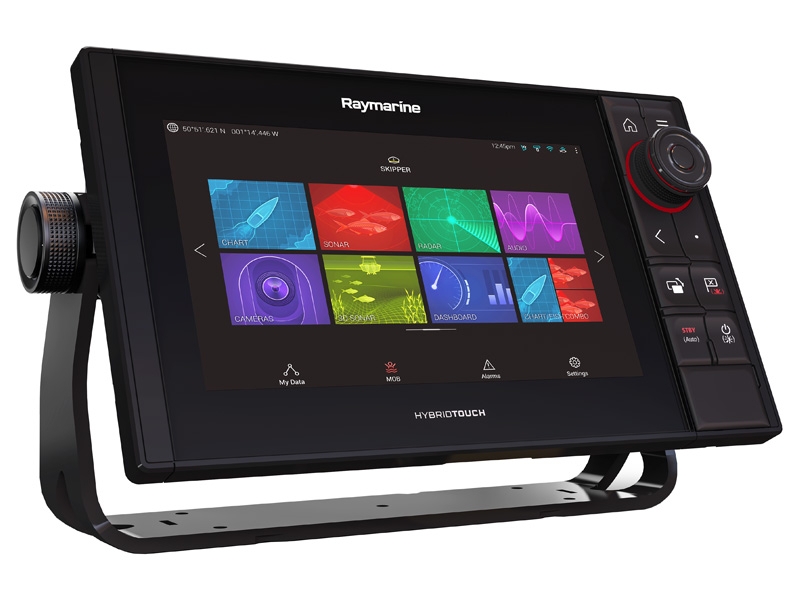

Raymarine Axiom 9 Pro-RVX HybridTouch GPS/Fishfinder Realvision 3D and 1kW CHIRP Sonar with NZ/AU Chart

#9102396
Warranty Badge - 24-Months
Calculate Shipping
Australia Wide
includes any items in cart
ONLY $5,369.00

Seen a lower price? Ask us to beat it

Click on the image above to view full picture

More Views

The item you're looking at is currently unavailable or has limited stock, how about this one instead?
Details

Details

High performance navigation

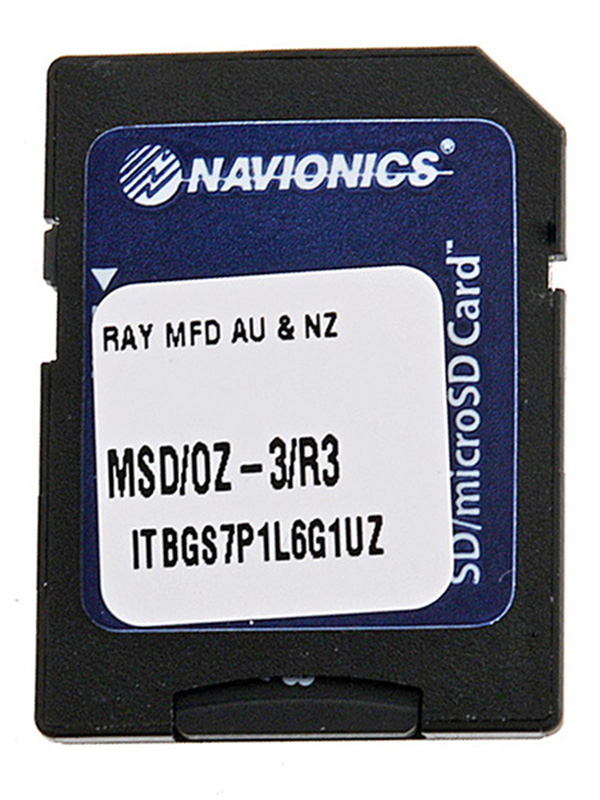

Engineered for captains that want it all, the new Raymarine Axiom 9 Pro-RVX HybridTouch GPS/Fishfinder is the new standard for "all-in-one" display. With blazing fast quad core processor, super bright IPS display and the smart LightHouse OS; Axiom Pro delivers a fluid and intuitive navigation experience. It's easy to expand into an advanced navigation network that includes multiple Axiom displays, CHIRP radar, Evolution autopilot, FLIR thermal night vision technology and more. The Pro-RVS kit comes with a 9" Multi-function Display with integrated 1kW Sonar, DV, SV and RealVision 3D Sonar plus a Navionics+ NZ/AU Chart Card.

Note: This listing is for the Raymarine Axiom 9 Pro-RVX HybridTouch with Sonar and NZ/AU Chart ONLY. Transducer sold separately.

Blazing Fast Quad Core Processor
Axiom Pro’s quad core processor delivers instantaneous response and the ability to run multiple apps simultaneously without any slowdowns.

Go Deeper with CP470 & CP570
Axiom Pro is compatible with the Raymarine CP470 and CP570 Professional CHIRP sonars. Enjoy powerful sonar output up to 2 kilowatts and dual, independent transceivers on CP570.

GPS GA150 Port
Axiom comes with a built-in 72 channel GPS/GLONASS receiver with fast update. Use the optional GA150 antenna accessory to boost GPS reception onboard vessels with enclosed pilothouses or metal construction where the MFD does not have a clear view of the sky.

Bold and Bright Optical Bonding Technology & IPS Displays
Raymarine optical bonding technology and IPS display panels give you stunning colour, clarity and contrast in all lighting conditions. Plus, Axiom Pro looks great even through polarised sunglasses.

Video Monitoring - IP & Analog Video
Keep an eye on everything onboard from the helm. Axiom Pro supports both video over IP and analog cameras and entertainment sources.

Marine Audio Control - Rockford Fosgate
Rock the boat! Integrate Axiom Pro with multi-source, multi-zone marine audio from Rockford Fosgate. Change sources, select tracks, control zones, and much more right from your MFD.

Enhanced Thermal Awareness - Clear Cruise
Combine Axiom Pro with the FLIR M132 or M232 thermal camera and enjoy Clear Cruise IR Analytics. Axiom Pro will alert you automatically to hazards in the vessel’s path.

Radar - Quantum CHIRP, HD & SHD
Axiom Pro works with Raymarine's full lineup of Quantum CHIRP, HD Colour and Super HD Colour radar scanners. Enjoy all weather, day or night navigation, collision avoidance and bird finding tools.

Ready to Network - NMEA2000 & NMEA0183
Axiom is ready-to network with all the latest electronics using standard NMEA2000 and NMEA0183 connectivity.

Raymarine Axiom 9 Pro-RVX HybridTouch GPS/Fishfinder Features:
  • RealVision 3D - Easily identify structure and locate fish with the life-like clarity of RealVision 3D sonar
  • Sonar Scroll Back - Rewind, pause and playback recorded sonar history to take a closer look fish and structure and easily plot waypoints
  • RealVision 3D Sonar with GPS Track - RealVision 3D combines with precision GPS to construct the most accurate 3D model of the underwater world, in real-time
  • Offshore Rated 1kW CHIRP Sonar - Simply add a compatible offshore transducer and experience the stunning definition and clarity of dual-channel CHIRP sonar
  • Historical Sensitivity Settings - Adjustments to sonar gain, sensitivity and filtering are also applied to recorded sonar history, enabling you to reveal previously concealed fish and structure
  • True 1kW Sonar - No compromises performance targets bait, fish, thermoclines and more at depths to 5,000 feet
  • Low, Medium or High CHIRP - Axiom Pro 1kW sonar offers a wide spectrum of CHIRP sonar bands for deep, mid-range and shallow water fishing
  • HybridTouch - Your choice of simple tablet like touch screen interaction or confident keypad control in rough seas
  • Custom Key - Get instant access to your favourite function with Axiom Pro’s user-programmable Custom Key
  • LightHouse OS - Fast, fluid and easy to learn. The Lighthouse 3 interface is uncluttered and easy to personalise for your style of boating
  • RMK-10 Remote Keypad - Add the optional wired RMK-10 keypad to control Axiom Pro from anywhere. RMK-10 can control a single or multiple MFDs at the same location

Raymarine Axiom 9 Pro-RVX HybridTouch GPS/Fishfinder Specifications:

General
  • Display Size: 9" IPS Optically Bonded LCD
  • Display Resolution: 1280 x 720 WXGA
  • Display Type: Multitouch
  • Brightness: 1,200 nits
  • Viewing Angle: Degrees: 88 / 88 / 88 / 88 (Top / Bottom / Left / Right)

Physical
  • Dimensions: 11.9" x 6.85" x 2.56" (300 x 174 x 65 mm)
  • Weight: 3.35 lbs (1.52 kg)
  • Mounting: Top, Front, Bracket
  • Waterproof Rating: IPX6 / IPX7
  • Operating Temp: minus 13 °F to 131 °F (-25 °C to +55 °C)
  • Storage Temp: minus 22 °F to 158 °F (-30 °C to +70 °C)
  • Voltage: 12V and 24V DC (8 V to 32 DC)
  • Power Consumption (Full brightness): Axiom Pro 9: ~20W

Sensors and Peripherals
  • GNSS / GPS: Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou - 10Hz 72 Channel | External Accessory: GA150 (A80288)
  • Sonar Type - RealVision 3D + 1kW Sonar
  • Sonar Connections: 25pin RealVision type connector + 11 pin 1kW type connector
  • Sonar Depth
    CHIRP Sonar = 900 feet (274 m)
    DownVision = 600 feet (183 m) | SideVision = 300 feet (91 m) | RealVision™ 3D = 300 feet (91 m) 1kW = 5,000 feet (1,500 m)
  • External Sonar: Yes - CP100, CP200, CP370, CP470, CP570 via RayNet
  • Radar: Yes - Quantum, Digital, HD Color and Super HD Colour Radars
  • AIS: Yes - N2K compatible
  • Autopilot Control: Yes - Evolution Autopilot
  • Thermal Night Vision: Yes - IP or Analogue
  • Video / Camera: 1 x Analogue input (BNC) Up to 10 IP Cameras
  • Weather: GRIB View - Free GRIB viewer and Theyr Ltd Subscription
  • Audio: N2K / Bluetooth /
  • Digital Switching: Yes - Empirbus & C-Zone compatible
  • Remote Control RMK-10 (A80438) & RCU-3 (E62351)

Networking
  • Ethernet: 2 x 10/100 Mbit/s Network (RayNet)
  • NMEA0183: 1 Transmit / 2 Receive
  • NMEA2000: 1 x NMEA2000 port (DeviceNet microC)
  • SeaTalkNG: Requires DEVICENET FEMALE (F) ADAPTOR CABLE (A06075 1m adaptor included in box)
  • USB: 1 x USB microAB (rear - charging, external storage device or RCR-SD/USB Accessory (A80440)
  • Wi-Fi: WiFi - 802.11 a / b / g / n
  • BlueTooth: Bluetooth 4.0 + Low Energy + Power Class 1.5

Navigation
  • Cartography: Lighthouse, Navionics, C-MAP Essentials & C-MAP 4D MAX+
  • Waypoint/Routes/Tracks (Wpts/Rts/Trk): 10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts

Memory
  • Internal: 16GB Solid State
  • External: 2 x microSD slots (front) - microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD native format of exFAT must be reformatted to NTFS or FAT32)

Other
  • Languages: 24
  • Conformances: NMEA 2000 certification | Europe: 1999/5/EC | Australia and New Zealand: C-Tick, Compliance Level 2 | FCC 47CFR part 15 | Industry Canada RSS210

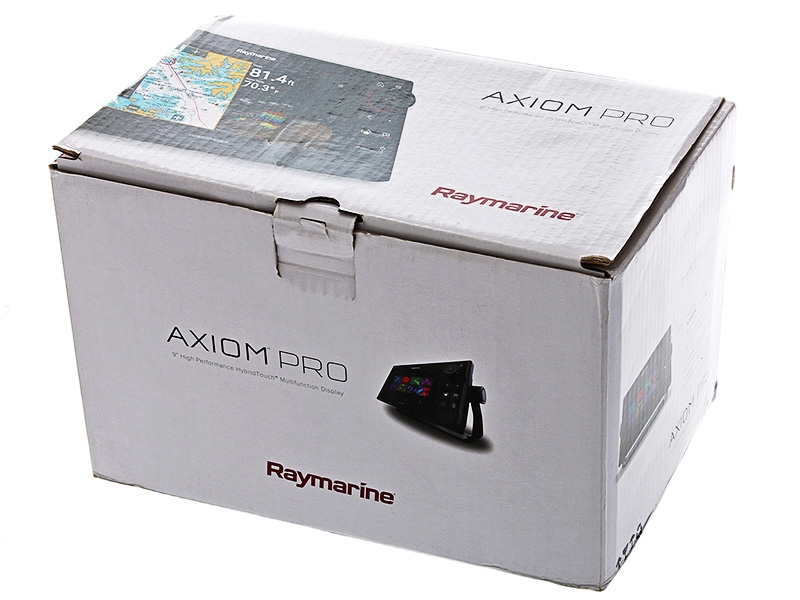

What's in the Box:
  • MFD Display (E70481 or E70371)
  • RayNet (F) to Raynet (F) Cable – 2M (A62361)
  • Trunnion Cover
  • Trunnion Knobs
  • Trunnion Bracket
  • Suncover (A80534)
  • Power / Video / NMEA0183 Cable - Straight, 1.5M (R62379)
  • Micro-C DeviceNet (F) to STNG (F) Cable - 1M (A06075)
  • Panel Seal Gasket
  • Bezel Pieces and Home / Menu Button
  • Mounting Fixings
  • Quick Start Guide
  • Warranty Card
  • Raymarine window decal
