Humminbird HELIX 7 CHIRP MEGA DI G4 GPS/Fishfinder

#9181017
Warranty Badge - 12-Months
Calculate Shipping
Australia Wide
includes any items in cart
ONLY $1,419.00

Seen a lower price? Ask us to beat it

Click on the image above to view full picture

More Views

The item you're looking at is currently unavailable or has limited stock, how about this one instead?
Humminbird HELIX 7 CHIRP MEGA DI G4N GPS/Fishfinder

Humminbird HELIX 7 CHIRP MEGA DI G4N GPS/Fishfinder

Why pay $1,809.00
ONLY $799.00
SAVE $1,010.00!
THIS WEEKEND ONLY
Details

Details

Clear view beneath your boat

The Humminbird HELIX 7 CHIRP MEGA DI G4 GPS/Fishfinder features MEGA Down Imaging, Dual Spectrum CHIRP Sonar, AutoChart Live, Internal GPS and Humminbird Basemap built-in. An upgraded high-definition 7" display will give you the best view of the many pre-loaded split screen view options so that you'll never miss a fish. Includes control head, transom-mount transducer, power cable, gimbal mounting bracket and mounting hardware.

Keypad control
Master HELIX at the touch of a button. Access the pre-loaded views from the user-friendly menu system, operated by softkey controls that allow you to reliably operate your fish finder in any conditions.

MEGA Down Imaging
Get unprecedented underwater clarity with coverage down to 125 feet below your boat. You'll unlock new details with up to 3X more detail than standard Down Imaging sonar.

Dual Spectrum CHIRP sonar
Before you cast, know what's down there thanks to highly-detailed fish arches and a clear view of fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum CHIRP 2D sonar offers two ways to search; Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.

Internal GPS and Humminbird Basemap
Humminbird's enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.

Premium Chart Compatible
Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird's LakeMaster and CoastMaster products, as well as your choice of compatible Navionics charts.

AutoChart Live
Create real-time maps of your fishing spots, with access to patented Humminbird LakeMaster features. Map depth contours, bottom hardness and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually-endless AutoChart Live mapping capacity.

Humminbird HELIX 7 CHIRP MEGA DI G4 GPS/Fishfinder Features:
  • Keypad control: master HELIX at the touch of a button
  • User-friendly menu system allow you to reliably operate your fish finder in any conditions
  • MEGA Down Imaging: get unprecedented underwater clarity with coverage down to 125 feet below your boat
  • Up to 3X more detail than standard Down Imaging sonar
  • Dual Spectrum CHIRP sonar: highly-detailed fish arches and a clear view of fish-holding structure and the bottom
  • Low-Q CHIRP transducer, Dual Spectrum CHIRP 2D sonar offers two ways to search; Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail
  • Internal GPS and Humminbird Basemap
  • Premium Chart compatible
  • AutoChart Live: create real-time maps of your fishing spots, with access to patented Humminbird LakeMaster features
  • Includes control head, transom-mount transducer, power cable, gimbal mounting bracket and mounting hardware

Humminbird HELIX 7 CHIRP MEGA DI G4 GPS/Fishfinder Specifications:
  • Series: HELIX
  • Display Size - Diagonal: 7"
  • Display Pixel Matrix: 1024H x 600V
  • Sonar-Standard: Dual Spectrum CHIRP, MEGA Down Imaging
  • Sonar-Coverage: 20°, 42°, 60° and (2) 86° @ -10dB
  • Sonar-Optional: 53 kHz, 50/Low Airmar CHIRP
  • CHIRP - Frequencies Supported: 83/200 (75-155/130-250 kHz), Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)
  • Sonar-Frequencies Supported: 50/83/200/455/800 kHz and 1.2 MHz
  • Depth-Sonar: 1,200 ft (standard transducer), 3,500 ft (optional 50 kHz)
  • CHIRP - Imaging-Frequencies Supported: 455 kHz (440-500 kHz), MEGA DI (1075-1150 kHz)
  • Depth-Down Imaging: 400 ft (455 kHz), 75 ft (MEGA)
  • Range-Side Imaging (Side-To-Side): 800ft (455 kHz)
  • Interface: Keypad Control
  • Features: Built In GPS, Built In Mapping, Dual Spectrum CHIRP, Down Imaging, MEGA Imaging
  • Memory Card Slot: Single Micro SD
  • Compatible With: AIS, AutoPilot, Minn Kota US2 Sonar, Minn Kota Built-In MEGA DI
  • Power Draw: 800 mA
  • Power Input: 10.8-20 VDC
  • Power Output Peak-to-Peak: 4000 Watts
  • Power Output RMS: 500 Watts
  • Screen Snap Shot: Included
  • Sonar Recording: Included
  • Mount-Standard: Gimbal

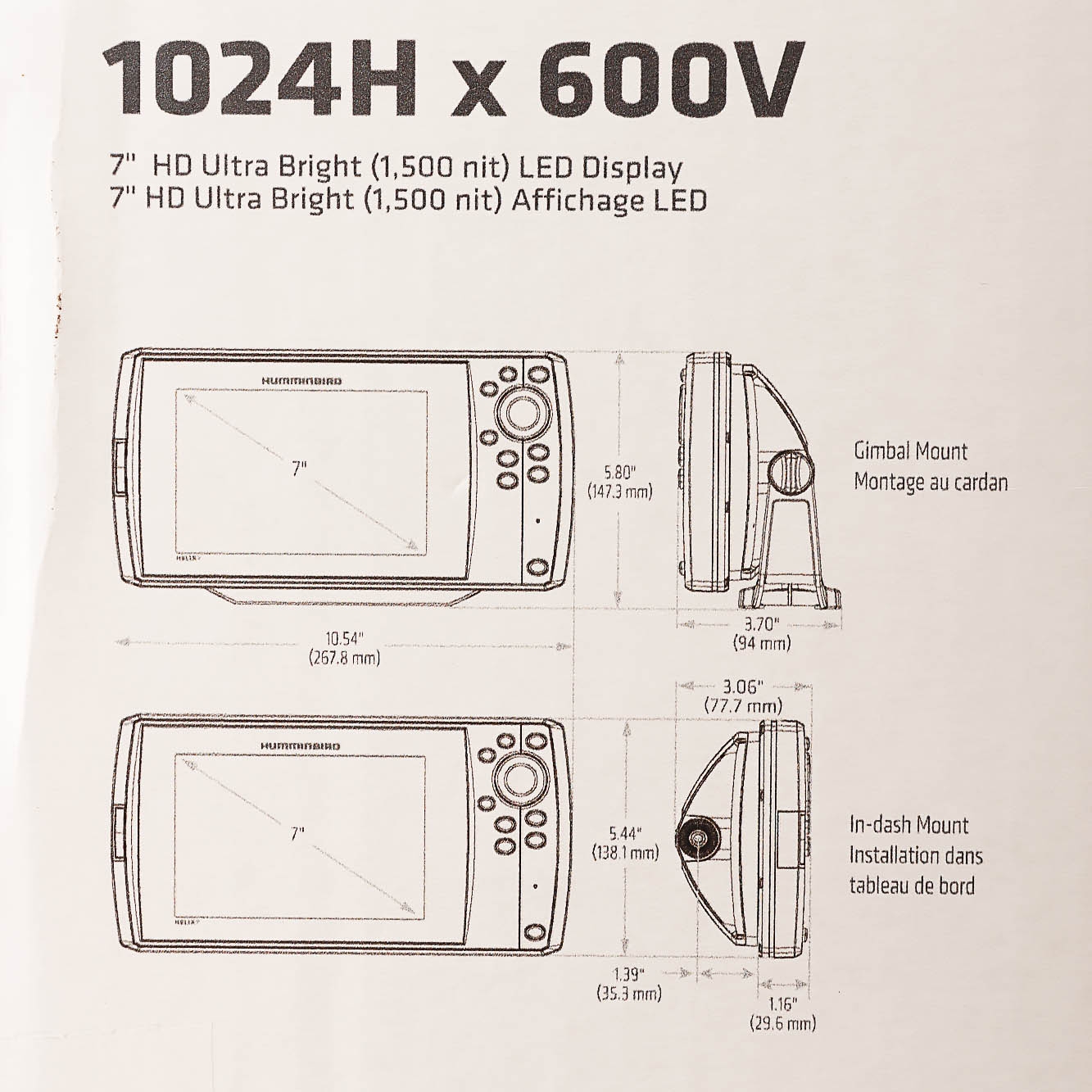

  • Mount-Standard Size: 10.54" W x 5.8" H x 3.68" D
  • Mount-Optional Size: 10.54" W x 5.44" H x 1.13" D
  • Transducer Mount Location: Transom
  • GPS Chartplotting: Included
  • GPS Trackplotting: Included
  • LakeMaster Compatibility: Yes
  • Coast Master Compatibility: Yes
  • Navionics Gold/HotMaps Compatibility: Yes
  • Navionics Platinum + Compatibility: Yes
  • Platinum Compatibility: Yes
  • Heading Sensor GPS Compatibility: Yes
  • Upgradable Software: Yes
  • View Preset Keys: No
  • X-Press Menu System: Yes
  • Custom Digital Readout: Yes
  • Custom View Selections: No
  • Display Colours Grayscale: 16-Bit
  • Display Size: 5" - 7"
  • Speed: Included
  • Temperature: Built In
  • Temperature Alarm: Yes
  • Temperature Graph: Yes
  • Transducer Included: XNT 9 HW MDI 75 T
  • HDMI Compatible: No
  • MEGA Live Compatibility: No
