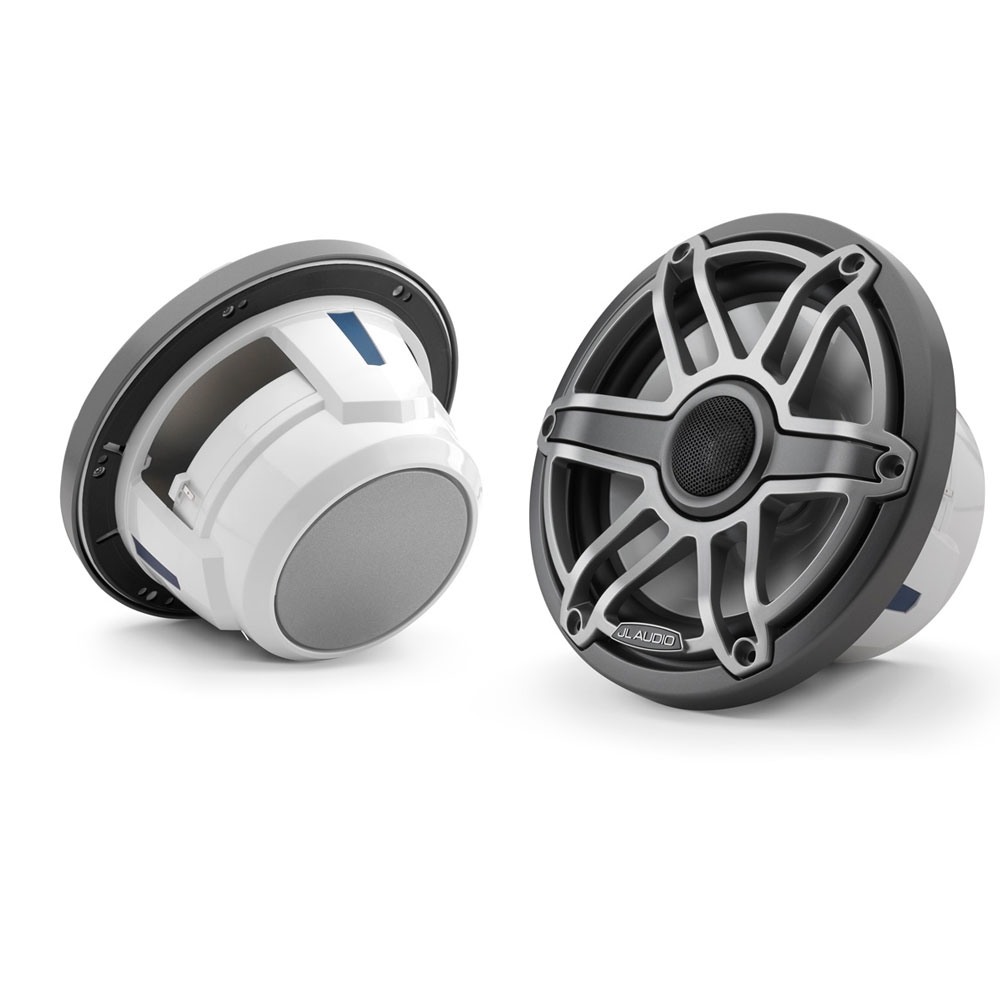

JL Audio M6-770X-S-GWGW Marine Coaxial Speakers 7.7in 100W

Maximum audio performance on the water

Purpose-engineered and built for real marine duty, the JL Audio M6-770X-S-GWGW Marine Coaxial Speakers deliver maximum audio performance in any open-air boating environment. The oversized 7.7-inch design of the M6-770X coaxial results in increased efficiency (more output for a given amount of power). Combine that advantage with long excursion and excellent power handling and you have a speaker system truly capable of playing loud and clear in a powerboat at speed.

A 1-inch pure silk dome tweeter, specially treated to withstand the marine environment, handles the high-frequency duties. You will appreciate the clean, articulate high-frequency response of the M6 dome tweeter, especially at higher volume levels. A true 2-way passive crossover network is built into the terminal assembly to protect it from vibration and corrosion.

Note: Although M6-770X Coaxial Systems can be used with as little as 40 W per channel, for best audio performance JL Audio recommends amplifiers capable of between 40-200 W of continuous power per channel.

JL Audio M6-770X-S-GWGW Marine Coaxial Speakers Features:

• M6 7.7-inch Marine Coaxial Speakers (100 W, 4 Ω)

• Design: Gloss White Trim Ring, Gloss White Sport Grille

• Sold as a pair

• Oversized design

• 1-inch pure silk dome tweeter

• True 2-way passive crossover network

• Injection-moulded mica-filled polypropylene cone bodies with synthetic rubber surrounds, specifically formulated with UV inhibitors for marine duty

• Marine-grade, synthetic fibre spiders with progressive roll designs to withstand high humidity

• Specifically engineered polymer baskets are corrosion and UV-resistant and encapsulate the woofer's motor system to prevent corrosion

• Gold-plated, marine-grade brass connection terminals

• Marine-grade stainless steel mounting hardware is included


JL Audio M6-770X-S-GWGW Marine Coaxial Speakers Specifications:

• Model number: M6-770X-S-GWGW

• Continuous Power Handling (RMS): 100 W

• Peak Music Power: 200 W

• Recommended Amplifier Power (RMS): 40 - 200 W / Ch.

• System Efficiency: 91.0 dB @ 1 W / 1 m

• System Nominal Impedance: 4 Ω

• System Frequency Response: 45 Hz - 25 KHz ± 3 dB
