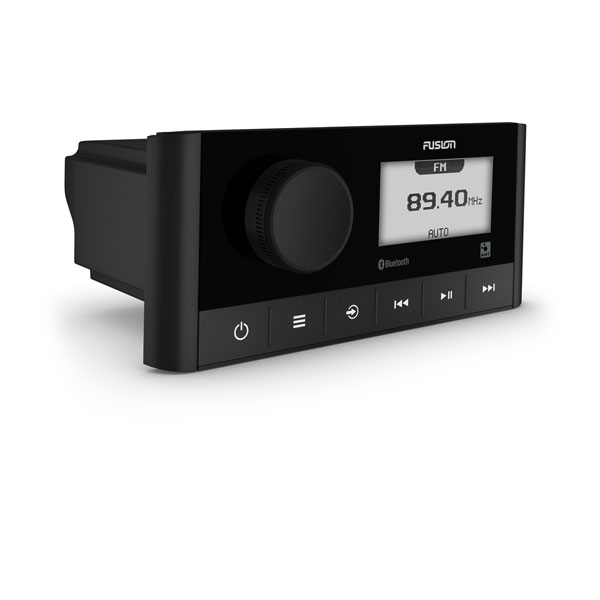

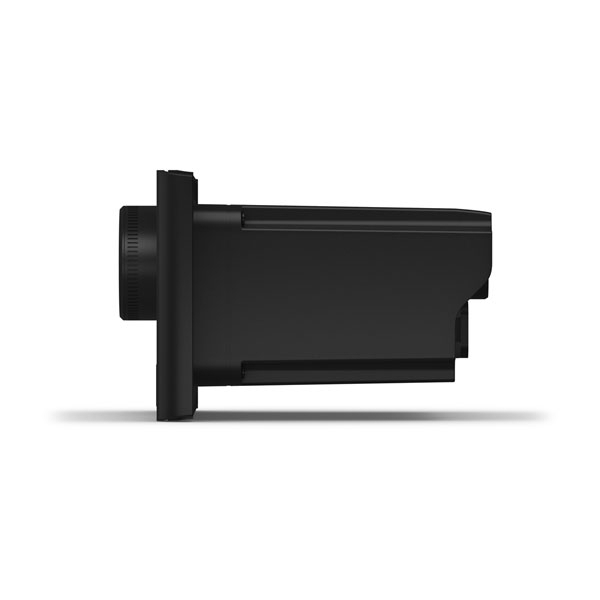

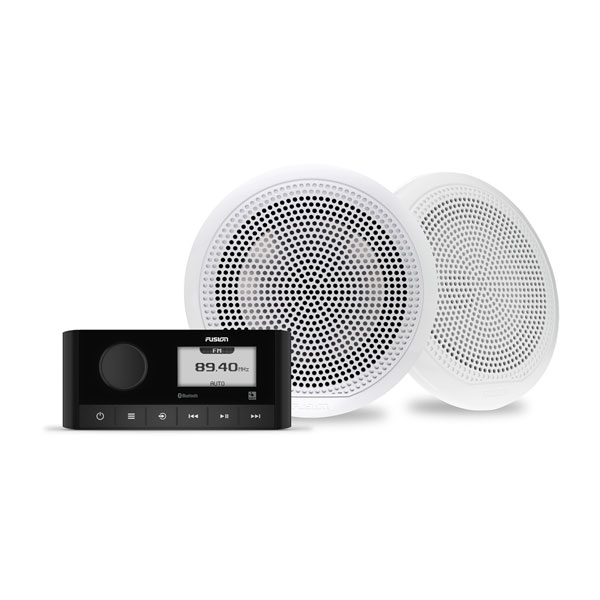

Fusion MS-RA60 Stereo Package with EL Classic Speakers

#9182565
Warranty Badge - 12-Months
Item no longer available - contact us for an alternative.
Calculate Shipping
Australia Wide
includes any items in cart

Click on the image above to view full picture

More Views

The item you're looking at is currently unavailable or has limited stock, how about this one instead?
Details

Details

Outfit your boat with an exceptional sound system at an outstanding value. A Fusion marine stereo and or and put the perfect soundtrack at your fingertips.

IPX6 AND IPX7 INGRESS PROTECTION

Designed and engineered for the harsh marine environment, the Fusion stereos have an front panel to perform and last on board.

MODERN DESIGN AND AESTHETICS

Providing uniformity across the helm, the black front face blends seamlessly into black glass panels, complementing other electronics and MFDs for a tidy and elegant installation.


Features:
  • Enjoy your music ASAP. Your marine stereo and both speakers come ready to install.
  • Easily control music from your compatible Garmin MFD1, smart device or Garmin watch.
  • Built-in Class D amplifier brings aboard higher efficiency and greater output.
  • Multi-Zone Technology makes you the captain of two separate audio zones.
  • Conveniently update software via Bluetooth technology2 from the Fusion-Link app on your compatible smart device.
  • Grow your audio system with compatible Fusion speakers, subwoofers and amplifiers.

What's In the Box
    MS-RA60 Stereo and EL Sports Speaker Kit
    • MS-RA60 marine stereo
    • One pair of EL Series sports grey marine speakers
    • AM/FM stealth antenna
    • Two 19 ft (6 metre) speaker wires
    • Dust cover

    • Wiring harnesses and mounting accessories
    • Mounting gasket
    • Four 6-gauge, self-tapping screws
    • Two screw covers
    • Power and speaker wiring harness
    • Auxiliary-in, line-out, and subwoofer-out wiring harnesses
    • 12 Phillips stainless steel mounting screws (4.2 mm x 25.4 mm (8 gauge x 1''))
    MS-RA60 Stereo and EL Classic Speaker Kit
    • MS-RA60 marine stereo
    • One pair of EL Series classic white marine speakers
    • AM/FM stealth antenna
    • Two 19 ft (6 metre) speaker wires
    • Dust cover

    • Wiring harnesses and mounting accessories
    • Mounting gasket
    • Four 6-gauge, self-tapping screws
    • Two screw covers
    • Power and speaker wiring harness
    • Auxiliary-in, line-out, and subwoofer-out wiring harnesses
    • 12 Phillips stainless steel mounting screws (4.2 mm x 25.4 mm (8 gauge x 1''))
    MS-RA210 Stereo and XS Sports Speaker Kit
    • MS-RA210 marine stereo
    • One pair of XS Series sports grey marine speakers
    • AM/FM stealth antenna
    • 6 ft (2 metre) NMEA 2000 drop cable
    • Two 19 ft (6 metre) speaker wires
    • Dust cover

    • Wiring harnesses and mounting accessories
    • Mounting gasket
    • Four 6-gauge, self-tapping screws
    • Two screw covers
    • Power and speaker wiring harness
    • Auxiliary-in, line-out, and subwoofer-out wiring harnesses
    • 12 Phillips stainless steel mounting screws (4.2 mm x 25.4 mm (8 gauge x 1''))
    MS-RA210 Stereo and XS Classic Speaker Kit
    • MS-RA210 marine stereo
    • One pair of XS Series classic white marine speakers
    • AM/FM stealth antenna
    • 6 ft (2 metre) NMEA 2000 drop cable
    • Two 19 ft (6 metre) speaker wires
    • Dust cover

    • Wiring harnesses and mounting accessories
    • Mounting gasket
    • Four 6-gauge, self-tapping screws
    • Two screw covers
    • Power and speaker wiring harness
    • Auxiliary-in, line-out, and subwoofer-out wiring harnesses
    • 12 Phillips stainless steel mounting screws (4.2 mm x 25.4 mm (8 gauge x 1''))

Specifications:
Stereo Specifications

Physical dimensions (HxWxD)

MS-RA60: 2.68'' x 6.18'' x 4.06'' (68 x 156.9 x 103.2 mm)

MS-RA210: 2.68'' x 6.18'' x 4.99'' (68 x 157 x 126.6 mm)
Weight MS-RA60: 11.1 oz (316 g)

MS-RA210: 12.4 oz (350 g)
Water rating IPX6 and IPX7 (front panel only, when properly installed)
Power input 10.8-16 VDC
Operating temperature range 32 degrees to 122 degrees F (0 degrees to 50 degrees C)
Current (max.) 15 A
NMEA 2000 LEN MS-RA210: 1 (50 mA)
Bluetooth wireless range Up to 30 ft (10 metres)
ANT wireless range Up to 10 ft (3 metres)
Wireless frequencies/protocols Bluetooth 2.4 GHz @ +12 dBm nominal

Compass-safe distance 5.9'' (150 mm)
Display MS-RA60: 2.3'' perimeter bonded monochrome dot matrix LCD

MS-RA210: 2.7'' optically bonded colour LCD
Built-in amplifier Class-D (minimum 4 Ohm impedance)
Peak power MS-RA210: 200 W

MS-RA60: 180 W
Rated power output (4 Ohm) MS-RA60: 22 W rms x 4 @ 14.4 V input < 10% THD

MS-RA210: 26 W rms x 4 @ 14.4 V input < 10% THD
Built-in Digital Signal Processing MS-RA210: Yes (with preconfigured DSP profiles)
Fusion-Link control MS-RA60: Yes (with smartphone and Garmin watch)

MS-RA210: Yes (with MFD, smartphone and Garmin watch)
Multi-Zone technology 2 zones
Bluetooth wireless technology Yes
ANT wireless technology Yes
SiriusXM-ready MS-RA210: Yes (requires SiriusXM Connect vehicle tuner)
DAB+ ready MS-RA60: Yes (DAB tuner built in)

MS-RA210: Yes (requires DAB100A antenna module)
NRX remote compatibility MS-RA210: Yes
Multi-language interface MS-RA60: Dutch, English, French, German, Italian, Spanish

MS-RA210: Bulgarian, Chinese (Simplified/Traditional), Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (BR/PT), Slovenian, Spanish, Swedish, Thai, Turkish
Software updates MS-RA60: Over-the-air software updates via Bluetooth wireless technology using the Fusion-Link app

MS-RA210: USB
Warranty 1 year
Sources MS-RA60: AM/FM/Bluetooth/AUX x1/DAB+ (available in Europe and Australia only)

MS-RA210: AM/FM/Bluetooth/USB audio/iPhone/iPod/AUX x1/MTP/SiriusXM-Ready (USA only, requires optional SiriusXM Connect vehicle tuner)/DAB+ ready (available in Europe and Australia only)
Auxiliary input One RCA input (AUX)
NMEA 2000 MS-RA210: 1 port
USB 2.0 MS-RA210: 1 port
SiriusXM satellite radio MS-RA210: 1 port (requires SiriusXM Connect vehicle tuner, does not support traffic and weather)
AM/FM radio One Motorola antenna connector port
Speaker MS-RA60: 4 x speaker connections (2 zone amplified)

MS-RA210: 2 x speaker connections (2 zone amplified)
RCA Pre-out (left, right and subwoofer) MS-RA60: 1 zone (requires external amplification)

MS-RA210: 2 zones (requires external amplification)
Line out MS-RA60: Zone 1 (L + R, requires external amplification)

MS-RA210: 2 (1 x L + R per zone, requires external amplification)
Subwoofer out MS-RA60: Zone 1 (requires external amplification)

MS-RA210: 1 x mono output (requires external amplification)
Speaker Specifications
Physical dimensions (HxWxD) EL Speaker: 6.93'' x 2.32'' (176 x 59 mm)

XS Classic Speaker: 6.97'' x 3.19'' (177 x 81 mm)

XS Sports Speaker: 6.97'' x 3.27'' (177 x 83 mm)
Water rating IP65
Configuration EL Speaker: Full range

XS Speaker: Coaxial
Speaker size 6.5''
Peak power (Watts) EL Speaker: 80 W

XS Speaker: 200 W
RMS power (Watts) EL Speaker: 20 W

XS Speaker: 50 W
Sensitivity (1 watt/1 metre) EL Speaker: 88 dB

XS Speaker: 91 dB
Frequency response EL Speaker: 45 Hz-16 kHz

XS Speaker: 80 Hz-18 kHz
Nominal impedance 4 ohm
Recommended amplifier power (RMS) EL Speaker: 20-40 W/Ch

XS Speaker: 20-150 W/Ch
Operating temperature range 32 degrees to 122 degrees F (0 degrees to 50 degrees C)
Voice coil diameter EL Speaker: 0.79''

XS Speaker: 1.18''
Cone material Polypropylene cone with cloth surround
Tweeter type XS Speaker: Aluminium dome
Compass-safe distance EL Speaker: 100'' (254 cm)

XS Speaker: 122'' (310 cm)
Warranty EL Speaker: 1 year

XS Speaker: 3 years
Mounting diameter clearance EL Speaker: 5.12'' (130 mm)

XS Speaker: 5.31'' (135 mm)
Mounting depth clearance EL Speaker: 1.69'' (43 mm)

XS Speaker: 2.64'' (67 mm)
Sealed enclosure volume XS Speaker: 0.28 cubic ft (8 L)
