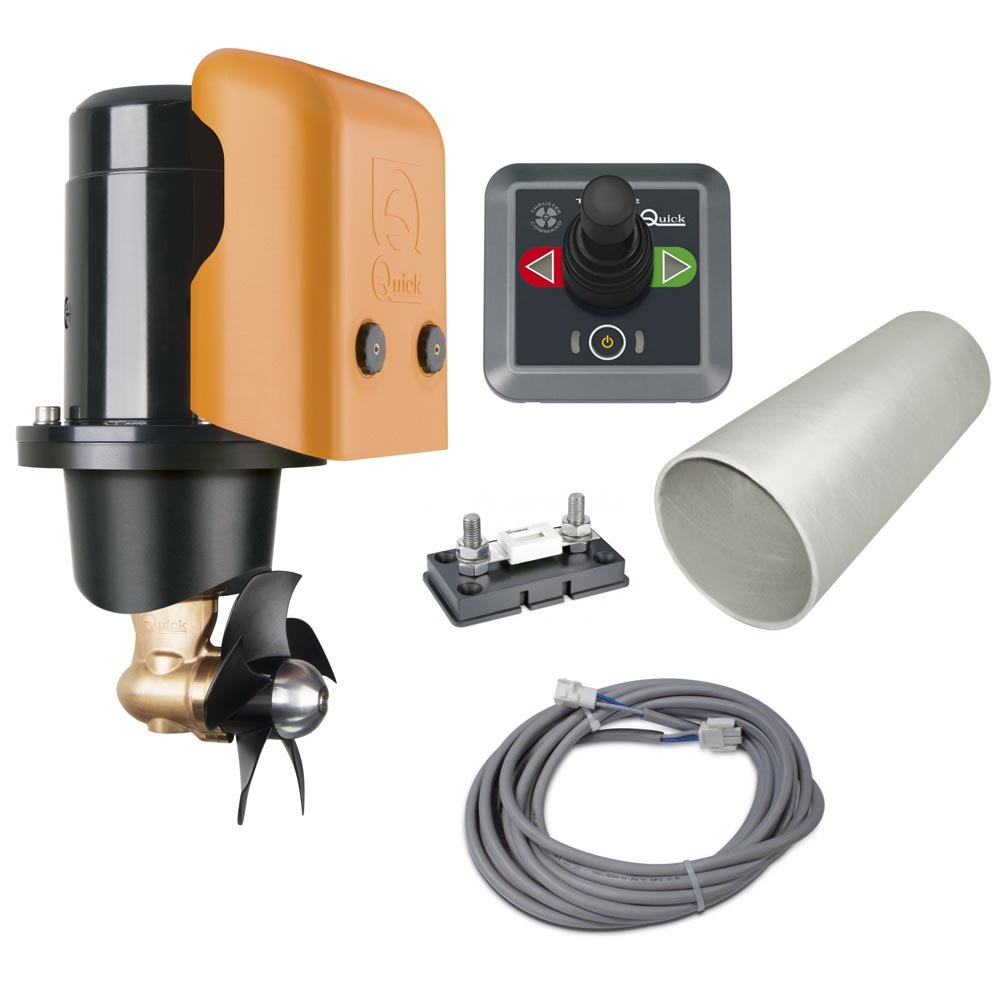

Quick BTQ 125 DC Bow Thruster Kit 30KGF 12V

Performance and reliability

The Quick BTQ 125 DC Bow Thruster is a single propeller bow thruster composed of sturdy composite material. The solenoid is protected, the gearbox is composed of bronze, the zinc anode is independent of the gearbox which allows an easy replacement and is also equipped with an elastic coupling. This kit is supplied with a tunnel and joystick controller. It also includes the cable and heavy-duty fuse with holder.

Quick BTQ 125 DC Bow Thruster Features:

• Single propeller made from sturdy composite material
• The recommended boat length for this model is 6.0-8.5m. This may vary depending on boat type and load
• 125mm Tunnel, 1.5 Kw, (2 HP), with 30 Kgf thrust
• Solenoid is protected by sturdy composite material
• Gearbox constructed from bronze
• Zinc anode independent of the gearbox for easy replacement
• Equipped with flexible coupling
• 12 volt supply required
• tunnel and joystick controller included

Quick BTQ 125 DC Bow Thruster Specifications:

• Propulsion system: Single propeller
• Tunnel diameter: 125mm (5")
• Motor power: 1,5 kW
• Voltage: 12V
• Thrust: 30 KgF (Kilogram-Force) (62 lb)
• Weight: 18 kg (40lb)
• Boat size: 6-8, 5 m (20 – 28 ft)
