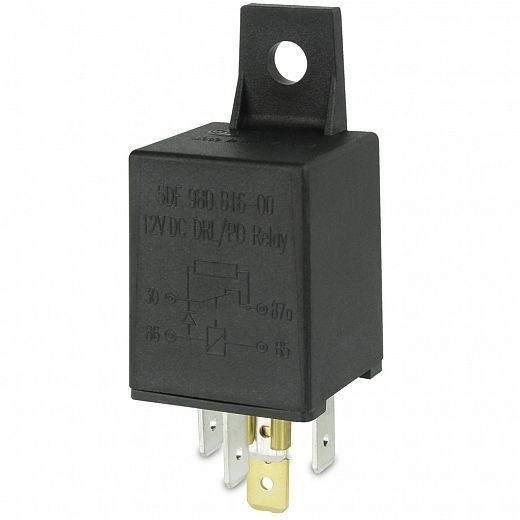

Hella Marine Dual Function Safety DayLights Controller 12v for 1009/5619/5630/5631

Click on the image above to view full picture

More Views

The item you're looking at is currently unavailable or has limited stock, how about this one instead?
Hella Marine Bay15D Base Navigation Lamp Bulb

Hella Marine Bay15D Base Navigation Lamp Bulb
Details

Details

Specially designed dual function controller to turn into front position lamps at night.

The controller is connected and activated by the headlamp of the vehicle and reduces the current to the Safety DayLights thus turning them into road legal front position lamps.

Only one controller is required for a pair of HELLA Safety DayLights.

Please note: Legally required spacing of front position lamps and only one pair of front position lamps is legally permitted.

Specifications:
To Suit
ControllerSafety DayLights
P/N 9.5630.03P/Ns 1009, 5619, 5630, 5631
P/N 9.5636.03P/N 5636
P/N 9.5630.04P/Ns 1009-24V, 5619-24V, 5630-24V, 5631-24V
P/N 9.5636.04P/N 5636-24V

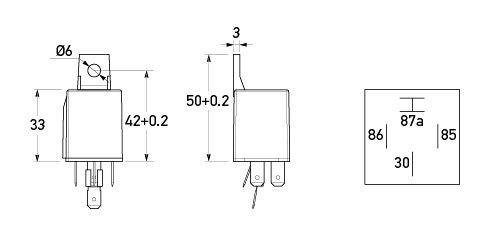

Wiring Specifications
Terminal NumberConnect to
30Ignition (+)
85Earth return (-)
86Front position or headlamps (+)
87ASafety DayLights (+)
