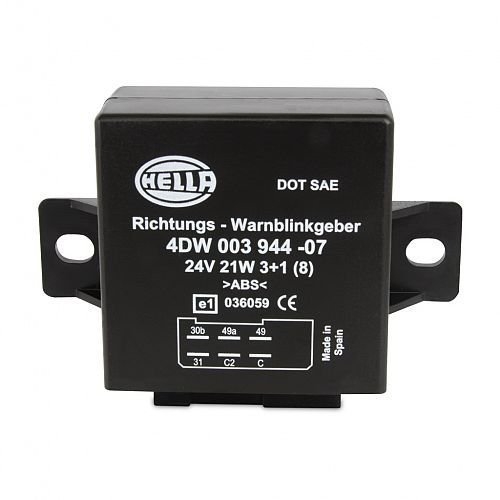

Hella Marine Electronic Flasher Unit 24V 6 Pin 3+1

Click on the image above to view full picture

More Views

The item you're looking at is currently unavailable or has limited stock, how about this one instead?
Hella Marine Trailer 15 Pole Spiral Cable 24V

Hella Marine Trailer 15 Pole Spiral Cable 24V
ONLY $259.00
Details

Details

For heavy trucks with trailers. With mounting bracket. To operate 3 lamps on either side of towing vehicle, plus an additional lamp on either side of a trailer. Separate pilot lamp indicates operation of flasher lamp on the trailer. Incorporates hazard warning flasher system when used in conjunction with HELLA switch P/N 5227.

Specifications:
Maximum Load3+1 (8) x 21W

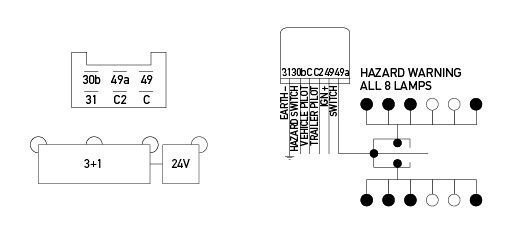

Pin Designations
Terminal NumberDescription
49/XFlasher input (+)
49a/LFlasher output (+) to lamps or indicator switch
30bFlasher input (+) from hazard switch
31Earth (-)
C/C1/CP/PVehicle pilot lamp output (+)
C21st trailer pilot lamp output (+)
