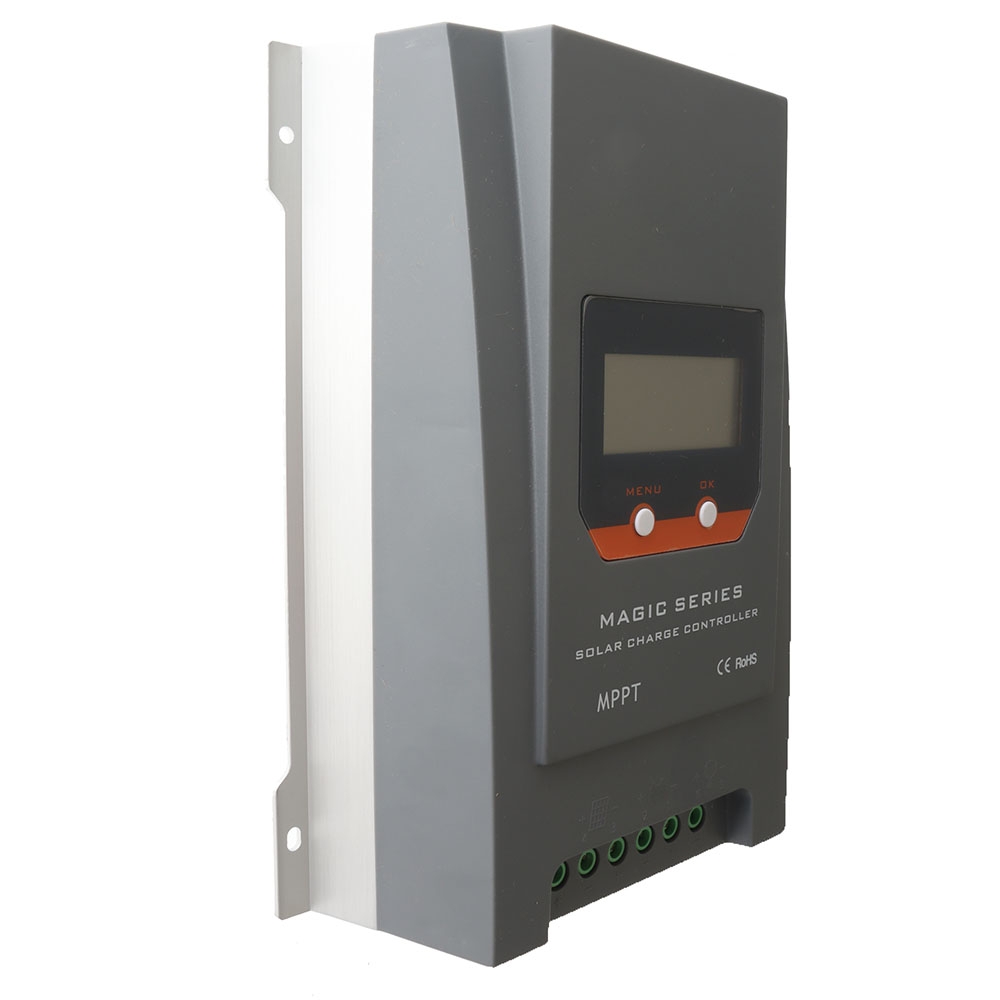

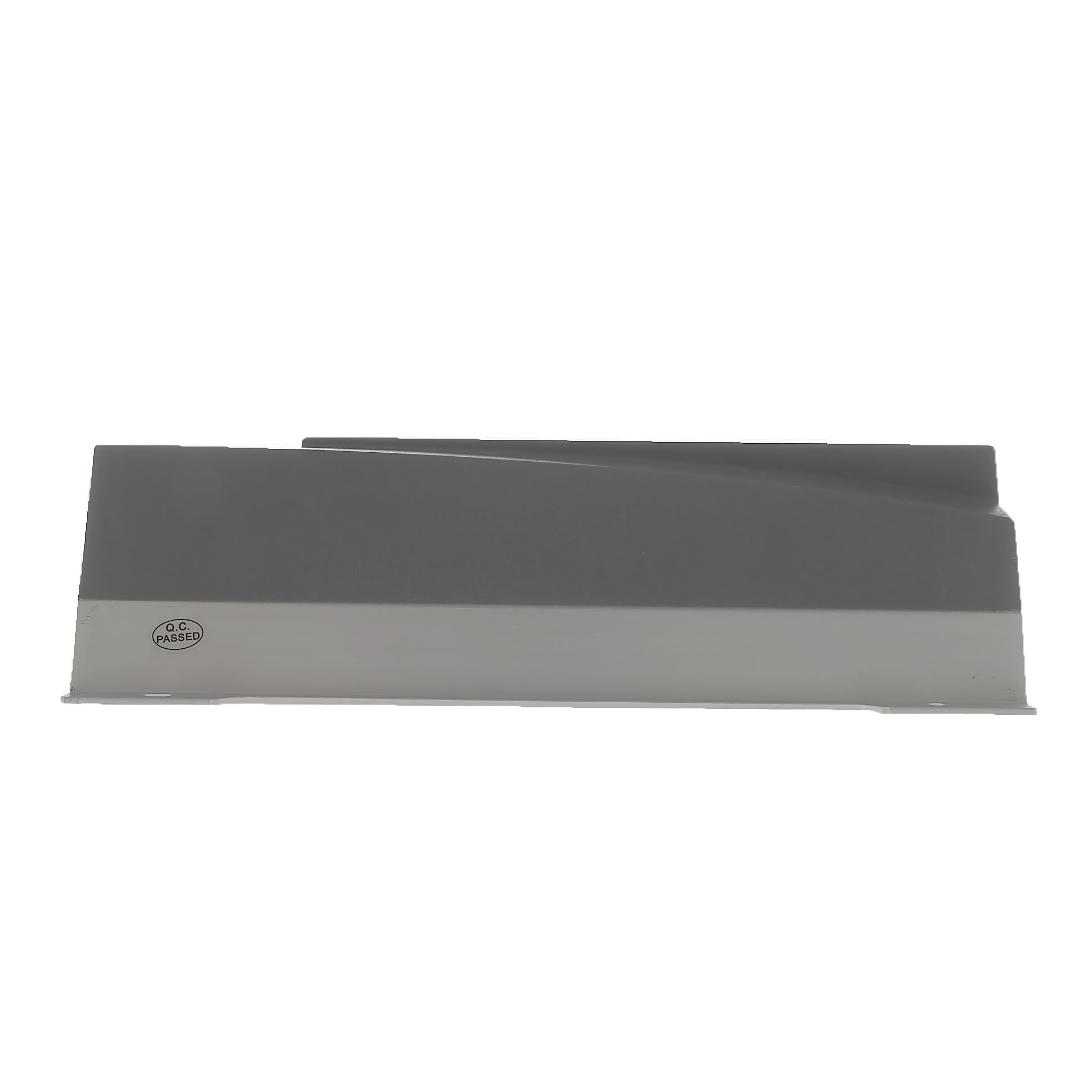

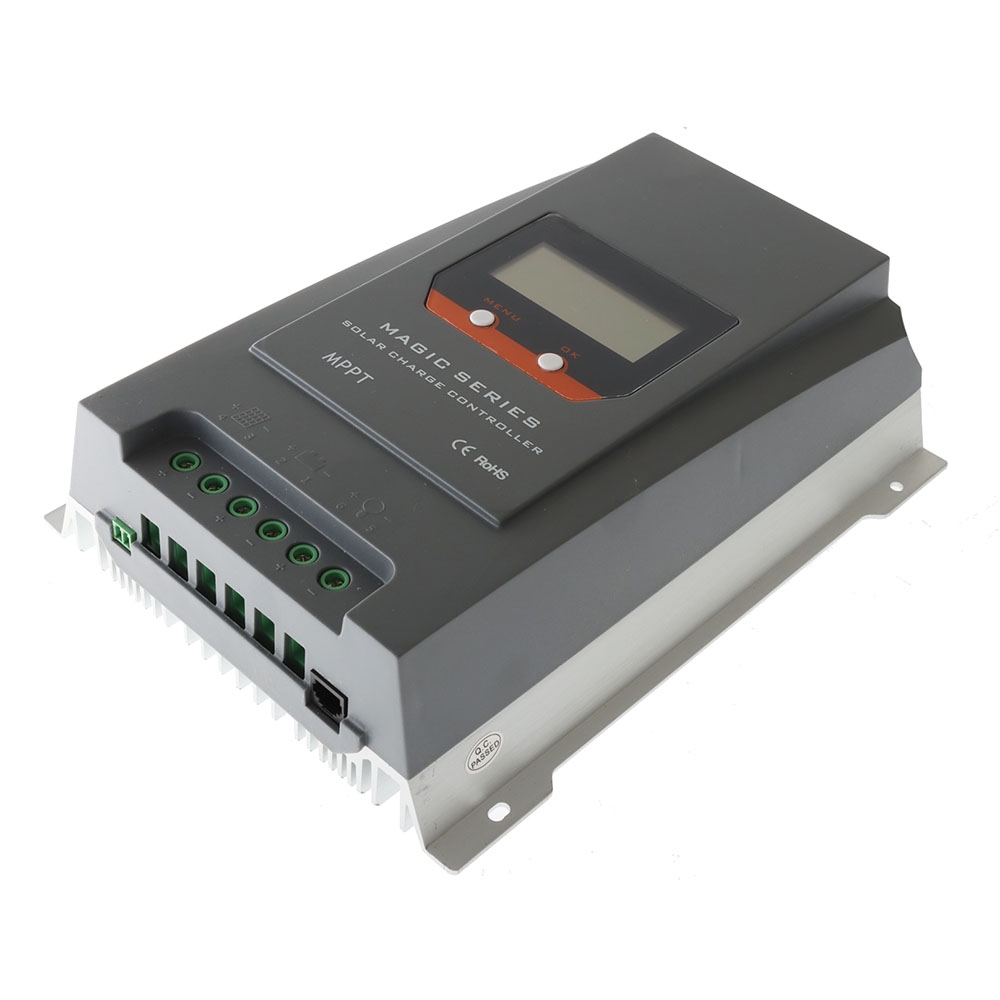

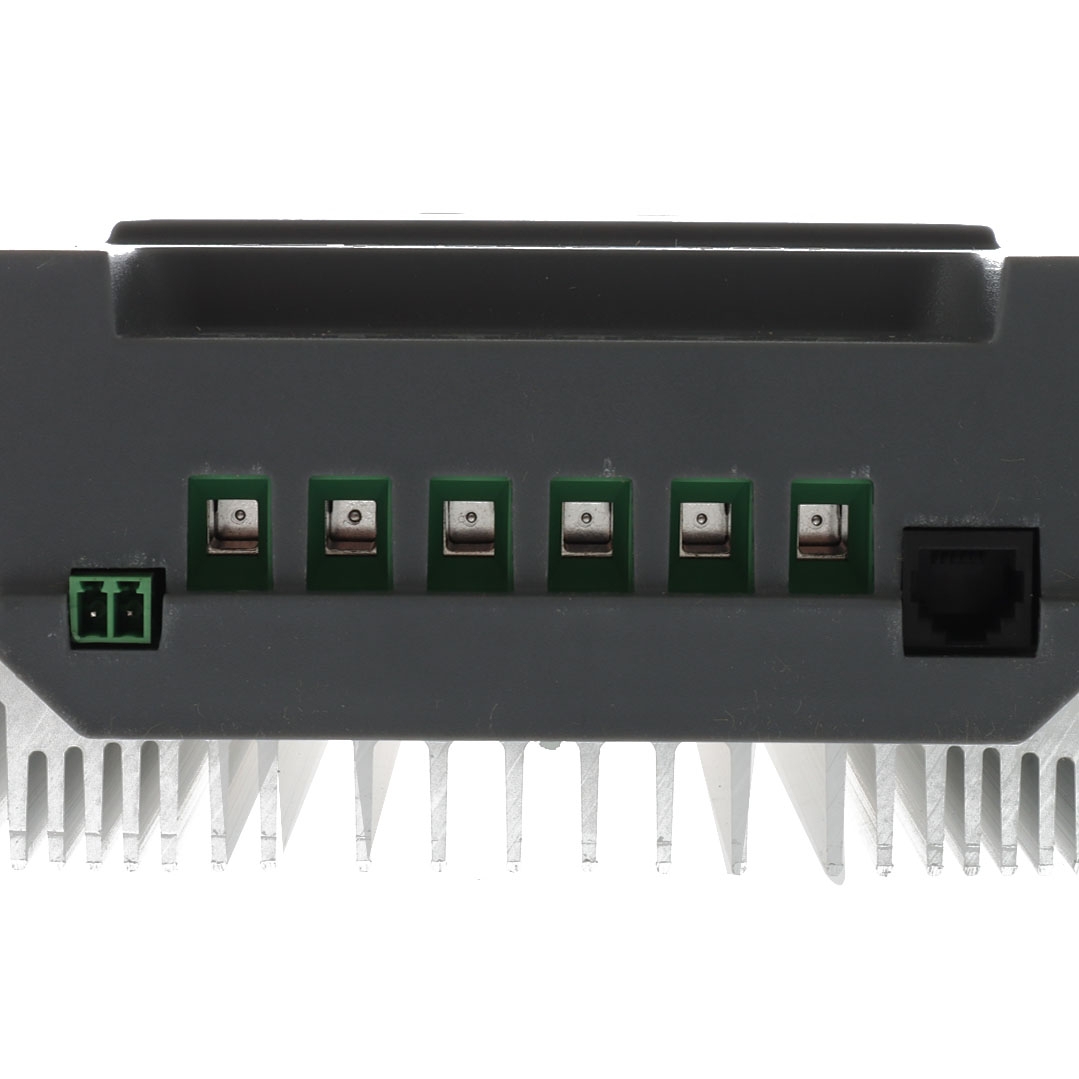

MPPT Smart Solar Charger Controller 30A 12/24V

#9177938
Warranty Badge - 12-Months
In Stock - Ready to Ship
Calculate Shipping
Australia Wide
includes any items in cart
Why pay $229.00
ONLY $169.00
SAVE $60.00!

Seen a lower price? Ask us to beat it

Add Items to Cart

Click on the image above to view full picture

More Views

Details

Details

Raise energy conversion efficiency

The MPPT Smart Solar Charger Controller adopts MPPT (maximum power point tracking algorithm) control algorithm, which improves the efficiency of solar system energy due to the capacity to quickly track the maximum power point in any environment. The MPPT Solar Charge Controller also adopts the RS485 communication protocol, which can meet monitoring demands. It can be used for solar telecom base station, solar BTS, solar household system, solar street lamp system and solar monitoring systems.

MPPT Smart Solar Charger Controller Features:
  • Innovative MPPT technology - tracking efficiency: 99.9%, conversion efficiency up to 97%
  • Real-time LCD display
  • Supports 3 charging options: Sealed, Gel, Liquid
  • Two navigation buttons
  • 12/24V automatic, recognition, temperature compensation, perfect EMC design
  • 4-Stage charge management: MPPT, Boost, Equalisation, Float
  • Fully automatic electronic protect function

MPPT Smart Solar Charger Controller Specifications:

Battery Parameters
  • Model: MT3010
  • Max charging current: 30A
  • System voltage: 12V/24V automatic recognition
  • MPPT charging voltage: <14.5V/29.0V @ 25°C
  • Boost voltage: 14.5V/29.0V @ 25°C
  • Equalisation voltage: 14.8V/29.6V @ 25°C
  • Float voltage: 13.7/27.4V @ 25°C
  • Low voltage disconnect: 10.8~11.8V/21.6~23.6V; SOC1~5
  • Low voltage reconnect: 11.6~12.8V/23.2V~25.6V
  • Overcharge protect: 15.5V/31.0V
  • Max battery voltage: 35V
  • Temp compensation: -4.17mV/K per cell (Boost, Equal), -3.33mV/K per cell (Float)
  • Battery type: AGM, Liquid, GEL

Panel Parameters
  • Max solar voltage: 100V (-20°C), 90V (25°C)
  • Max input power: 390/780W
  • Dusk/Dawn detect volt.: 8.0V/16.0V
  • MPPT tracking range: (Battery Voltage+1.0V) ~Voc*0.9*

Load
  • Output current: 30A
  • Load mode: Always on, Dusk to Dawn, Evening, Manual

System Parameters
  • Max tracking efficiency: >99.9%
  • Max charge conversion: 98.00%
  • Dimensions: 189 x 255 x 69 mm
  • Weight: 1.8kg
  • Self consumption: ≤8mA (12V); ≤12mA (24V)
  • Ambient temperature: -20~+55°C
  • Storage temperature: -25~+80°C
  • Ambient humidity: 0~100%RH
  • Protection degree: IP32
  • Max altitude: 4000m
