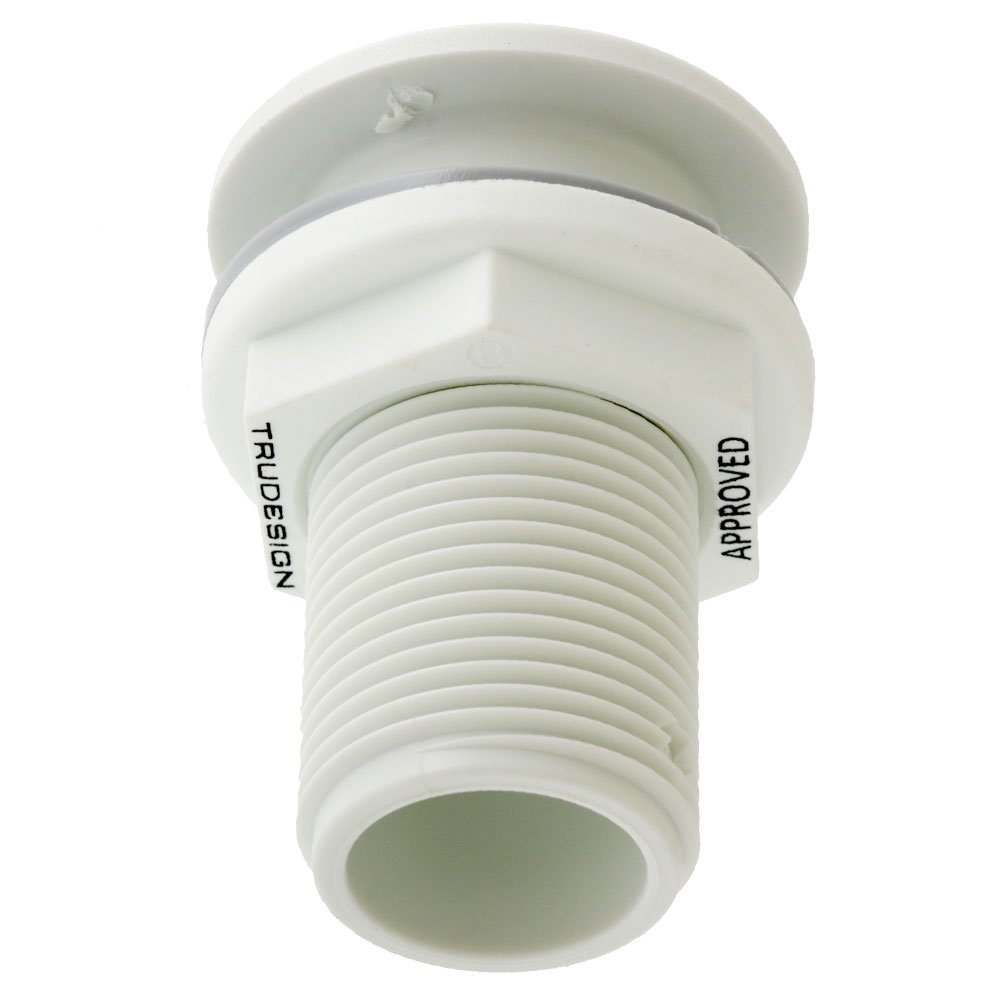

TruDesign Domed Skin Fitting 1in BSP White
Deliver to:
New South Wales 2000,
AU
Estimated:
$13.99
Buy now, pay later & Finance Options
Find Local Store
Report incorrect product information
Better than traditional metallic fittings
Suitable for underwater use, the TruDesign Domed Skin Fittings are cost-effective fittings that are strong, tough and lightweight. Designed and made in New Zealand, the Skin Fitting body and nut are moulded from a glass-reinforced nylon composite. High-strength, high-modulus glass fibres provide dramatic strength, stiffness, toughness and dimensional stability. These properties allow a significant weight reduction over metallic fittings. TruDesign Skin Fittings eliminate the corrosion and electrical bonding problems associated with metallic fittings.
TruDesign Domed Skin Fitting Features:
- Complies to ISO standard 9093:2021 by the International Marine Certification Institute and Type approved by Bureau VERITAS. (Note: excludes ½” size)
- Meets the ABYC H-27 500Lb static load test for sizes 1" through 3". Note: TruDesign ABYC Load Bearing Collar is required for 1" size to comply
- Suitable for all marine conditions from - 40°C to +110°C
- Works with many hull types - aluminium, steel, wood or GRP hulls
- UV Resistant - will not degrade or discolour from the sun’s ultraviolet rays
- Chemical Resistant - unaffected by diesel, petrol, household chemicals, and antifouling paints
- High quality surface finish, will not discolour and can be painted with all types of antifouling
TruDesign Domed Skin Fitting Specifications:
| Size | Length | Weight | Thread Size x Length | Cutout Size | Head Diameter | Hex Size | Internal Diameter |
|---|---|---|---|---|---|---|---|
| 1/2in BSP | 72mm | 35g | 13 x 66mm | 22mm | 35mm | 28mm | 12mm |
| 3/4in BSP | 71mm | 46g | 19 x 66mm | 27mm | 41mm | 34mm | 17mm |
| 1in BSP | 71mm | 68g | 25 x 66mm | 34mm | 52mm | 42mm | 23mm |
| 1-1/4in BSP | 92mm | 117g | 32 x 86mm | 42mm | 65mm | 52mm | 30mm |
| 1-1/2in BSP | 91mm | 142g | 38 x 84mm | 48mm | 74mm | 60mm | 36mm |
| 2in BSP | 122mm | 223g | 51 x 114mm | 60mm | 93mm | 75mm | 48mm |
