Reliable power management system

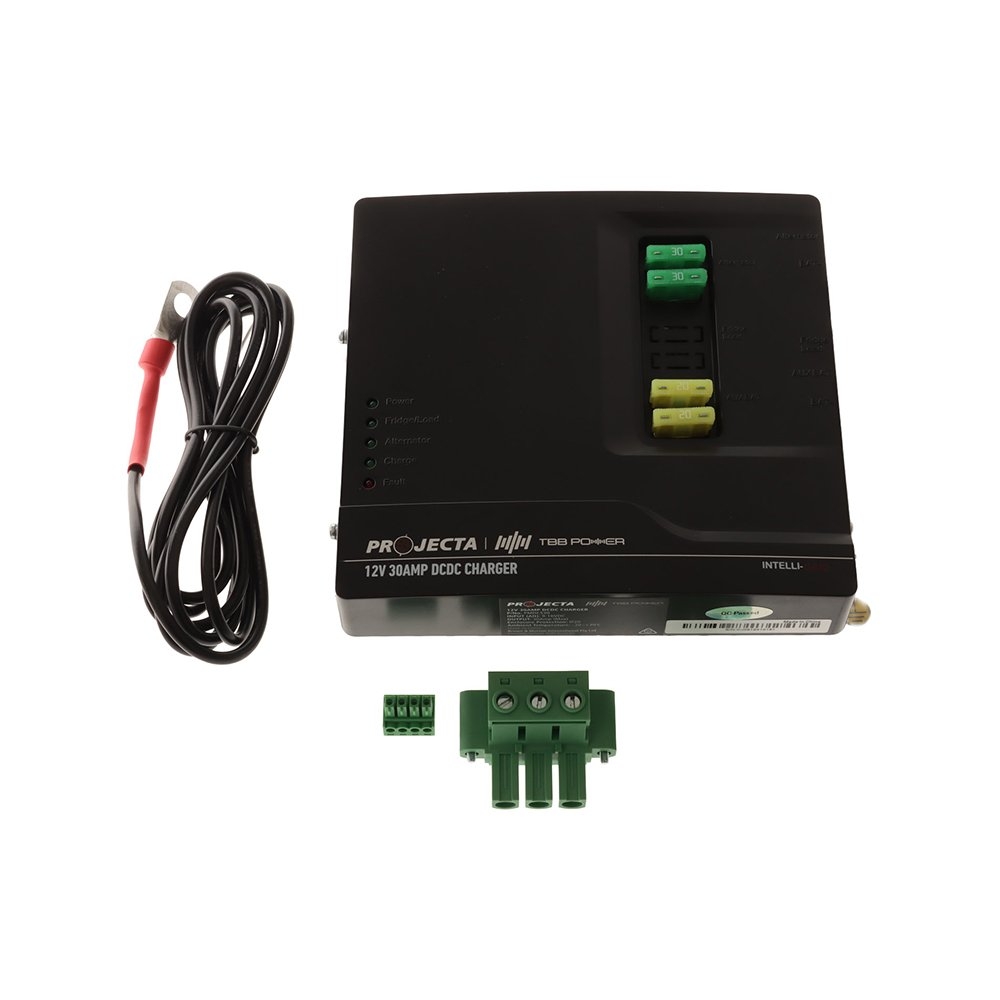

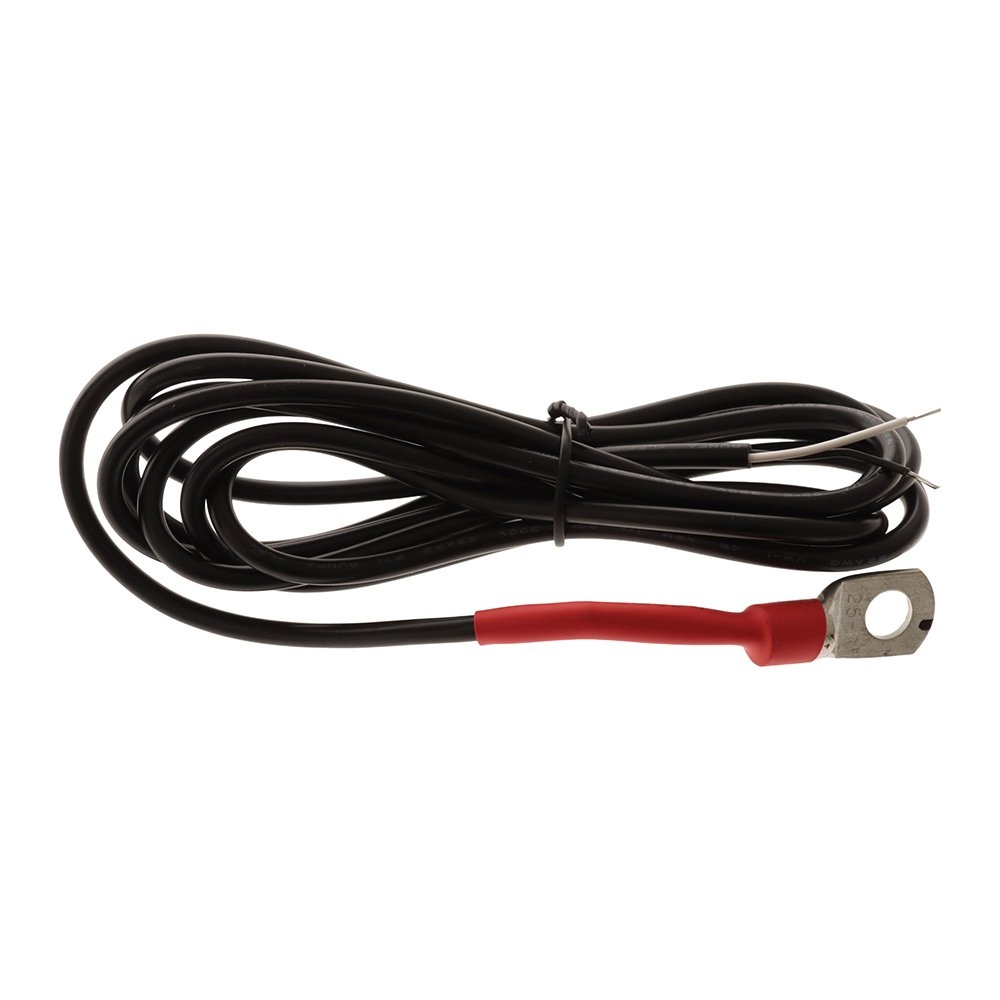

The Projecta PMDCS30 Intelli-Grid Smart DC-DC Charger is designed to integrate with INTELLI-RV or INTELLI-GRID battery/power management systems, but it can also function as a standalone dual battery charger. It comes with stripped and tinned, labelled input and output wiring for ease of installation.
Charging Type
DC to DC Charging used to compensate for any voltage drop between the alternator and the tow vehicle, optimising charge to the battery.
Adaptive Input and Output
Adaptive input adapts to smaller cables or excessive runs without overloading wiring.
Multi-Chemistry
Adjustable chemistry designed for use on all different types of batteries including Gel, AGM, Wet and Lithium.
Ignition Override
Can act as an ignition override for smart alternators.
Temperature Compensation
Temperature compensation to eliminate effects of a change in temperature.
Projecta PMDCS30 Intelli-Grid Smart DC-DC Charger Features:
- Adaptive charge – adapts to smaller cables or excessive runs by adjusting the charge rate to avoid overloading wiring
- Non-isolation design with maximum efficiency of 96%
- Euro-6 engine (smart alternator) compatible
- Built-in multi-stage charging algorithm
- Built-in automatic temperature and voltage compensated charging
- Built-in fuse protection

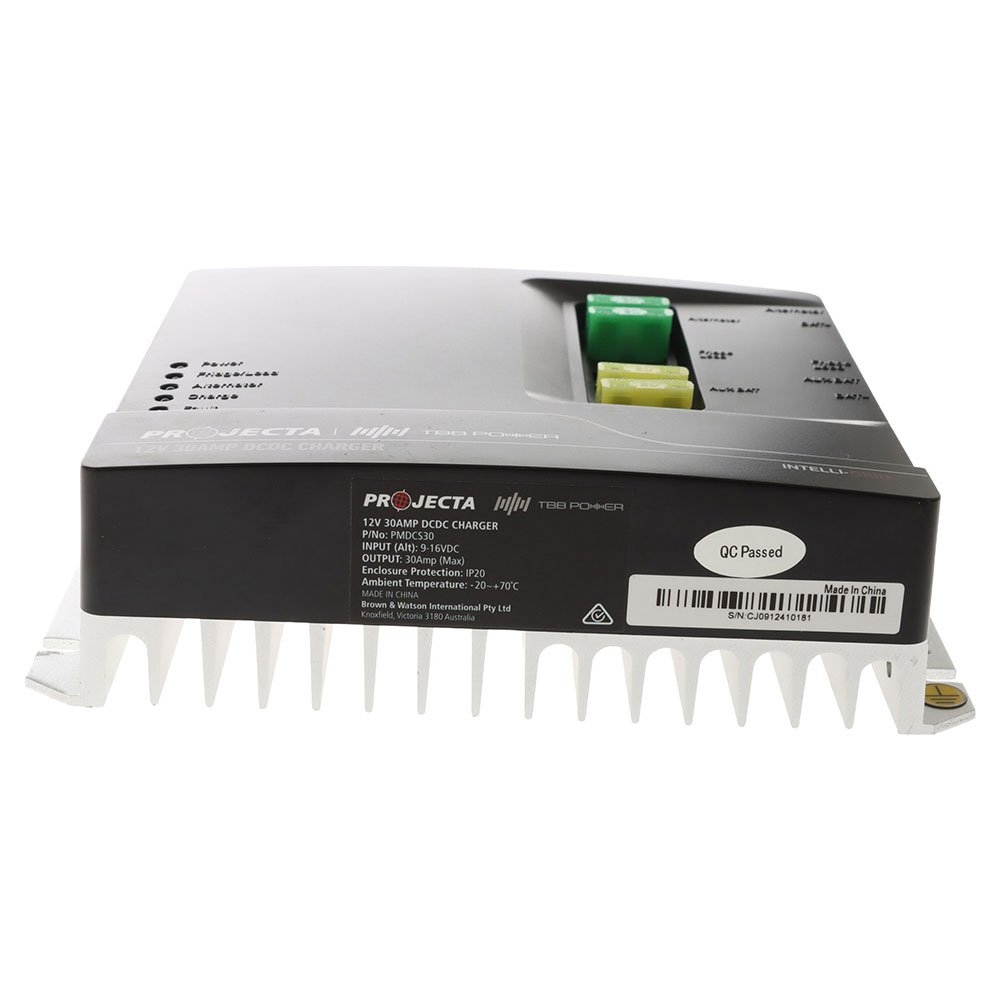

- Built-in heat sink for cooling

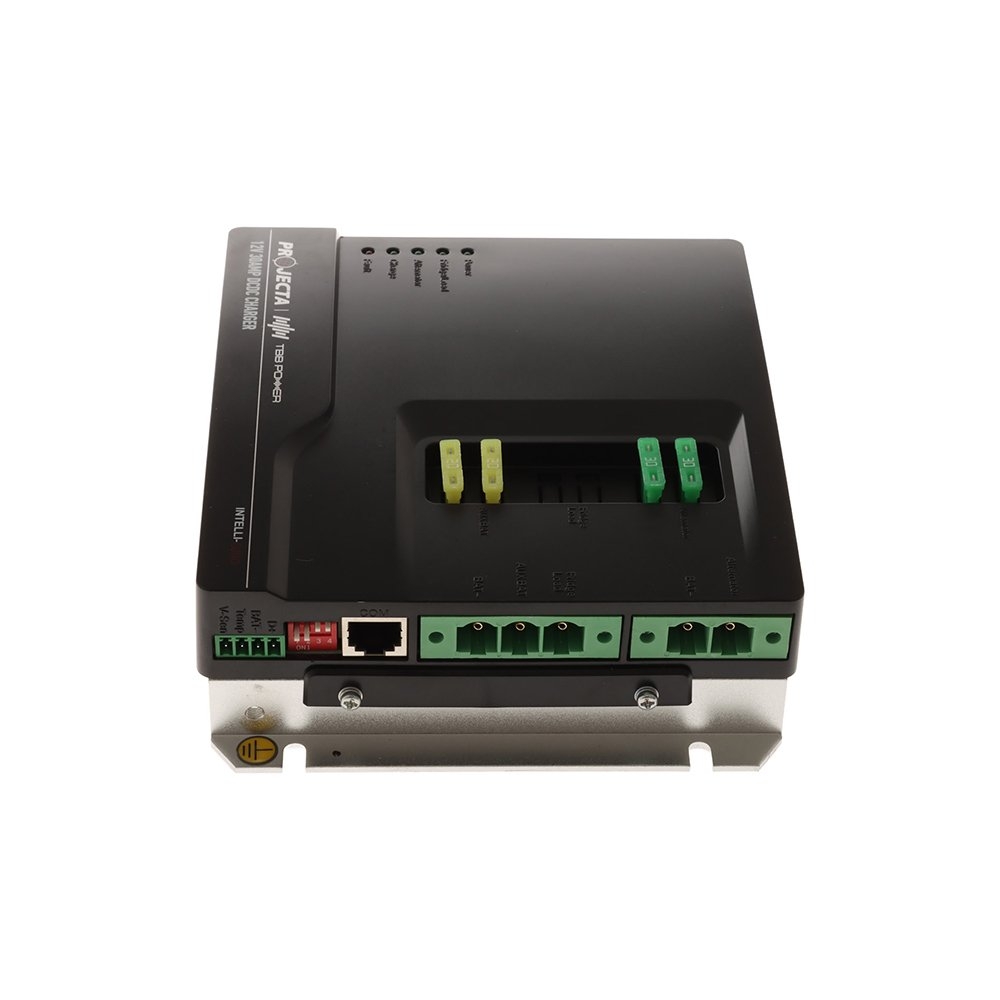

- RS485 communication port for future options and upgrades
- Protection against input/output over voltage, output over current, output short circuit, internal over temperature, battery over temperature
- Adjust current outputs and select battery type via dip switches
Projecta PMDCS30 Intelli-Grid Smart DC-DC Charger Specifications:
- Part number: PMDCS30
- Alternator input voltage range (Intelligent type): 12~16VDC
- Automatic activation D+: Yes
- Absorption charge voltage: Default Setting: 14.4VDC
- Float charge voltage: Default Setting: 13.5VDC
- Charge current: <30A
- Total current of load and charging: <30A
- Maximum charging efficiency: 96%
- Temperature compensation: Default Setting: -3mV/°C/cell
- Voltage compensation: Yes
- Charge algorithm: Premium II Multi-Stage
- Protection: Battery charger over temperature, over load, short circuit
- Communication: RS485, RJ45 connector
- Storage temperature: -40°C ~70°C
- Operating temperature: -40°C ~70°C

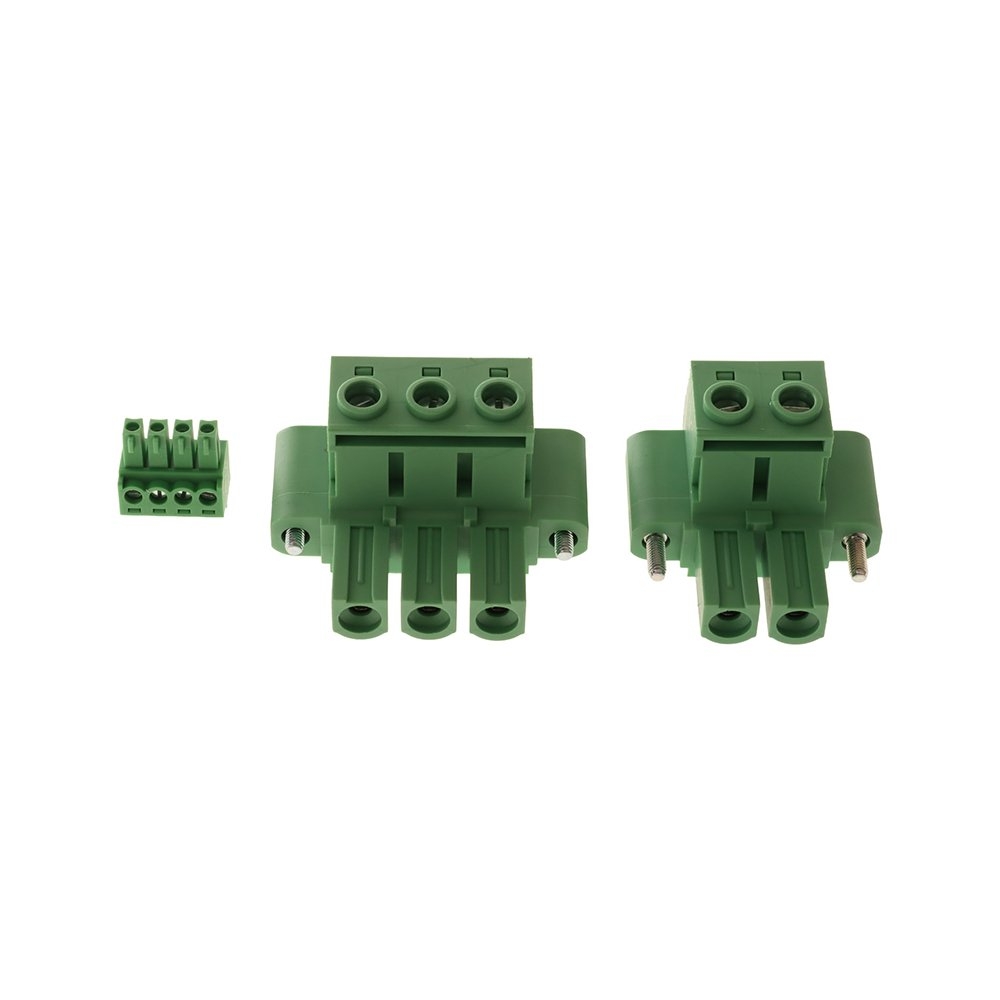

- Battery connection: Cable with connector
- Protection category: IP20
- Weight: 1.0kg
- Dimensions (H x D x D): 181 x 148 x 52 mm
- Emission: ECE 10R-06, EN61000-6-1, EN61000-6-3
