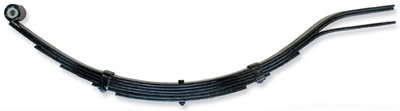

Trojan Multi-Leaf Trailer Spring
Deliver to:
New South Wales 2000,
AU
Estimated:
$59.99
Buy now, pay later & Finance Options
Find Local Store
Report incorrect product information
Suspension for your trailer
If your trailer suspension has given up, we've got a range of Trojan Multi-Leaf Trailer Springs for you. This multi-leaf slipper spring can be attached directly at one end, usually the front, with the other end attached through a shackle, a short swinging arm. The shackle takes up the tendency of the leaf spring to elongate when compressed. This suspension spring will give you a smooth ride to the beach.
Trojan Multi-Leaf Trailer Spring Specifications:
| Part No. | Capacity per Pair | No of Leaves and Sizes | O/A length / Eye to center bolt | Eye Dia |
|---|---|---|---|---|
| T260062D | 500kg | 2 - 45 x 6mm | 640 - 285mm | 16mm |
| T260063D | 750kg | 3 - 45 x 6mm | 640 - 285mm | 16mm |
| T260064D | 1000kg | 4 - 45 x 6mm | 640 - 285mm | 16mm |
| T260070D | 1250kg | 3 - 45 x 8mm | 640 - 285mm | 16mm |
| T260073D | 1500kg | 4 - 45 x 8mm | 640 - 285mm | 16mm |
| T260075D | 2000kg | 5 - 45 x 8mm | 640 - 285mm | 16mm |
| T260003D | 650kg | 3 - 45 x 6mm | 765-340mm | 1/2in |
| T260005D | 1000kg | 5 - 45 x 6mm | 765-340mm | 1/2in |
| T260006D | 1250kg | 6 - 45 x 6mm | 765-340mm | 1/2in |
| T2600010D | 1900kg | 5 - 45 x 8mm | 765-340mm | 1/2in |
Some of our product deals are strictly limited - once they're gone, they're gone! Secure yourself this amazing deal while stocks last...by clicking the Add to Order button above.
