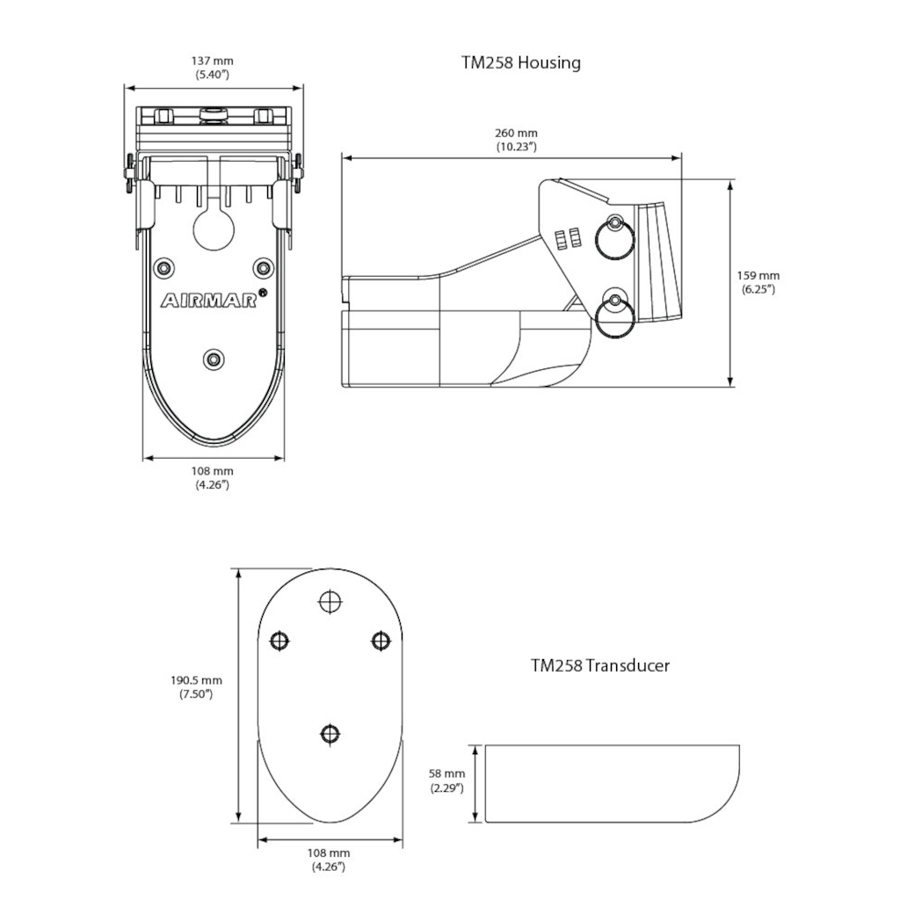

Airmar TM258-21HB 50/200kHz 1kW Transom Mount Transducer with V2 Bracket Humminbird 21-Pin
Special Order
Airmar TM258-21HB 50/200kHz 1kW Transom Mount Transducer with V2 Bracket Humminbird 21-Pin
Airmar TM258-21HB 50/200kHz 1kW Transom Mount Transducer with V2 Bracket Humminbird 21-Pin
Deliver to:
New South Wales 2000,
AU
Estimated:
$34.99
Buy now, pay later & Finance Options
Find Local Store
Report incorrect product information
1 kW
Operating at 50 and 200 kHz, the TM258 features an elliptical beam from four ceramic elements. The beamwidth is narrow at both frequencies for excellent resolution in both shallow and deep water. The TM258 comes with a rugged stainless steel mounting bracket that is easy to install and has a streamlined shape. The combination of power and sensitivity has made this the high-performing transducer of choice for use with conventional fishfinders.
Specifications:- Brand: Airmar Technology
- Connector: Humminbird 21-Pin
- Display Connector: 21HB
- Housing Material: Urethane
- Mounting Style: Transom
- Sensor Connector: MM1
- Weight: 3.6 kg (7.9 lb.)
- Common Use: Fishing
- Frequency Band: 50/200 kHz
- Transducer Functions: Depth, Temperature
- Country of Origin: USA
- Single or Dual Frequency: Conventional Dual Frequency
- Housing: Urethane/Stainless Bracket
- Max Deadrise Angle: 28 degrees
- Mix and Match Series: 9-Pin 1000 Watt
- Power Rating: 1 kW
- Cable-Length: 10 m (33')
- Transom Angle: 3 degrees to 21 degrees
- Max Vessel LOA: 10 m (33') and above
- Tilted Element: No
- Max Deadrise: Up to 28 degrees
- Max Depth: Low frequency- 647 m (2200'), High frequency- 294 m (1000')
- Conventional Beam: 15 degreesx21 degrees/3 degreesx5 degrees
Product Data Sheet
