Airmar TM260 Transom Mount Transducer 1kW 50/200kHz for Lowrance/Simrad
Airmar TM260 Transom Mount Transducer 1kW 50/200kHz for Lowrance/Simrad
Deliver to:
New South Wales 2000,
AU
Estimated:
$52.99
Buy now, pay later & Finance Options
Find Local Store
Report incorrect product information
Get crystal clear imaging with this extremely high performance Transom Transducer from Airmar

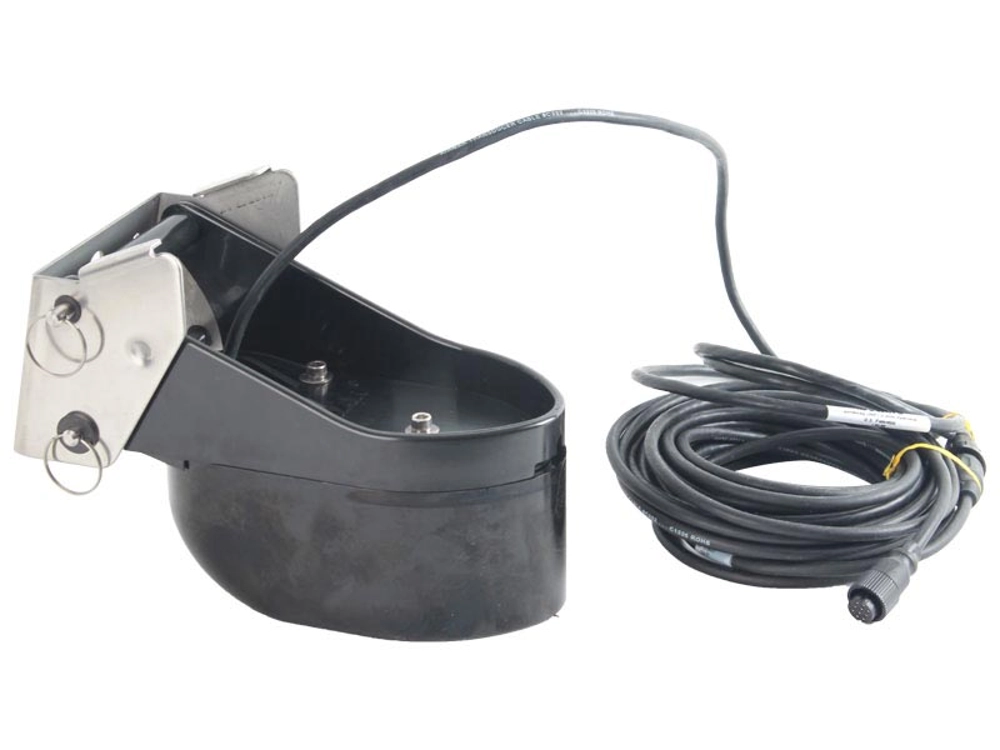

This top-of-the-line, broadband, transom-mount Airmar TM260 Transducer brings crystal clear imaging to your fishfinder. The large, 200 kHz element and the seven-element, 50 kHz array are excellent for bait and game fish separation along with detecting ground fish holding tight to the bottom. The TM260’s rugged mounting bracket is easy-to-install and has a streamlined shape that delivers high-speed performance up to 30 knots (35 MPH).
Airmar TM260 1KW Transom Mount Transducer Features:
- RMS power 1000W (works with 600W or 1000W sounders)
- Designed for bottom fishing
- Wide 19° beam at 50 kHz
- Narrow 6° beam at 200 kHz
- Depth readings up to 1800-2500 ft at 50kHz, 700-1000 ft at
200kHz
- For larger trailered boats 8 m to 12 m (25’ to 40’) with
outboards and I/O’s
- Interfaces to any 600 W or 1 kW sounder
- Depth and fast-response water-temperature sensor
- Kick-up assembly locks in the “up” position and will not damage
the transom
- Accommodates transom angles between 3° and 21°
- Urethane housing
- Blue plug connector for Lowrance/Simrad
Airmar TM260 1KW Transom Mount Transducer Specifications:
- Weight: 4 kg (8.9 lb)
- Hull Deadrise: Up to 28°
- Acoustic Window: Urethane
Airmar TM260 1KW Transom Mount Transducer Comparison
- P66 : 600W : Good : Benchmark model for comparison
- TM258 : 1kW : Better : 25 times more sensitive at 50 kHz, 16
times more sensitive at 200 kHz
- TM260 : 1kW : Superb : 50 times more sensitive at 50 kHz, 13
times more sensitive at 200 kHz
Airmar TM260 1KW Transom Mount Transducer Instruction Manual
Hull Material Recommendations:
- Fibreglass - Plastic, Bronze or Stainless Steel Housing
- Metal - Stainless Steel Housing
- Wood - Bronze or Stainless Steel Housing
