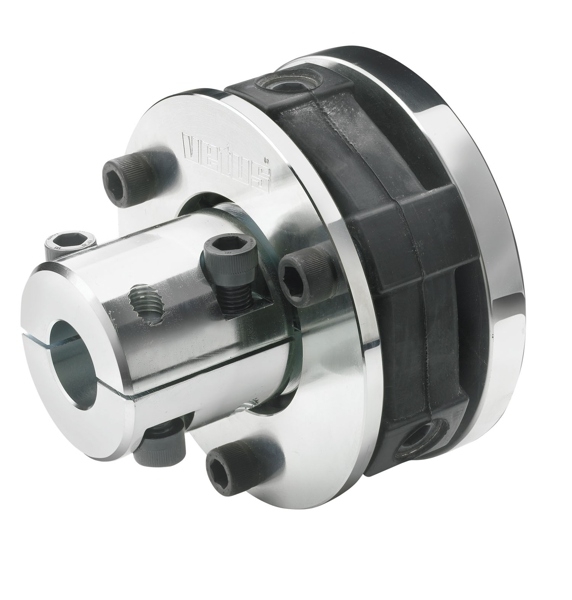

VETUS Bullflex 16 Flexible Coupling Shaft 45mm
VETUS Bullflex 16 Flexible Coupling Shaft 45mm
Deliver to:
New South Wales 2000,
AU
Estimated:
$109.99
Buy now, pay later & Finance Options
Find Local Store
Report incorrect product information

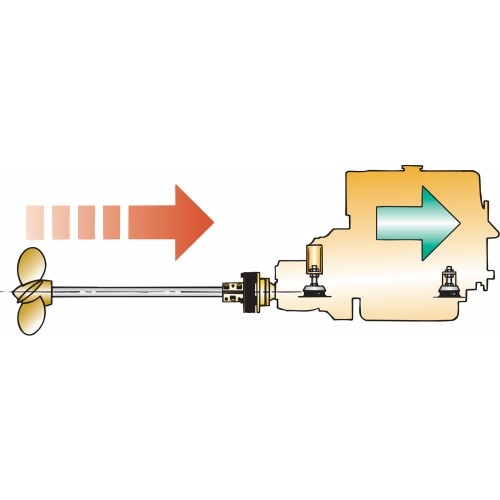

The BULFL1645 ensures optimum damping of vibrations. Excellent
alignment of the propeller shaft due to a special centering ring,
with ease of installation.
Specifications:
Product Data Sheet
Specifications:
| Type Bullflex | 16 |
|---|---|
| DIN 6270B = pleasure craft kW (HP)/100 shaft RPM | 12.6 (17.1) |
| DIN 6270A = commercial craft kW (HP)/100 shaft RPM | 9.8 (13.3) |
| Max. torque Nm DIN 6270B | 1200 |
| Max. torque Nm DIN 6270A | 935 |
| Max. RPM at zero misalignment | 4000 |
| Max. RPM at 2 degrees misalignment | 2000 |

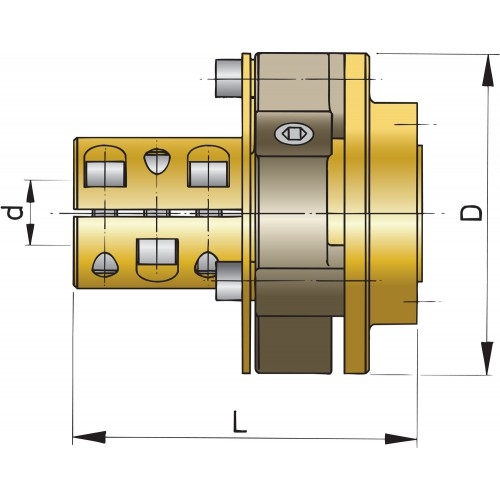

| D (mm) | 205 |
| L (mm) | 197 |
| Shaft diameter d (mm) | 45 |
Product Data Sheet
