VETUS Bullflex 2 Flexible Coupling Shaft 20mm
VETUS Bullflex 2 Flexible Coupling Shaft 20mm
Deliver to:
New South Wales 2000,
AU
Estimated:
$34.99
Buy now, pay later & Finance Options
Find Local Store
Report incorrect product information

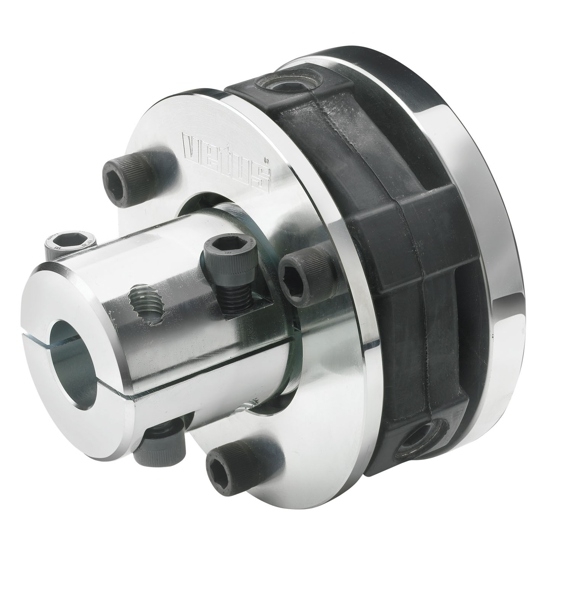

The BULFL0220 ensures optimum damping of vibrations. Excellent
alignment of the propeller shaft due to a special centering ring,
with ease of installation.
Specifications:
Product Data Sheet
Specifications:
| Type Bullflex | 2 |
|---|---|
| DIN 6270B = pleasure craft kW (HP)/100 shaft RPM | 1.6 (2.1) |
| DIN 6270A = commercial craft kW (HP)/100 shaft RPM | 0.9 (1.3) |
| Max. torque Nm DIN 6270B | 150 |
| Max. torque Nm DIN 6270A | 90 |
| Max. RPM at zero misalignment | 6500 |
| Max. RPM at 2 degrees misalignment | 3250 |

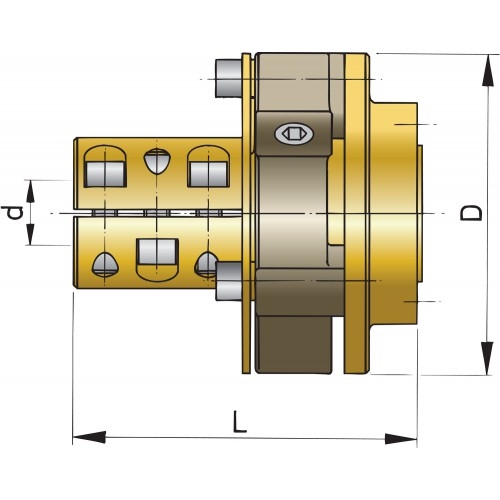

| D (mm) | 120 |
| L (mm) | 120 |
| Shaft diameter d (mm) | 20 |
Product Data Sheet
