Maxwell 1000 VWCLP Low Profile Hydraulic Vertical Windlass

#9087176
Warranty Badge - 3-Years
Ships May 30 - Jul 11
Calculate Shipping
Australia Wide
includes any items in cart
ONLY $5,169.00

Seen a lower price? Ask us to beat it

Add Items to Cart

💬 Report incorrect product information

Maxwell 1000 VWCLP Low Profile Hydraulic Vertical Windlass

Click on the image above to view full picture

More Views

The item you're looking at is currently unavailable or has limited stock, how about this one instead?
Maxwell 1000 Low Profile Chain Anchor Windlass Winch 6-10mm 12V 1000W

Maxwell 1000 Low Profile Chain Anchor Windlass Winch 6-10mm 12V 1000W
Why pay $4,459.00
ONLY $2,219.00
SAVE $2,240.00!
Details

Details

Designed for vertical handling, it has an independent capstan for retrieval of a secondary rope/chain rode or to assist with docking procedures.

Specifications:
Sense of rotation CW
Model Low profile
Maximum pull/lift (kg) 700
Static hold (kg) 1500
Chain short link (mm) 6-10
Line speed (normal working) (m) 18 m/min
Hydraulic pressure (bar) 100
Hydraulic flow (litres/minute) 20
Net weight, hydraulic (kg) 17

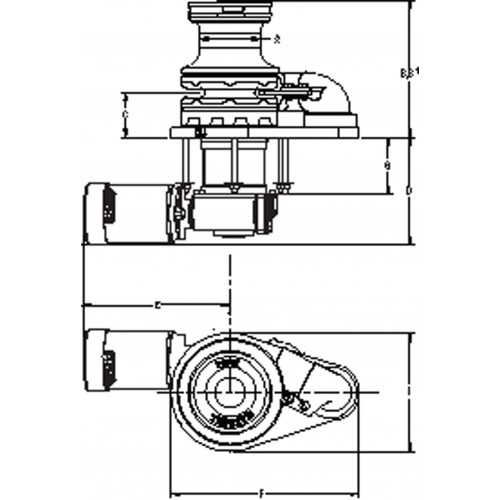

A (mm) 80
B (mm) -
B1 (low profile) (mm) 98
C (mm) 56
D (mm) 252
E (mm) 262
F (mm) 224
G (standard deck clearance) (mm) 100
G (extra deck clearance) (mm) 150
I (mm) 165

Product Data Sheet
