Maxwell 1000 VW Hydraulic Vertical Windlass
Maxwell 1000 VW Hydraulic Vertical Windlass
Deliver to:
New South Wales 2000,
AU
Estimated:
$169.99
Buy now, pay later & Finance Options
Find Local Store
Report incorrect product information
The item you're looking at is currently unavailable or has limited stock, how about this one instead?
$2,219
$4,529.00
SAVE $2,310.00!
The VW anchor winches are designed for traditional rope and chain
combination. Manual transfer of the rode to the chainwheel is
required.
Specifications:
Product Data Sheet
Specifications:
| Sense of rotation | CW |
|---|---|
| Model | Capstan |
| Maximum pull/lift (kg) | 700 |
| Static hold (kg) | 1500 |
| Chain short link (mm) | 6 - 10 |
| Line speed (normal working) (m) | 18 m/min |
| Hydraulic pressure (bar) | 100 |
| Hydraulic flow (litres/minute) | 20 |
| Net weight, hydraulic (kg) | 15 |

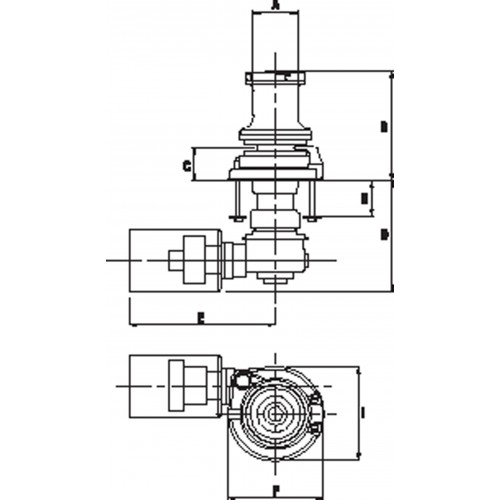

| A (mm) | 80 |
| B (mm) | 198 |
| B1 (low profile) (mm) | - |
| C (mm) | 59 |
| D (mm) | 252 |
| E (mm) | 272 |
| F (mm) | 165 |
| G (standard deck clearance) (mm) | 100 |
| G (extra deck clearance) (mm) | 150 |
| I (mm) | 165 |
Product Data Sheet
