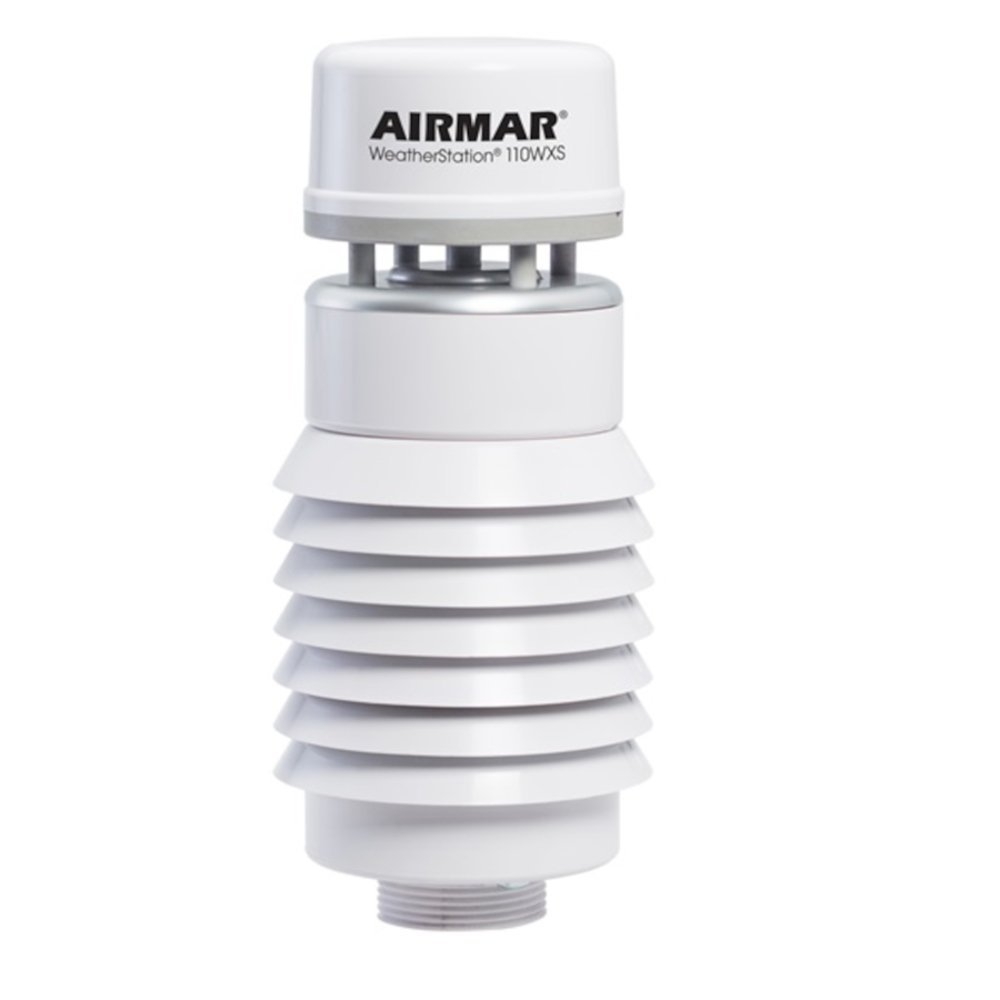

Airmar WS-110WXS-RS422 110WX WeatherStation with SolarShield and Relative Humidity

Solar-radiation Shield

The model 110WXS is Airmar's entry-level solution for land-based, stationary, weather-monitoring applications. A complete multisensor WeatherStation, the 110WXS features a solar-radiation shield for increased accuracy and stability of temperature and relative humidity readings. Ultrasonic measurement of wind speed and angle is virtually maintenance-free with no moving parts to wear out. Barometric pressure as well as calculated wind chill and heat index round out the critical parameters being measured. The durable, rugged housing is designed to be an integral component of a land-based station.

• Ultrasonic measurement of apparent wind speed and direction
• Solar-radiation shield provides stable, accurate temperature and relative humidity data
• Additional parameters: barometric pressure, calculated dew point, heat index, and wind chill
• Rugged, compact, UV-stabilized housing with no moving parts

• Brand: Airmar Technology
• Air Temp Accuracy: plus or minus 0.3 degreesC at 20 degreesC
• Air Temp Range: -40 to 80 degreesC (-40 to 176 degreesF)
• Air Temp Resolution: 0.1 degreesC
• Barometric Pressure Accuracy: plus or minus 0.5 hPa at 25 degreesC (or better)
• Barometric Pressure Range: 300 to 1100 hPa
• Barometric Pressure Resolution: 0.1 hPa
• Certs And Standards: CE, IPX4, RoHS, IEC61000-4-2, IEC60945, IEC60950_1C, IEC60950_22A, EN55022, EN55024, EN14982
• Comm Method: NMEA 2000
• Country of Origin: USA
• Display Connector: Cable Required
• Exterior Color: White
• Exterior Color: White
• Note: Cables sold separately
• Optional RH Accuracy: plus or minus 3% RH at 0 to 90% RH at 20 degreesC
• Optional RH Range: 0 to 100% RH
• Optional RH Resolution: 0.1% RH
• Recommend Use: Land-Based Stationary
• Refurbished: No
• RoHS Compliant: Yes
• Sensor Connector: 10WS
• True Wind Speed and Direction: Yes (Manual Alignment to North)
• Waterproof Rating: IPX4
• Weight: 300 g (0.7 lb.)
• Wind Direction Accuracy: plus or minus 3 degrees at 10 m/s
• Wind Direction Range: 0 degrees to 359.9 degrees
• Wind Direction Resolution: 0.1 degrees
• Wind Speed Accuracy: 5% at 10 m/s at 4 angles
• Wind Speed Calculations: User configurable damping
• Wind Speed Range: 0 to 40 m/s (0 to 89 MPH)
• Wind Speed Resolution: 0.1 m/s
• Humidity: Included
