Up (Bow & Stern Thrusters) ▲

VETUS Bow Thruster 60kgf 24V

#9086553
Warranty Badge - 3-Years
Ships May 30 - Jul 11
Calculate Shipping
Australia Wide
includes any items in cart
ONLY $3,729.00

Seen a lower price? Ask us to beat it

Add Items to Cart

💬 Report incorrect product information

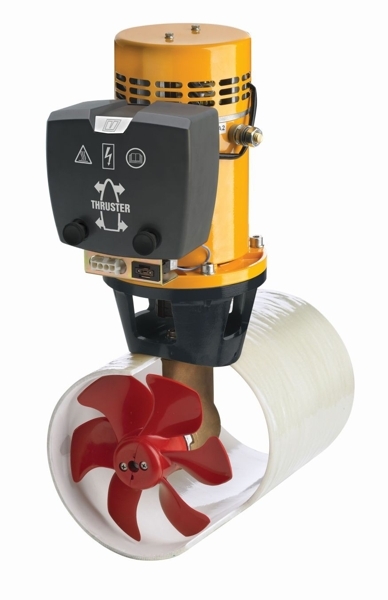

VETUS Bow Thruster 60kgf 24V

Click on the image above to view full picture

More Views

Details

Details

Advantages of VETUS bow thrusters
  • A single propeller creates less flow disturbance in the tunnel
  • The VETUS unique propeller blade design minimises cavitation noise
  • Spiral gears minimise transmission noise
  • The use of a flexible coupling between tail piece and motor eliminates vibration
  • All VETUS systems use a streamlined tail piece for optimum flow
  • A strong synthetic propeller eliminates corrosion and reduces weight
  • Systems are easy to install, supplied with clear installation and operation instructions
  • VETUS systems use a new line of high quality aluminium control panels which are interchangeable with older panels
  • All VETUS manoeuvring systems meet the EMC requirements

Specifications:
Voltage (V) 24 V DC
Ignition protection No
Thrust (N / kgf) 700/70
Power (kW) 3
Motor, reversible D.C. Yes
Internal tunnel diameter (mm) 185
Weight (kg) 22
Current consumption (A) 140
Continuous operating time (min) 5
Max. operating time (minutes) 5
Main fuse 'slow blow' (A) 100
Batteries 12 V, min./max. Ah 2 x 55 - 2 x 70
Battery cables, length pos./neg. cables (m/mm) 0-11 / 50
Battery main switch: model BATSW / type BPMAIN 250/24

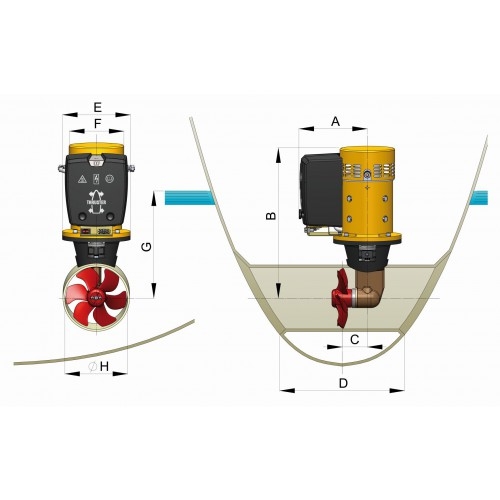

Size A in mm, see drawing 143,5
Size B in mm, see drawing 397
Size C in mm, see drawing 77
Size D min./max. in mm, see drawing 370 / 740
Size E in mm, see drawing 160
Size F, diameter in mm, see drawing 130
Size G min. in mm, see drawing 185
Size H, diameter in mm, see drawing 185

Product Data Sheet

Note: This listing is for the VETUS Bow Thruster ONLY. This is not a complete kit. Tunnel, data cable, control panel, fuse and fuse holder is still needed. Please note thruster packages are spec’d up individually to suit each customer’s needs. Please contact a Marine Deals sales specialist to ensure you get the complete and ideal components for your build. Contact our sales team via: 0800 633 257 / 09 281 3150 (NZ) or 1800 154 713 (AU)
