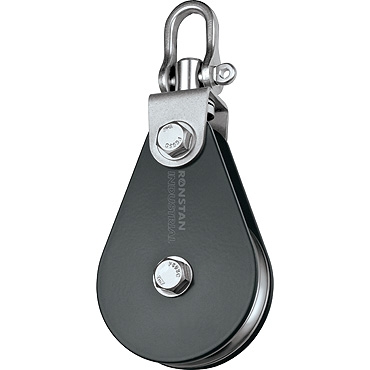

Ronstan RZ1700AW Single Block Aluminium Sheave Swivel Shackle Head
Ronstan RZ1700AW Single Block Aluminium Sheave Swivel Shackle Head
Deliver to:
New South Wales 2000,
AU
Estimated:
$0.00
Buy now, pay later & Finance Options
Find Local Store
Report incorrect product information
The item you're looking at is currently unavailable or has limited stock, how about this one instead?
Clevis pin shackle version can be ordered as RZxxxC eg.
RZ1700AWC)
Features:
Specifications:
Materials
- UV stabiised Acetal sheaves
- Grade 316 stainless steel side plate/cheeks, powder coated black
- Grade 316 stainless steel head, shackle and becket
- Fibre reinforced polymer rope cleats
- Grade 2205 stainless steel clevis pin
Related Items
| Product No. | Description |
|---|---|
| RF618H | 1/4' pin dia., Standard Dee Shackles, Screw pin with security wire hole, 7.9mm (5/16'), |
| RF814 | 5/16' pin dia., Standard Dee Shackles, Clevis pin and retainer ring, 7.9mm (5/16') pin , |
Features:
- Load rated
- Choice of fixed or swivel head models
- Durable, low friction Acetal ploymer sheave
- Head Bolt, single sheave models: 3/8' UNC, Head Bolt, multi sheave models: 5/16' UNC, Becket Bolt: 3/8' UNC
Specifications:
| Sheave diameter | 75 mm |
|---|---|
| Max. Rope diameter | mm |
| Max. Cable diameter | 8 mm |
| Pin diameter | 8 mm |
| M.W.L. | 1500 kg |
| B. L. | 3000 kg |
| Weight | 740 g |
