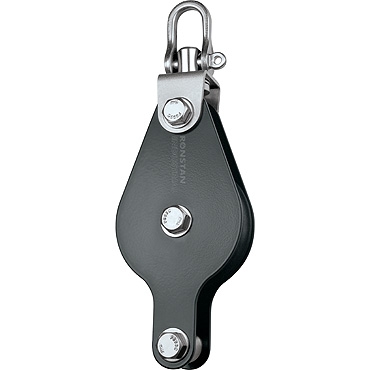

Ronstan RZ1703 Single Block 75mm Sheave with Becket and Swivel Shackle Head
Ronstan RZ1703 Single Block 75mm Sheave with Becket and Swivel Shackle Head
Deliver to:
New South Wales 2000,
AU
Estimated:
$0.00
Buy now, pay later & Finance Options
Find Local Store
Report incorrect product information
The item you're looking at is currently unavailable or has limited stock, how about this one instead?
Materials
- UV stabiised Acetal sheaves
- Grade 316 stainless steel side plate/cheeks, powder coated black
- Grade 316 stainless steel head, shackle and becket
- Fibre reinforced polymer rope cleats
- Grade 2205 stainless steel clevis pin
Related Items
| Product No. | Description |
|---|---|
| RF618H | 1/4' pin dia., Standard Dee Shackles, Screw pin with security wire hole, 7.9mm (5/16'), |
| RF814 | 5/16' pin dia., Standard Dee Shackles, Clevis pin and retainer ring, 7.9mm (5/16') pin , |
Features:
- Load rated
- Choice of fixed or swivel head models
- Durable, low friction Acetal ploymer sheave
- Head Bolt, single sheave models: 3/8' UNC, Head Bolt, multi sheave models: 5/16' UNC, Becket Bolt: 3/8' UNC
Specifications:
| Sheave diameter | 75 mm |
|---|---|
| Max. Rope diameter | 14 mm |
| Max. Cable diameter | mm |
| Pin diameter | 8 mm |
| M.W.L. | 1500 kg |
| B. L. | 3000 kg |
| Weight | 730 g |
