Durable and efficient

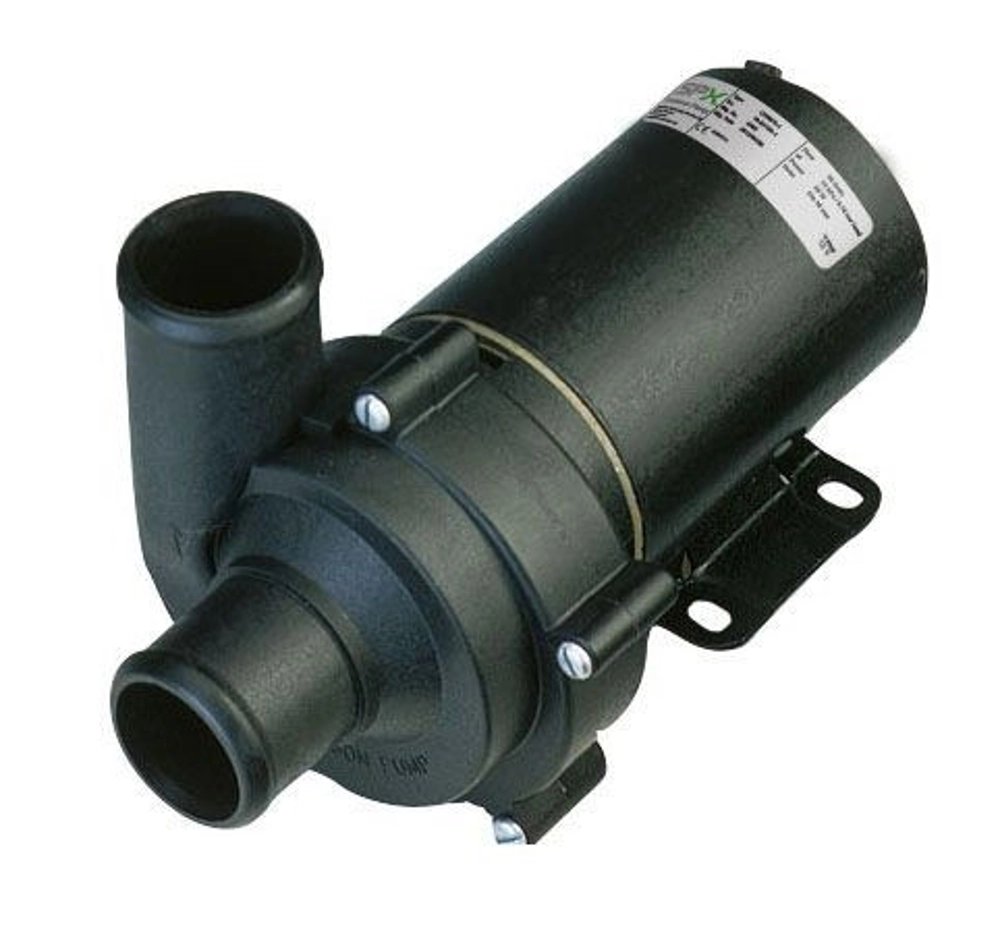

The Johnson C090P5 Circulation Pump is a mechanical sealed pump with a motor designed for continuous operation. Suitable for fresh water and ethylene glycol circulation.

Johnson C090P5 Circulation Pump Features:
  • Extra heavy duty construction
  • Motors designed for continuous operation
  • Mechanical seal
  • Designed for fresh water and ethylene glycol circulation

Johnson C090P5 Circulation Pump Specifications:
  • Part number: 10-24190-2 (C090P5-1 24V)
  • Pump body: PA66
  • Impeller: PA66
  • Shaft: Stainless steel
  • Seal (C090): Mechanical seal
  • Motor: 12 V or 24 V DC enclosed permanent magnet, ball bearing mounted for continuous operation
  • Shaft seal: Mechanical seal
  • Liquid: Tap water/glycol mixture; max. 60% glycol
  • Liquid temperature: Min. -30°C, Max. +100°C
  • Hose connection: 38mm dia. (1-1/2in)
  • Capacity 0.1 bar (3.4 ftH2O): (3 : 100 l/min at 0.1 bar (26.4 GPM)
  • Dimensions (LxWxH): 211 x 117 x 110mm (8.3 x 4.6 x 4.56in from baseplate)
  • Overall height: 116mm (4.8in)
  • Weight: 1.75 kg (3.8 lbs)

Product Data Sheet
