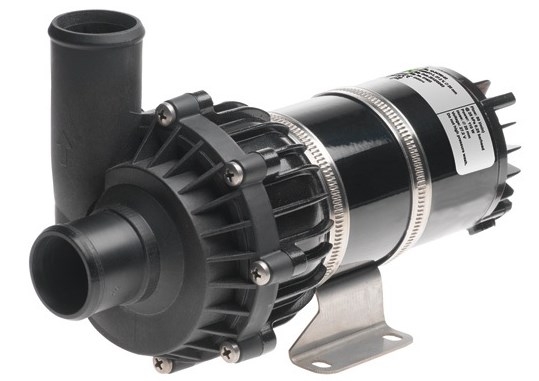

Johnson CM Series Circulation Pump
Deliver to:
New South Wales 2000,
AU
Estimated:
$0.00
Buy now, pay later & Finance Options
Find Local Store
Report incorrect product information
Heavy duty centrifugal pumps for fresh water circulation. A line of tough, durable and compact centrifugal pumps combining high flow rates with very low electrical current consumption.

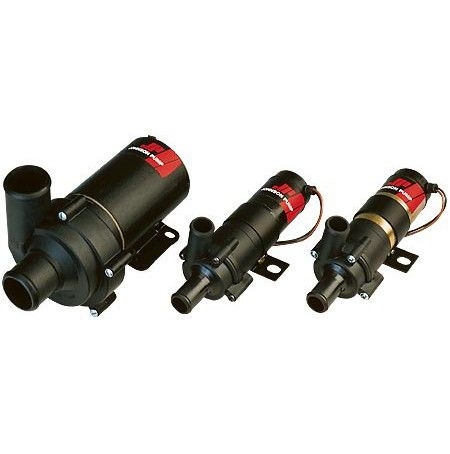

CM-series - a line of compact magnetic driven centrifugal pumps which combine high flow rates with very low electric current consumption. Suitable for fresh water, ethylene glycol and salt water circulation. CE-approved
Features:- Extra heavy duty construction
- Motors designed for continuous operation
- CM10 and CM30 magnetically driven
- Designed for fresh water handling
Specifications:
| Design Specifications | |
| Pump body: | Thermoplastic (PPA) (C090: PA66) |
| Impeller: | Thermoplastic (PPS) (C090: PA66) |
| Shaft: | Stainless steel |
| Seal (C090): | Mechanical seal |
| Magnet housing: | PSU |
| Motor: | 12 V or 24 V DC enclosed permanent magnet, ball bearing mounted for continuous operation |
| Liquid temperature: | -30 degreesC - +100 degreesC (-22 degreesF - 212 degreesF) |
Product Data Sheet
